Product Details:
|
Battery Cell: | LifePO4 Battery Cell | Cell Type: | 3.2V 280Ah |
---|---|---|---|
DC Rate Capacity: | 215.04KWh | Nominal Voltage: | 768V |
AC Rated Power: | 100KW | Cool Method: | Air Conditioning Cooling |
High Light: | 215KWh Distributed Energy Storage System,Comercial Park Energy Storage System,Solar Power Energy Storage System |
215KWH All-In-One ESS Distributed Industrial And Comercial Park Energy Storage System
215KWH ESS Description:
This ESS can provide peak shaving, grid frequency modulation, power capacity expansion, and standby power supply to reduce electricity costs.
It is the typical solution topology for distributed commercial and Industrial Energy Storage Systems. Our ESS enhances safety, simply use and smart control.

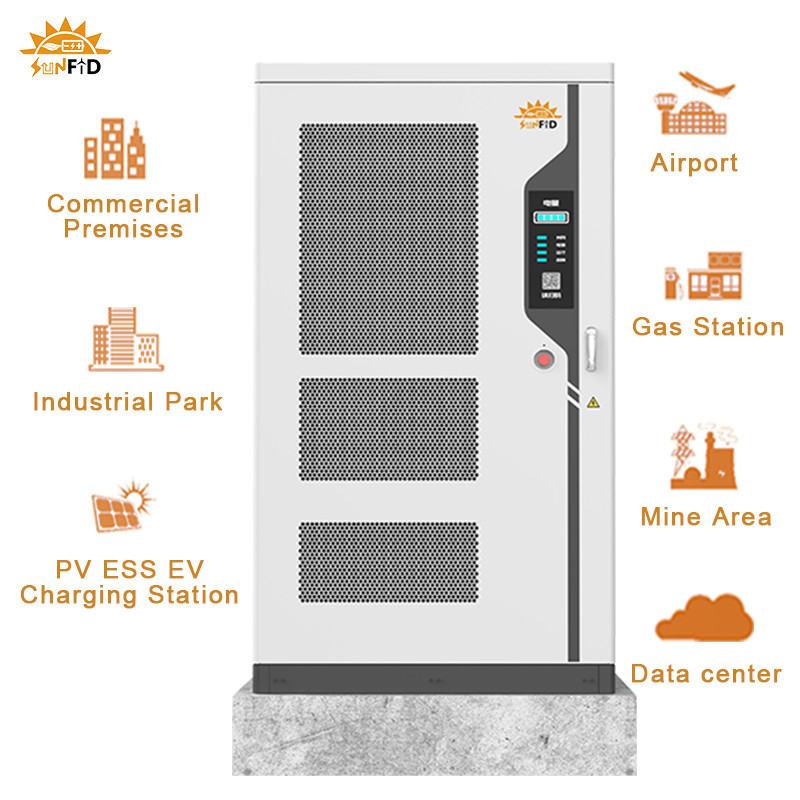

215KWH Comercial ESS Application Scenarios:
It can be flexibly deployed in various industrial and commercial parks, optical storage and charging stations, fast charging stations, hospitals, schools, mining areas, airports, gas stations, etc.
Product Parameters:
215KWH Energy Storage System |
||
DC Parameters |
Rated voltage |
768V |
Voltage Range |
672-864V |
|
Rated Capacity |
215.04KWH | |
System Configuration |
1P240S |
|
AC Parameters(Grid connected) |
Rated Power |
100W |
Wiring Mode |
3phase 4-wire /3 wire |
|
Rated Grid Voltage |
400V |
|
Grid Voltage Range |
320-460V |
|
Rated Current |
144A |
|
Rated Grid Frequency |
50/60HZ |
|
AC Parameters (Off-grid) |
AC Off-grid Voltage |
400V |
AC Off-grid Frequency |
50/60HZ |
|
System Parameters | Charge-discharge Rate | ≤0.5CP |
Thermal Management Mode | Air Conditioning Cooling | |
Fire Protection System | Type S aerosol/HFC-propane/perfluorohexanone | |
Anticorrosive Level | C3 (C4/C5 Optional) | |
Ingress Protection | IP54 | |
Dimension |
1400mm(L)*1200mm( W)*2200mm(H) |
|
Weight |
2300KG | |
Certificate | GB/T36276, UL9540A, IC62619,UN38.3 |
FAQ:
Q: What is the safety of this ESS?
A: First battery pack level safety: active warning, targeted and precise fire extinguishing; Second, Electrical safety: DC multi-stage fuse protection to minimize losses; Third, multi-level linkage protection, enhance system security.
Q: What is the DC side battery voltage of this product?

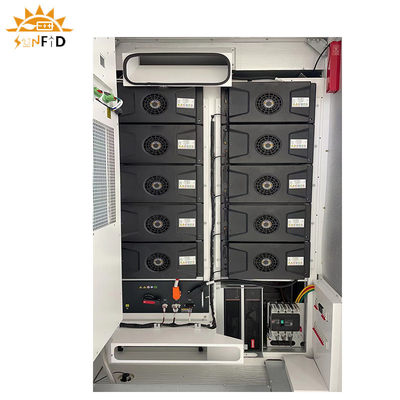

A: The rated voltage of the DC side battery is 768Vde. The battery cluster adopts a frame structure and the battery modules are fixed by bolts. The battery cluster includes 10 battery modules. The modules are connected in series and connected using copper bars. The copper bars are located in the module panel, which is safe and reliable.
