Product Details:
|
| Product: | LifePO4 Power Wall Mounted Battery | Battery Type: | 48V 200AH Lithium Ion, LiFePO4 |
|---|---|---|---|
| Nominal Voltage: | 51.2 Volt | Capacity: | 200AH |
| Installation Method: | Wall Mounted Battery | Compatible: | Inverter Of Growatt, Solax, Solis,DEYE,Sungrow, Sofar, |
| High Light: | LifePO4 Power Wall Mounted Battery,10KWH Powerwall Lithium Battery,10KWH Solar Battery Backup |
||

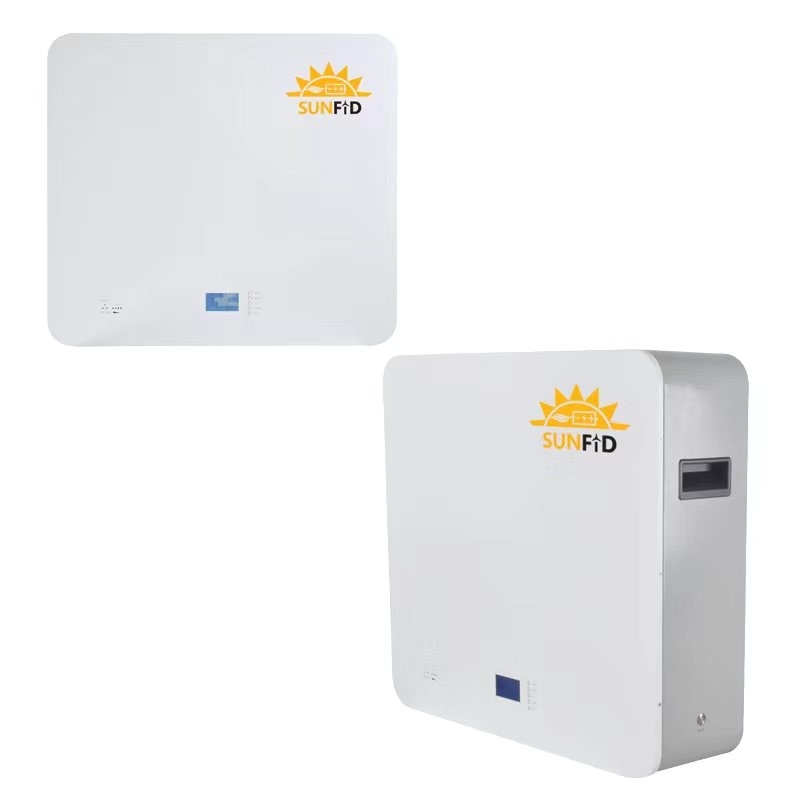

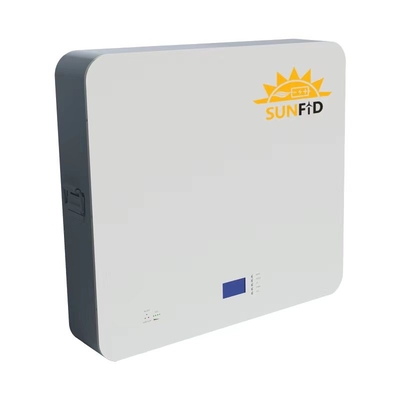

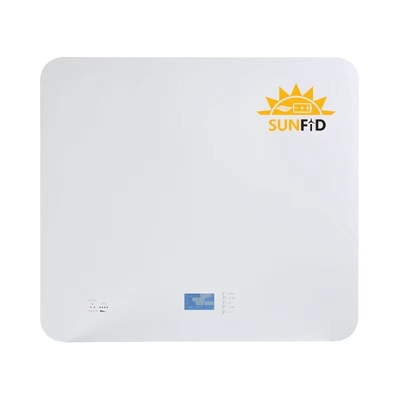

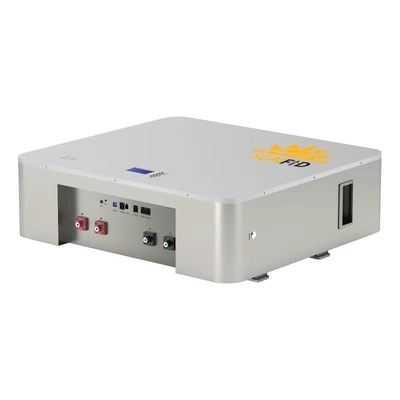

Power Wall Lithium Battery 10KWH 51.2V Solar Home Batteries Back Up Power System Battery
Powerwall Lithium Battery 10KWH 51.2V Solar Home Batteries Back Up Power System Battery
Solar LifePO4 Battery Description:
Solar Energy System Power wall Home LiFePO4 Lithium Battery 51.2V 200Ah 10KWh
1. Lifepo4 battery pack is a new environmentally friendly backup power system
2. Short-time and high-rate discharge scenarios.
3. Lithium-ion battery is configured with high-performance BMS. BMS is improved with a balancing function and dual protection
4. Low internal resistance and high, flat voltage characteristics during strong current discharge
5. Grade A cells, Longer cycle life, full inspection before shipment.
10KW Battery Application:
Solar Home Power Energy System, Wind Power System, Power Blackout House
Power Wall Mount LifePO4 Battery Specifications:
| Item Name | 51.2V 200AH, 48V200Ah Power Wall Solar Power |
| Battery Type | LiFePO4 |
| Energy | 10240Wh |
| Rated Capacity | 200Ah |
| Rated Voltage | 51.2V |
| Battery cell | Square / Cube / Prismatic / Primary / Pouch 3.2V 100AH or 200AH LiFePO4 Lithium iron phosphate battery |
| Configuration (*S*P) | 16S1P |
| Discharge Cut-off Protect Voltage | 40V |
| Charge Cut-off Protect Voltage | 58.4V |
| Max. Charge Current | 100A |
| Max. Discharge Current | 100A |
| Communication Port | CAN, RS485 |
| Compitable Inverter Brand | SMA, Growatt, Solax, Solis, DEYE, Sungrow, Sofar, Voltronic, Goodwe off-grid or hybrid inverter, etc. |
| Parallel | Max. 15 units in Parallels to get 150kwh. |
| Cycle life | 6000-8000 times |
| L*W*H (mm) | 673*618*193 |
| Environment | Indoor |
| Mounting options | Wall mount |
| Discharge Temperature (℃) | -10℃~+60℃ |
| Charge Temperature (℃) | 0℃ ~+45℃ |
FAQ:
Q: Wall-mount version is only a vertical wall-to-wall installation? Can we lay it on its side?
A: This battery can be placed flat or perpendicular to the wall, but not on the side. In case of normal use, we support the warranty
