Product Details:
Place of Origin: CHINA
Brand Name: SUNFiD
Certification: CE,FCC,MSDS,ROHS,UN38.3
Model Number: SFD-HS-ESA35E
Payment & Shipping Terms:
Minimum Order Quantity: 50pcs
Price: Negotiable Price
Packaging Details: Hard Paper Carton with Foam From Top and Button
Delivery Time: 10-30 days
Payment Terms: L/C, T/T, Western Union

7.5KWH Residential Energy Storage System 5KWH All In One Lithium Batteries

Description
Voltage: 51.2V Capacity: 5KWh / 7.5KWh
AC Output: 3500W / 5000W Output Voltage: 220V / 230V /240V
Output Current: 13A /25A Dimensions(W/D/H): 585*606*230mm / 743*650*230mm
High Light:

7.5KWH Residential Energy Storage System

,

Residential Energy Storage System 5KWH

,

3500W residential solar battery storage

Residential Energy Storage System 5KWH 7.5KWH All In One lithium Batteries Solar Energy System

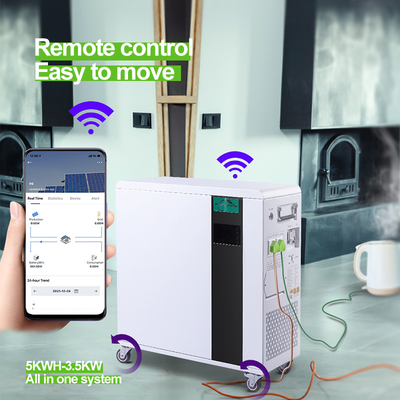

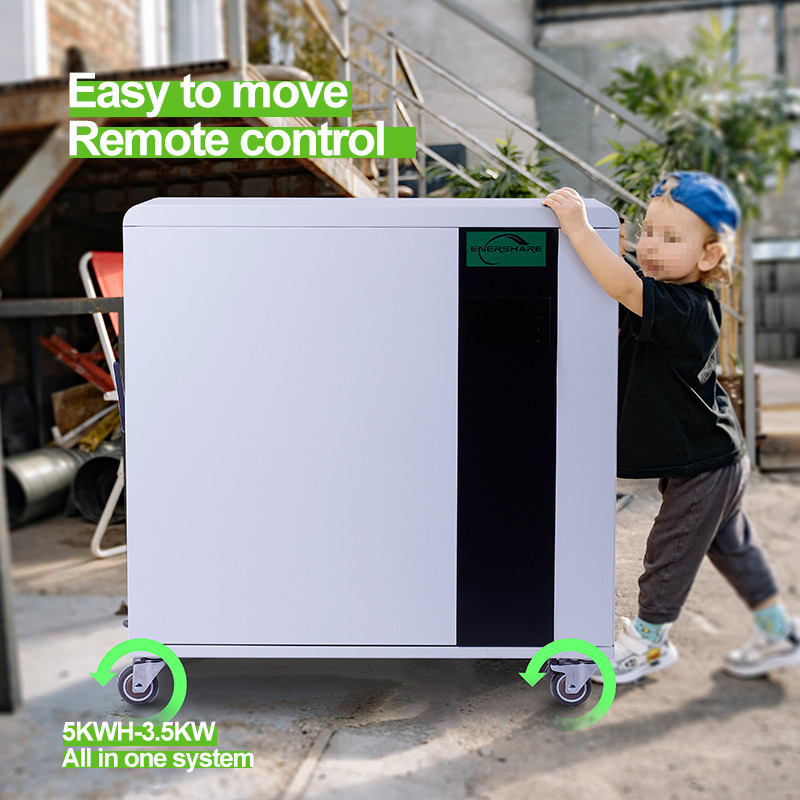

1.Easy to move;
2.Remote control;

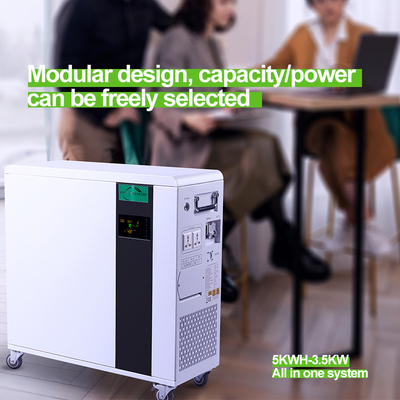

3.Modular design, capacity/power can be freely selected;

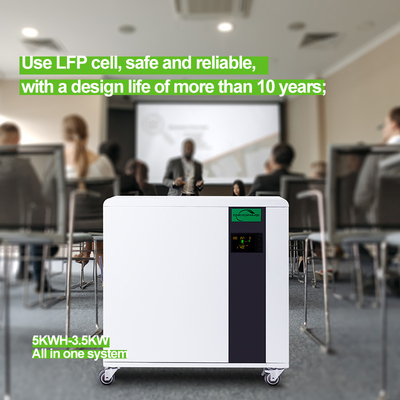

4.Use LFP cell, safe and reliable, with a design life of more than 10 years.



Specification:



Model OK-HS-ESA35E OK-HS-ESA50E OK-HS-ESA30U
Battery
Nominal Voltage 51.2V
Voltage Range 45~57.6V
Capacity 5kWH/7.5kWH
Max.discharge rate 0.7C
Max.charge rate 0.5C
Battery Type Li-ion(LFP)
AC Output
Rated Power 3500W 5000W 3000W
Surge Power 7000W 10000W 6000W
Output Voltage 220/230/240Vac 100/110/120Vac
Output Current 13A 25A 30A
Rated Frequency 50/60Hz
Output Wave Pure Sine Wave
AC Input
AC Input Voltage Range 65~140Vac
AC Input Frequency 50/60Hz
Max AC Charge Curren 30A(0~60A Adjustable
Operating Conditions
Operating Temperature 0~55℃
Humidity 5%~95%
Dimensions(W/D/H)mm 585*606*230mm 743*650*230mm 585*606*230mm
Weight 58kg 74kg 58kg
Enclosure Protection Rating IP20
Communication WIFI/RS485
