Product Details:
|
| Battery Type: | Lifepo4 Lithium Battery | Controller Type: | MPPT |
|---|---|---|---|
| Load Power (W): | 3000w | Output Voltage (V): | 100-240V |

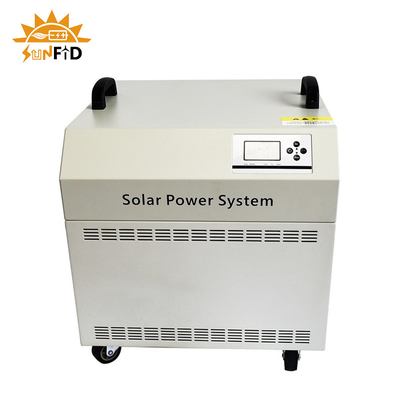

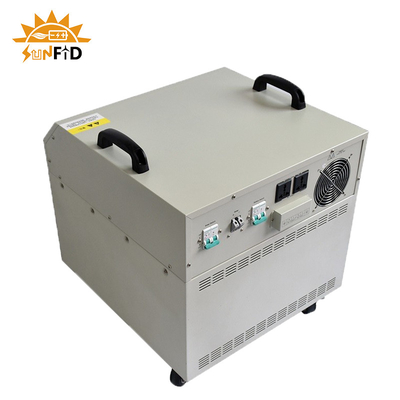

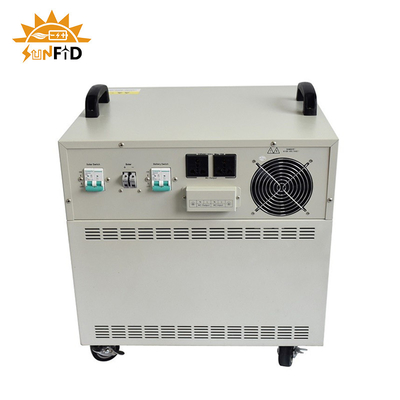

| Product Name: | 3000W Inverter 25.6V 160Ah 5kwh Solar Energy Storage System | Size: | 555*515*820mm |
| High Light: | 3000w Solar Generator Lithium Battery,Solar Generator Lithium Battery Inverter,4000WH lithium battery power generator |
||
Solar Generator Lithium Battery 3000w inverter 4000WH lifepo4 lithium battery off grid 1000 watt solar energy system
Specifications:
| Item | Specification | |
|
AC Charging |
Input Voltage | 100V-240V |
| Frequency | 50-60Hz SineWave | |
| Short Circuit | Circuit Breaker Protection | |
|
Battery |
Battery Type | Standard Battery is LifePo4 |
| Battery Capacity | 25.6V/160Ah | |
| Nominal Energy | 4000WH | |
| Protection Function | PCM with Overcharge, Over discharge, Over current , short-circuit and Overheat, etc. | |
|
System Output |
AC Output Voltage | 220V ac /110V ac ±5% / 50Hz/60Hz ±1% |
| Inverter | 3000W with LCD | |
| Max AC Output Power | 3000W | |
| 5VDC USB Output | N/A | |
| 12VDC DC Output | N/S | |
| Power Factor | ≥0.8 (＞30% Load) | |
| PV-AC Conversion | Typical: 5ms and Max. is 8ms | |
| Max. Efficiency | 84% | |
| Over-Load Protection | 100%～110% Alarm, 110%～125% @255s Shutdown, 125%～150%@60s Shutdown |
|
| External Short- Circuit Protection | Auto. Shutdown | |
|
Charging System |
AC-Charger | 54.6V/10A |
| Solar Panel (Option) | 60-100V/50A(MAX) | |
|
Other |
Working Temp. Range | -20℃～50℃ |
| Working Humidity | 10%～90% | |
| Protection Class | IP22 | |
| Product size (L×W×H) /mm | 555*515*540mm | |
| N./G. Weight(Kg) | 55/58 | |
| Noise | ≤50dB | |
|
Accessory |
Stanard Accessory | 1. 1pc product 2. Standard AC charge cable 3. User maual |
| Optional Accessory | 1. Solar Panel(Quotation is not included) | |
