Product Details:
|
| Product Name: | Powerwall System Battery | Energy: | 5KWH |
|---|---|---|---|
| Battery Capacity: | 51.2V 100Ah LiFePO4 Battery | Mounting Options: | Wall Mounted |
| Charge & Discharge Current: | 100A | Dimension: | 480*170*650mm |
| High Light: | 51.2V 48V LiFePO4 Solar Batteries,5kwh Wall Mounted Lithium Battery,51.2V 48V Wall Mounted Lithium Battery |
||

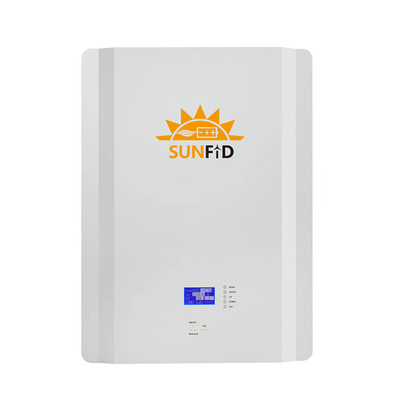

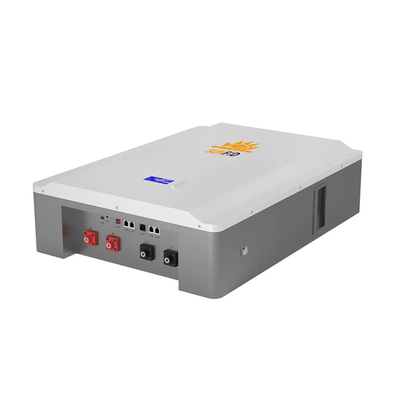

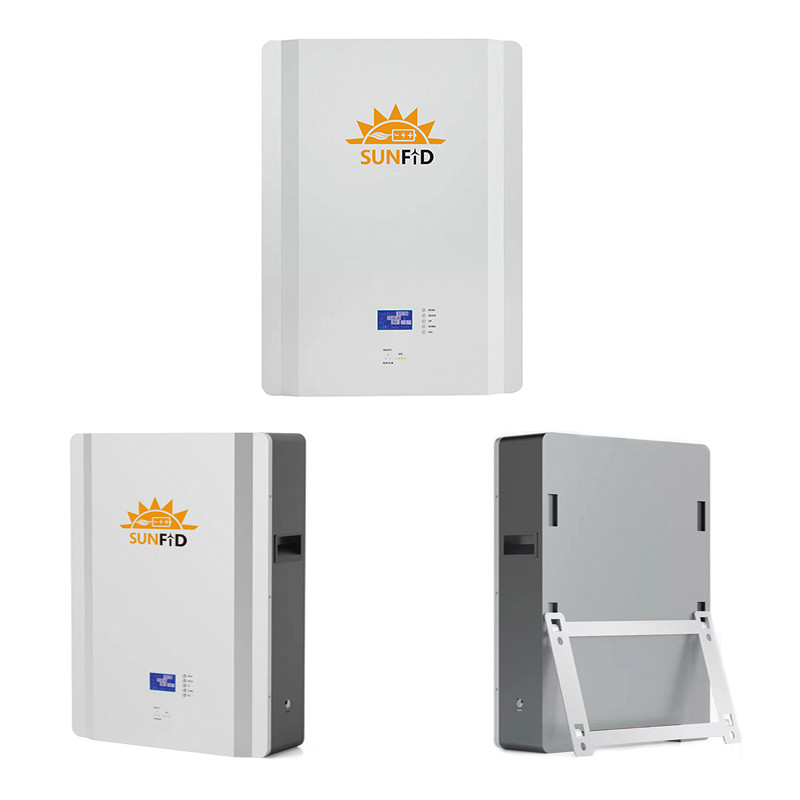

Power Wall Mounted Lithium Battery Solar ESS 5kwh 51.2V 48V LiFePO4 Solar Batteries
Wall mounted Lithium Battery Features:
1. Smart: Each module is equipped with an independent BMS system
2. Modular: Compact size and light weight
3. Safe: Safe lithium iron phosphate battery cell
4. Longer lifetime: 5000cycles, 10 year design life
5. Design: LCD screen, convenient setting buttons, bluetooth monitor on smartphone
6. Installation: Cable & Accessories are ready
7. Parallel: Support installed in parallel connection
51.2V100A 5KWH Power mounted Battery Application:
Widely used in Solar Systems for residentail and commercial use. With more than 5000times deep cycle, up to 90% DOD and phosphate battery Cell.
Powerwall 51.2V100A Solar Energy Battery Specifications:
| Model | OK-BOX6 |
| Battery Type | LiFePO4 |
| Energy | 5KWh |
| Rated Capacity | 100Ah |
| Rated Voltage | 51.2 Volt |
| Battery cell | Square / Cube / Prismatic / Prismary / Pouch 3.2V 96Ah 100AH 102Ah 105Ah Li ion battery LiFePO4 Lithium iron phosphate battery |
| Configuration (*S*P) | 16S1P |
| Disharge Cut-off Protect Voltage | 40V |
| Charge Cut-off Protect Voltage | 58.4V |
| Max. Charge Current | 100A |
| Max. Discharge Current | 100A |
| Communication Port | CAN, RS485, RS232 |
| Compitable Inverter Brand | DEYE, Luxpower, Megarevo, SMA, Growatt, Solax, Solis,Sungrow, Sofar, Voltronic, Goodwe, Must off-grid or hybrid inverter etc. |
| Parallel | Max. 15 units in Parallels to get 74kwh. |
| Cycle life | 6000-8000 times |
| L*W*H (mm) | 480*170*650mm |
| Net Weight (KG) | 50KG |

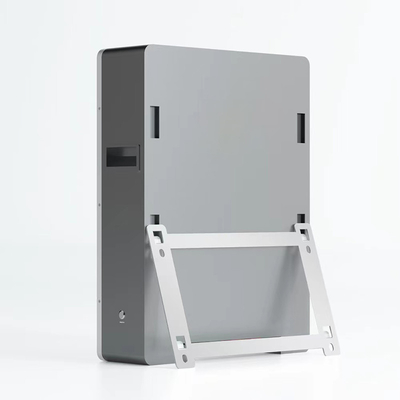

| Mounting options | Wall mounted |
| Discharge Temperature (℃) | -10℃~+60℃ |
| Charge Temperature (℃) | 0℃ ~+45℃ |
| Storage Conditions |
–20°C to 30°C (–4°F to 86°F) Up to 95% RH, non-condensing State of Energy (SoE): 25% initial |
| Maximum Elevation | 3000 m (9843 ft) |
Solar Battery FAQ:
1. What is a solar battery and how does it work?
The middle of the day also happens to be when homes use the least amount of electricity. Because of this, your solar panels will produce a lot of electricity in the afternoon that you won’t need.
Solar powerwall batteries are able to store that extra solar energy so you can use it later on. This helps to power your home on clean renewable energy from your solar panels, even when they aren’t producing electricity.
