Product Details:
|
| Product: | 8200W Hybrid MPPT Solar Inverters | Rated Power: | 8200W |
|---|---|---|---|
| Solar Charging Current: | 160A | On-grid Output Current: | 35.6A |
| MPPT Voltage: | 90VDC~450VDC | Application: | Home Solar Energy System |
| High Light: | 8200W Pure Sine Solar Inverter,Hybrid Pure Sine Solar Inverter,ROHS MPPT Off Grid Inverter |
||

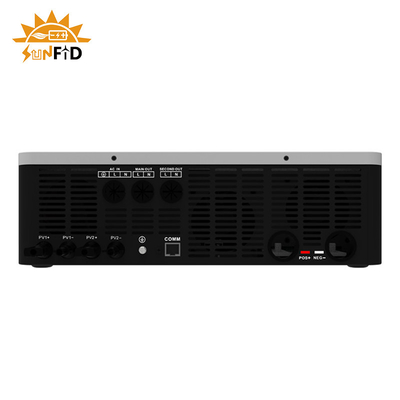

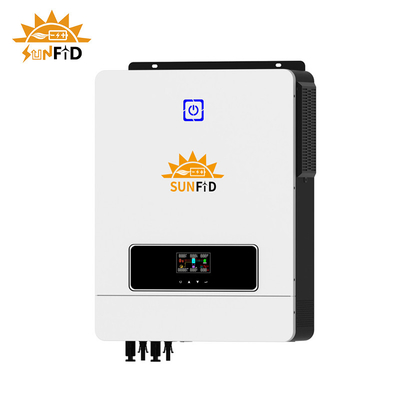

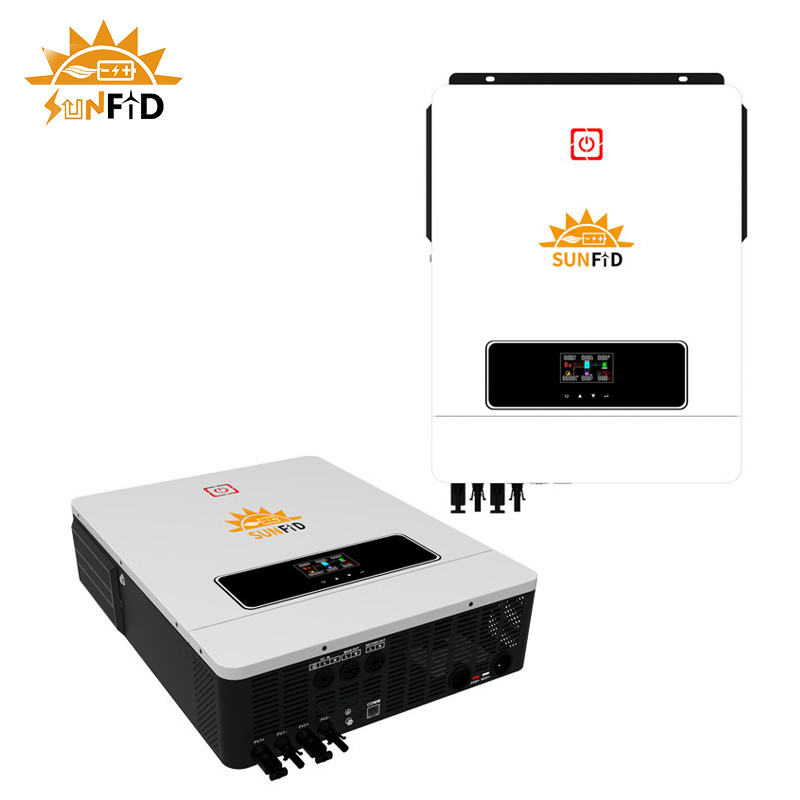

8200W Hybrid Pure Sine Solar Inverter MPPT Solar Charger Off-Grid Inverter For Solar Energy Storage System
8.2KW Hybrid Solar Inverter MPPT Solar Charger
Features:
8200W Solar Inverter MPPT Solar Charger Parameters
| Model | IHS-80B48160-A500S1 |
| Phase | 1-Phase |
| Maximum PV Input Power | 6200W |
| Rated Output Power | 8200W/8200VA |
| Maximum Solar Charging Current | 160A |
| GRID-TIE OPERATION | |
| PV Input(DC) | |
| Nominal DC Voltage/Maximum DC Voltage | 360VDC/500VDC |
| Start-up Voltage/Initial Feeding Voltage | 90VDC/120VDC |
| MPPT Voltage Range | 90VDC~450VDC |
| Number Of MPPT Trachers/Maximum Input Current | 1/27A |
| GRID OUTPUT(AC) | |
| Nominal Output Voltage | 200/230/240VAC |
| Output Voltage Range | 195.5~253VAC |
| Nominal Output Current | 35.6A |
| Power Factor | >0.99 |
| Feed-in Grid Frequency Range | 49～51±1Hz |
| EFFICIENCY | |
| Maximum Conversion Efficiency(DC/AC) | 98% |
| TWO LOAD OUTPUT POWER(V2.0) | |
| Full Load | 8200W |
| Maximum Main Load | 8200W |
| Maximum Second Load(Battery mode) | 2733W |
| Main Load Cut Off Voltage | 44VDC |
| OFF-GRID OPERATION | |
| AC INPUT | |
| AC Start-up Voltage/Auto Restart Voltage | 120-140VAC / 180VAC |
| Maximum AC Input Current | 40A |
| BATTERY MODE OUTPUT(AC) | |
| Nominal Output Voltage | 48VDC |
FAQ:
Q1: How much power solar energy systems can provide?
A1: Home solar energy systems 3-100KW, and we also provide higher wattage commercial and industrial solar power systems.
Q2: Can you offer On Grid and Off Grid solar power systems?
A2: Yes, we produce On-Grid solar power systems, Off-grid solar power systems, and also provide Hybrid solar power systems.
Q3: Who is your service customer?
A3: Individual client for house solar systems; distributor; importer and solar energy system installer.
