Product Details:
|
| Item: | 10KW Hybrid Solar Power Inverter | Power: | 10.2KW |
|---|---|---|---|
| Output Type: | Dual Outputs | Output Waveform: | Pure Sine Wave |
| Display: | LCD | Application: | Home/solar System |
| High Light: | 10KW Pure Sine Wave Solar Inverter,Hybrid Pure Sine Wave Solar Inverter,LCD Pure Sine Wave Power Inverter |
||

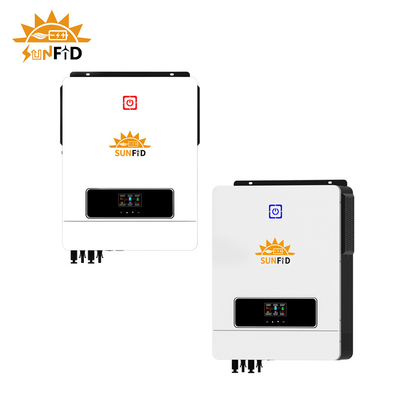

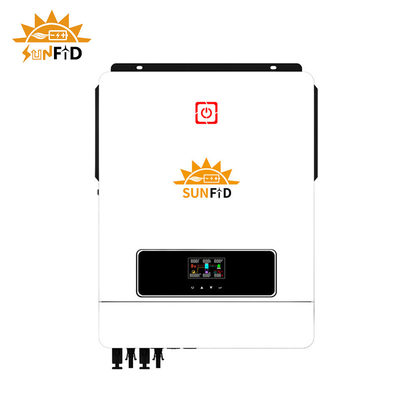

10KW Hybrid Pure Sine Wave Solar Inverter For Home Solar Energy Storage System
10KW Hybrid Pure Sine Wave Solar Inverter
This is a multi-function inverter/charger, combining functions of inverter, solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.
Features:
10KW Solar Inverter Parameters
| Model | IHS-1KB48180-A500S1 |
| Phase | 1-Phase |
| Maximum PV Input Power | 6500W |
| Rated Output Power | 10200W/10200VA |
| Maximum Solar Charging Current | 180A |
| GRID-TIE OPERATION | |
| PV Input(DC) | |
| Nominal DC Voltage/Maximum DC Voltage | 360VDC/500VDC |
| Start-up Voltage/Initial Feeding Voltage | 90VDC/120VDC |
| MPPT Voltage Range | 90VDC~450VDC |
| Number Of MPPT Trachers/Maximum Input Current | 1/27A |
| GRID OUTPUT(AC) | |
| Nominal Output Voltage | 200/230/240VAC |
| Output Voltage Range | 195.5~253VAC |
| Nominal Output Current | 44.3A |
| Power Factor | >0.99 |
| Feed-in Grid Frequency Range | 49～51±1Hz |
| EFFICIENCY | |
| Maximum Conversion Efficiency(DC/AC) | 98% |
| TWO LOAD OUTPUT POWER(V2.0) | |
| Full Load | 10200W |
| Maximum Main Load | 10200W |
| Maximum Second Load(Battery mode) | 3400W |
| Main Load Cut Off Voltage | 44VDC |
| OFF-GRID OPERATION | |
| AC INPUT | |
| AC Start-up Voltage/Auto Restart Voltage | 120-140VAC / 180VAC |
| Maximum AC Input Current | 50A |
| BATTERY MODE OUTPUT(AC) | |
| Nominal Output Voltage | 48VDC |
