Product Details:
|
| Product: | 5KW Hybrid MPPT Solar Inverters Split-phase | Rated Power: | 5000W |
|---|---|---|---|
| PV Input Power: | 7.5KW | AC Output Current: | 24A |
| MPPT Voltage: | 120VDC~500VDC | Application: | Home Solar Energy System |
| High Light: | 5000W Split Phase Inverters,48V Split Phase Inverters,ESS Hybrid MPPT Solar Inverter |
||

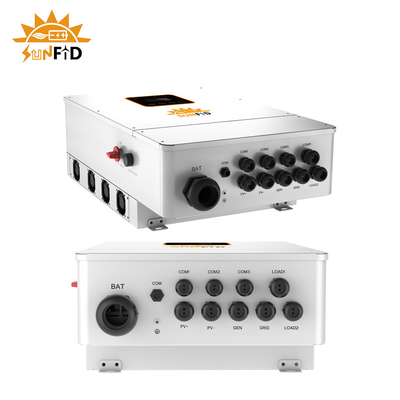

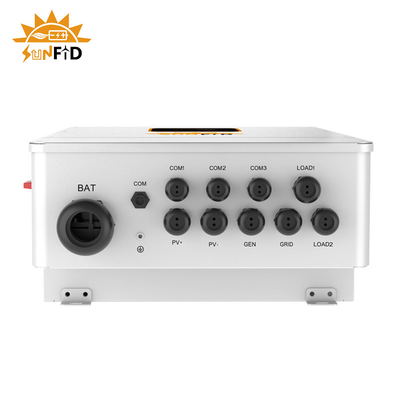

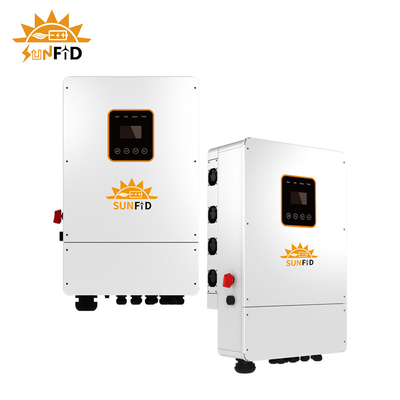

5000W American Hybrid Inverter ESS Split-phase Inverters Low Voltage 48V Support Paralle Inverter
5KW Hybrid Solar Inverter MPPT Solar Charger
low-voltage North American Hybrid inverter can be widely used in various home storage application environments.
Combined with a smart display, it makes operation and maintenance easier.
Features:
5000W Solar Inverter MPPT Hybrid Inverter Parameters
| Technical specification | IHB-5KL48120-A500S |
| Input (PV) | |
| Max.Power(KW) | 7.5 |
| Max. DC voltage (V) | 500 |
| MPPT voltage range(V) | 120~500 |
| Max.Input current of single MPPT(A) | 12 |
| MPPT tracker/strings | 4/1 |
| AC output | |
| Rated output power(kVA) | 5 |
| Max. output current(A) | 24 |
| Ac output voltage(V) | 120/240(split phase), 208(2/3 phase),230 (single phase) |
| Frequency (Hz) | 50/60 |
| PF | 0.8lagging-0.8leading |
| THDi | < 3% |
| Battery | |
| Battery voltage range(V) | 40~58 |
| Max. charge/discharge current(A) | 120/120 |
| Communication interface | CAN/RS485 |
| EPS Output | |
| Rated power (kVA) | 5 |
| Rated output voltage(V) | 120/240 (split phase), 208 (2/3 phase),230 (single phase) |
| Automatic switching time(ms) | ＜20 |
| General data | |
| Dimensions | 430*220*710 mm |
FAQ:
Q1: How much power solar energy systems can provide?
A1: Home solar energy systems 3-100KW, and we also provide higher wattage commercial and industrial solar power systems.
Q2: Can you offer On Grid and Off Grid solar power systems?
A2: Yes, we produce On-Grid solar power systems, Off-grid solar power systems, and also provide Hybrid solar power systems.
Q3: Who is your service customer?
A3: Individual client for house solar systems; distributor; importer and solar energy system installer.
