Product Details:
|
| Item Name: | 6000W Pure Sine Power Inverter | Nominal Power: | 6000W |
|---|---|---|---|
| Output Type: | Single, Dual | Display: | LCD/LED Optional |
| Inverter Type: | Low Frequency Power Inverter | Net Weight: | 38 KG |
| Communication: | RS-232/USB/SNMP(custom-made) | ||
| High Light: | 6000W dc to ac pure sine wave power inverter,dc to ac pure sine wave power inverter 24V,48V pure sine wave dc to ac inverter |
||

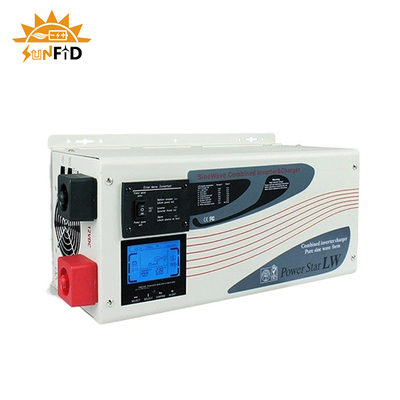

Pure Sine Wave Power Inverter 6000W DC To AC 24V/48V 120/240V Power Star Inverter With LCD Display
Main Features:
1. Peak power is three times of rated power.
2. Microprocessor control guarantees high reliability.
3. Automatically transfer between battery and line modes.
4. Fast and powerful charger with 35A and 70A.
5. Remote control function.
6. Protection against: Over load, over temperature, over charging, low battery
Product Application
It widely applied in wind generator, Solar power system, house, vehicle, ship, and places where lack of city power, mobile electricity work and telecommunications device, launch Station, Emergency EPS.
Specification:
| Model | OKINW6000 | |
| AC Input | Nominal Power | 6000W |
|
Norminal Voltage |
230VAC |
|
| Acceptable Voltage |
194-243VAC/164-243VAC(wide mode) |
|
| Line low Transfer |
85V±4% OR 184±4% (154 wide mode±4%) |
|
| Frequency | 50Hz or 60Hz (auto sensing) | |
| AC Output | Phase &waveform | Pure Sine Wave(bypass mode sync to input) |
| Voltage |
110/120/130VAC OR 220/230/240VAC±10%rms (bypass mode sync to input) |
|
| Voltage Regulation | ±10%rms(bypass mode sync to input) | |
| Frequency | 50Hz±0.3Hz(bypass mode sync to input) | |
| Peak Power | 3 times of rating power | |
| DC Input | Battery Voltage | 24V/48V |
| Minimum Start Voltage | 10V for 12V, 20V for 24V, 40V for 48V | |
| Max Charging Current |
20A/35A/50A/75A/90A(According to the inverter model) |
|
| Transfer Efficiency | Line Mode | >95% |
| Battery Mode | >88% | |
| Power saver | Available when the load is less than 25 Watts | |
|
System Parameter |
Audible Alarm | Sounding when the heatsink’s tem is over 105℃ and shutdown after 30 seconds. |
| Protections | low battery/ over charging /over temp/over load | |
| Communications | RS-232/USB(custom-made) | |
| Enviromental | Operating Environment | 0-40℃,0-90%℃ RH(non-condensing) |
| Net Weight (KG) | 45.5 | |
| Dimension(LxWxH) |
660×225×200mm |
|
FAQ:
Q1.Can you accept OEM, ODM service?
A:Yes, we accept OEM,ODM service.
Q2: What's the different between inverter and solar inverter?
A: Inverter is only accept AC input, but solar inverter not only accept AC input
but also can connect with solar panel to accept PV input, it more save power.
Q3.When the product have problem, how to solve it?
A:We have a professional after-sales team, in case of any problems, first contact us to help you solve,we have a 24 months warranty.We will track product usage until you are satisfied.
Q4. What kind of material of transformer?
A. 100% copper which has a long sevice life and higher efficiency.
