Product Details:
|
| Warranty: | 1year | Place Of Origin: | Guangdong, China |
|---|---|---|---|
| Brand Name: | OKTANMAX | Model Number: | OKUPS650VA |
| Phase: | Single Phase | Protection: | Overvoltage |
| High Light: | CE 6000mAh UPS Lithium Battery,CE UPS Lithium Battery 650VA,650VA CE UPS Lithium Battery |
||

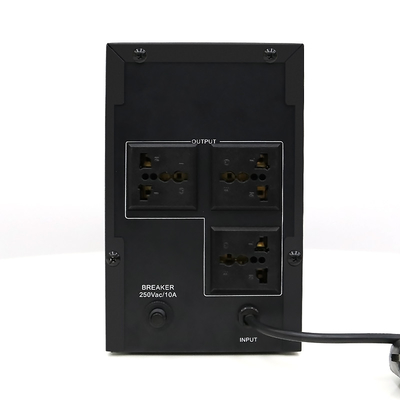

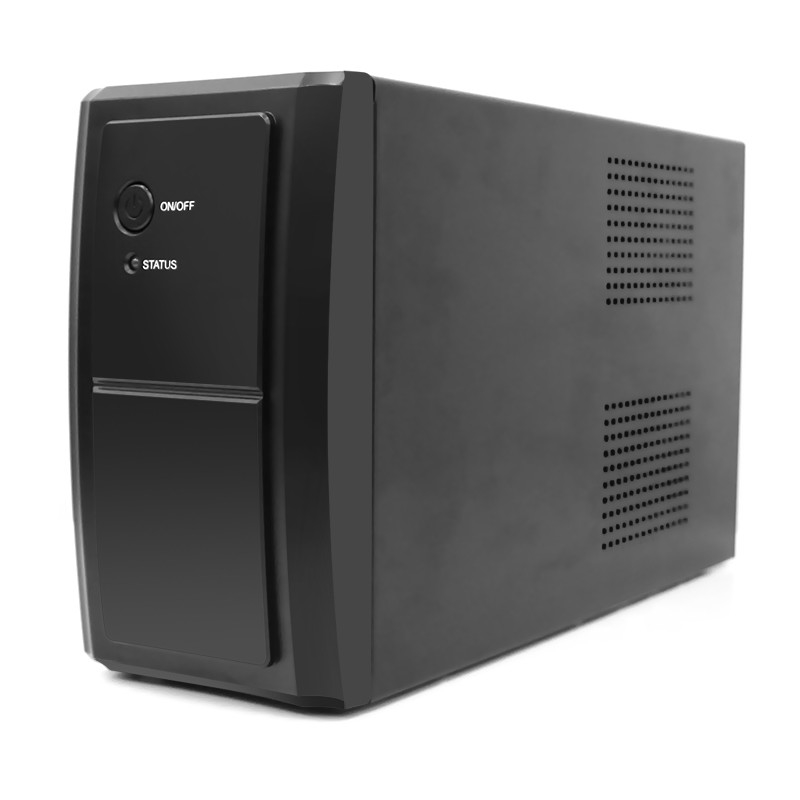

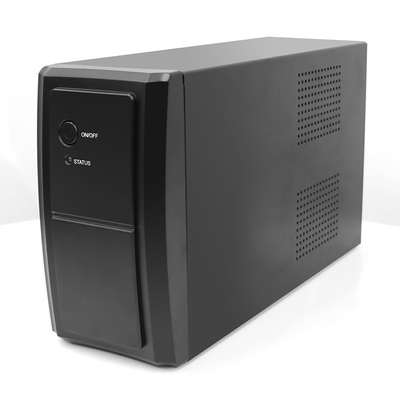

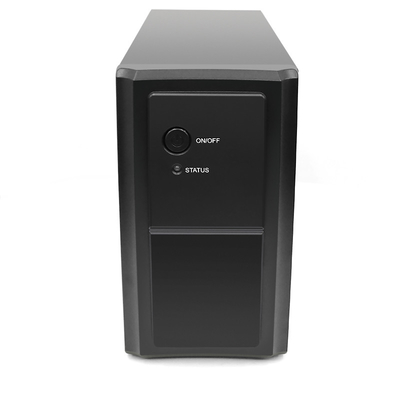

UPS Lithium Battery UPS power LED Display 6000mAh Lithium Battery UPS 650VA
Overview
Quick Details
Warranty: 1year
Place of Origin: Guangdong, China
Brand Name: OKTANMAX
Model Number: OKUPS650VA
Phase: Single Phase
Protection: Overvoltage
Weight: 3.7kg
Type: STANDBY
Application: COMPUTER
Product name: Lithium UPS 600va
transfer time: 4-8ms
Wave Form: Modified Sine Wave
Capacity: 60% of rated power
Display: LED/LCD optional
Input voltage: 110v/220v
chargecurrent: 1A
charge period: 8 hours to be full
warrenty: 12 months
Color: Black
Supply Ability
30000 Unit/Units per Month
Packaging & Delivery
Packaging Details
1. Inner: color box;
2. Outer: Standard export carton;
3. Customized package.
Port: Shenzhen
Lead Time:
| Quantity(Sets) | 1 - 100 | 101 - 1000 | >1000 |
| Est. Time(days) | 16 | 20 | To be negotiated |
| MODEL | OKUPS650VA |
| CAPACITY | 360W |
| INPUT | |
| Voltage | 220VAC |
| Voltage Range | 162-268Vac |
| Frequency Range | 50Hz±1Hz or 60Hz±1Hz (auto sensing) |
| OUTPUT | |
| Voltage Regulation (Batt. Mode) | 220VAC ±10% |
| Frequency Range (Batt. Mode) | 50Hz±1Hz or 60Hz±1Hz (auto sensing) |
| Transfer Time | Typical 4-8ms, 13ms max |
| Waveform (AC. Mode) | sine wave |
| Waveform (Batt. Mode) | Simulated Sine Wave |
| BATTERY | |
| Battery Voltage | 12.8V |
| Battery number | 6000mAh*1( Lithium iron phosphate battery) |
| Maximum Charge Current | 0.7 A |
| PROTECTION | |
| Full Protection | short circuit, Overload , Overcharge and overdischarge protection |
| ALARM | |
| Battery mode | Sounding every 10 seconds |
| Low Battery | Sounding every second |
| Overload | Sounding every 0.5 seconds |
| Fault | Continuously sounding |
| PHYSICAL | |
| Approx. Dimension (mm) | 345X148X230 |
| Approx. Net Weight(kg) | 3.7 |
| OPERATING ENVIRONMENT | |
| Humidity | 0-90 % RH @ 0- 40°C (non-condensing) |
| Noise Level | Less than 40dB( 1 m spacing) |
| MANAGEMENT | |
| Communication port | For choice |
Our Services
1. OEM&ODM services acceptable.
2. Lots of cooperated agent for shipping by sea or by air.
3. 1year warrenty , if it is quality problem , we will provide the parts for free .
Little hint:
1. In the warranty period the machine has a problem, please contact the sales staff, we will be responsible for customer service.
2. Exceed the warranty period, improper operation and man-made damage, we will still give help and support,We will provide spare parts at a cost price.
3. According to the customer's needs, we can provide unconventional, but the cost may be slightly higher than the traditional machine.
FAQ
Q1: Why you should choose us?
---16 years UPS experiences
---Professional team for both oversea and domestic market
--UPS provider of SCO meeting 2015 and Shanghai-Kunming high-speed railway project
---Qualified product plus competitable prices
---Delivery in time
---Sincerely services
Q2: How is your after-sale service?
---We provide 12-24 months warranty since the delivery date and free maintenance /
replacement during warranty period.
Q3: What kind of certification you have?
---ISO9000, CE,ROHS,and so on
Our products could pass different labor testing according to different countries’ requirements.
Q4: Delivery time:
---Standard products could be delivered within 15 days; customized products could be
developed within 10-30days.
Packaging & Shipping
1,The product manuals, technical documents, CE, ROHS and other certificates (if necessary) will be issued with the goods.
2,invoices, bills of lading, certificate of origin, fumigation certificate (if needed) will confirm with you, through DHL or other means to send.
