Product Details:
|
| Item Name: | 10KW DC To AC Power Inverter | Output Type: | Single, Single/Split Phase |
|---|---|---|---|
| Size:: | 550*255*630mm | Weight: | 65.5KG |
| Output Frequency: | 50Hz/60Hz | Input Voltage: | 48vdc/72vdc/220vac/ |
| High Light: | 50Hz Pure Sine Wave Power Inverter,10KW Pure Sine Wave Power Inverter,60Hz dc to ac pure sine wave inverter |
||

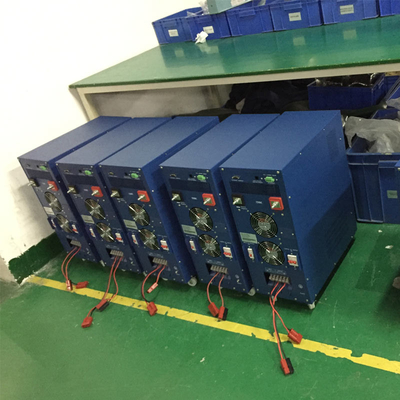

Pure Sine Wave Power Inverter 10KW DC To AC With AC Charger Solar Power Inverter
Product Description:

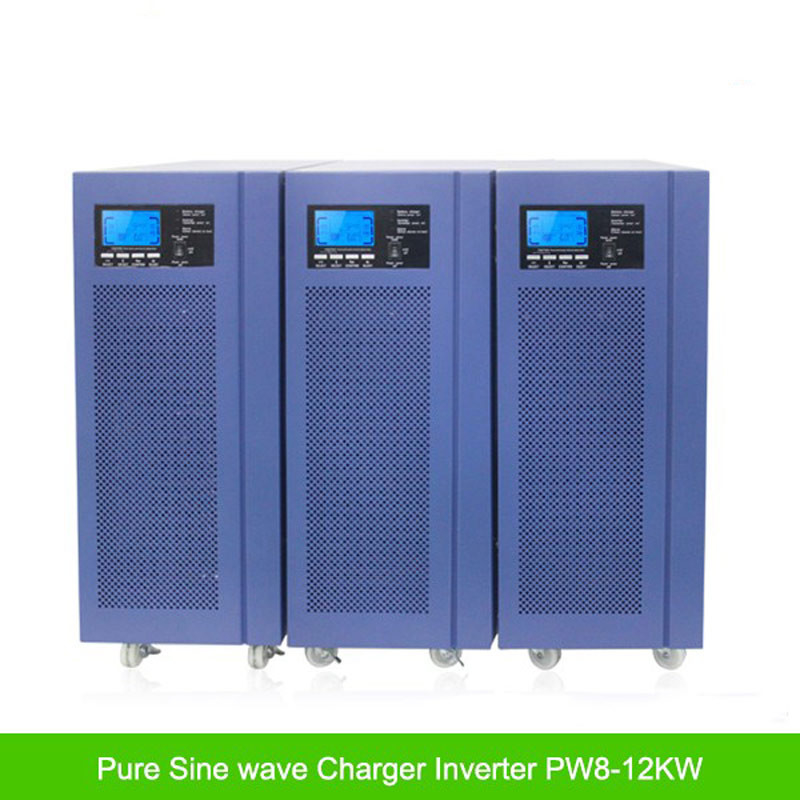

1. PW Pure sine wave charger inverter 8-12KW.

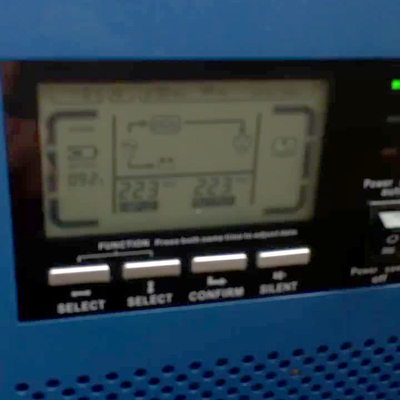

2. LED/LCD display, Enhanced functions setting via LCD Man-machine intelligent design.
3. RS232 communication port.
4. LCD shows the solar capacity.
5. 5 stages adjustable AC charging current. AC charging also can be closed.
Product Applications:
All kinds of home appliances,office equipment,solar power system,and other equipment which use single phase power.
Parameters:
| Model | PW10KW | |
| AC Input | Nominal Power | 10000W |
| Nminal Iput Voltage | 230VAC | |
| High Line Disconnect | 263VAC±4%(Normal) or 263VAC±4%(Wide) | |
| AC Output | Output Voltage | 230VAC±10% |
| Output Frequency | 60Hz/ 50Hz | |
| Solar Charger | Rated Charge Current | 60A |
| Max.PV Open Circuit Array Voltage | 110VDC | |
| Charger Mode | MPPT | |
| AC Charger | Charger Current | 35A |
| DC Input | Input Voltage | 48/72VDC |
| Low DC input Shut-down | 40VDC±1.2VDC for 48VDC, 60VDC±1.8VDC for 72VDC | |
| System | Operating Temperature Range | 0-40℃ |
| Dimension | 538*255*630mm | |
| Weight | 65.5KG | |
In the warranty period the machine has a problem, please contact the sales staff, we will be responsible for customer service.
Exceed the warranty period, improper operation and man-made damage, we will still give help and support,We will provide spare parts at a cost price.
FAQ:
Q1. What's the terms of payment?
A. We accept TT,30% deposit and 70% balance before shipment
Q2. What is the function of an inverter?
A.It basically converts dc to ac. They are primarily used to convert the dc current from batteries to ac supply.Typically used in power backup systems for when the mains power fails. Small inverters are also sold as camping equipment to convert motor vehicle battery power to AC for low power applications such as powering lamps and portable TVs.
Q3. How many kinds of the output waveform for inverters?
A.Two kinds. Pure sine wave and modified sine wave. Pure sine wave inverter could provide high -quality AC and carry various loads, while it requires high tech and high cost. Modified sine wave inverter load poorly not carrying an inductive load, but the price is moderate.
