Product Details:
|
Product Name: | 3000W Pure Sine Power Inverter | Input Type: | AC Input / Solar Charger |
---|---|---|---|
Power: | 3000W | Output Peak Power: | 3 Times Of Rating Power |
Wave Form: | Pure Sine Wave | Indicators: | Swith Selector/Communications |
Net Weight: | 24.5KG | ||
High Light: | Off Grid dc to ac pure sine wave inverter,3KW dc to ac pure sine wave inverter,110VAC dc to ac converter pure sine wave |

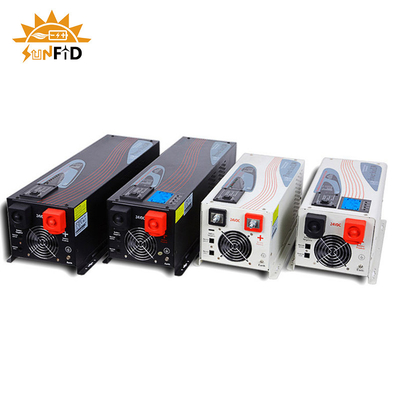

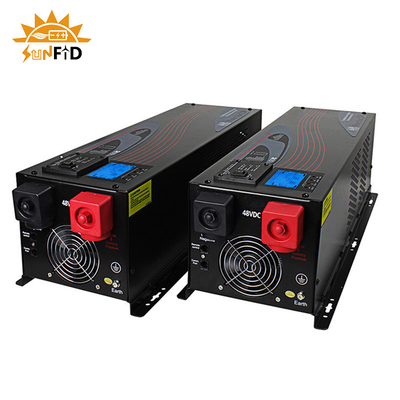

Pure Sine Wave Power Inverter 3KW Off Grid DC To AC LCD Digital Display Power Converter
Product Description:
1. Can work with inductive loads such as air conditioner, motor door and so on
2. Accept generator's energy output.
3. Microprocessor control with 3-step progressive charging, 7 battery type selector.
4. Fast and powerful charger with 35A and 70A.
5. High power factor 0.9, low power consumption.

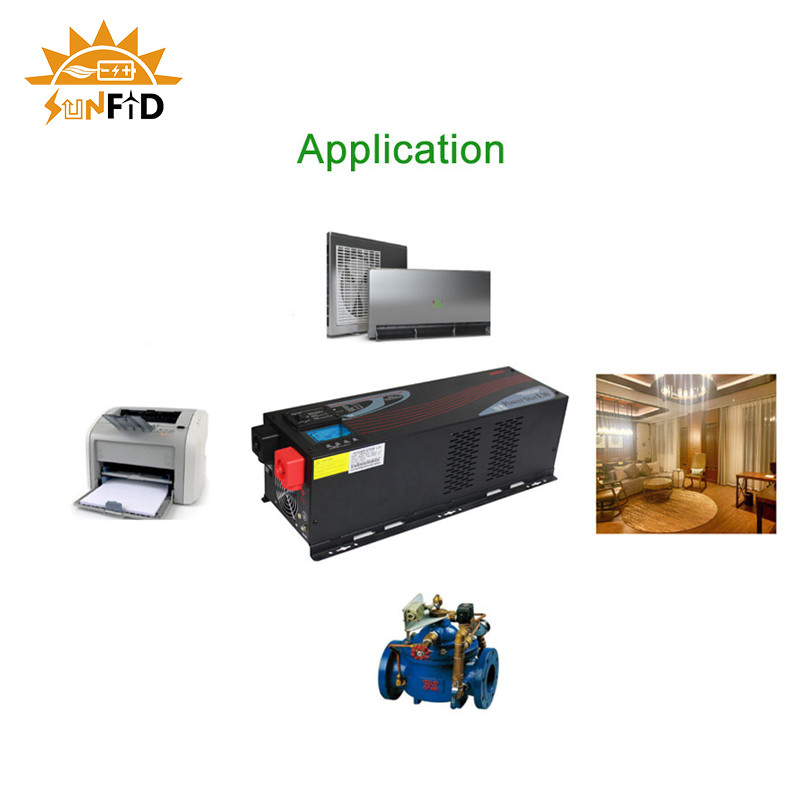

Product Application
Pure Sine Wave Inverter Charger 3000W. It widely applied in wind generator, Solar power system, house, vehicle, ship, and places where lack of city power, mobile electricity work and telecommunications device, launch Station, Emergency EPS.
Specification:
Model | OKINW3000 | |
AC Input normal power | 3000W | |
AC Input Voltage | 110-120VAC / 220-230VAC | |
AC Input Acceptable Voltage |
194-243VAC/164-243VAC(wide mode) |
|
AC Input Line High Transfer |
135V±4%(253±4% ) |
|
AC Output waveform |
Pure Sine Wave |
|
Solar Charger/ Battery Voltage |
12V/24V/48V |
|
Solar Charger Minimum Start Voltage |
10V for 12V, 20V for 24V, 40V for 48V |
|
Solar Charger Low Battery Alarm |
10.5V for 12V, 21V for 24V, 42V for 48V |
|
Solar Charger Max. Charging Current |
35A/70A |
|
Solar Charger Input Over charge Voltage |
15.7V for 12V, 31.4V for 24V, 2.8V for 48V | |
Indicators Protections |
low battery/ over charging /over temp/over load |
|
Transfer Efficiency Line Mode |
>95% |
|
Transfer Efficiency Battery Mode | >88% | |
Operating Temperature |
0°C-+ 40°C |
|
(LxWxH) Dimension(mm) |
480×225×190mm |
|
Net Weight (KG) |
24.5kg |
Pre-Sales Service
* Provide professional OEM/ODM service.
* 2 years Warranty, lifelong technical support With CE certificate & EMC report.
* Best competitive factory price.
* Fast delivery with stock.
FAQ:
Q1.How is your product quality?
A: QC regularly check the quality . We have been working with large solar inverters company. Our products were damaged less than
3% over the past 3 years. Regarded as a high quality inverter supplier.
Q2.When the product have problem, how to solve it?
A:We have a professional after-sales team, in case of any problems, first contact us to help you solve,we have a 24 months warranty.We will track product usage until you are satisfied.
Q3.Can you accept OEM, ODM service?
A:Yes, we accept OEM,ODM service.
