Product Details:
|
Product Name: | 2000W Power Inverter | Output Type: | Single |
---|---|---|---|
Power: | 2000W | Output Frequency: | 50Hz/60Hz |
Wave Form: | Pure Sine Wave | Advantage: | Low Frequency With Transformer |
Charger Current: | 35amp/70amp | ||
High Light: | Off Grid 2000 watt pure sine wave power inverter,2000 watt pure sine wave power inverter DC To AC,24V inverter dc to ac 2000 watt pure sine wave |

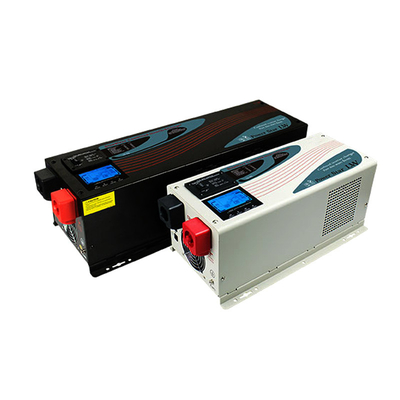

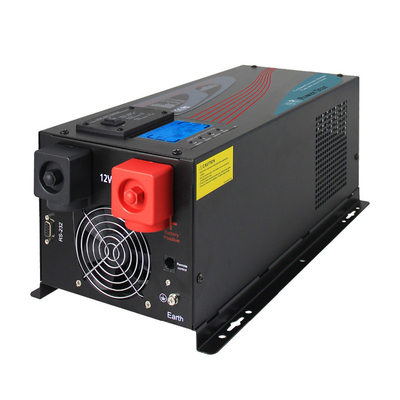

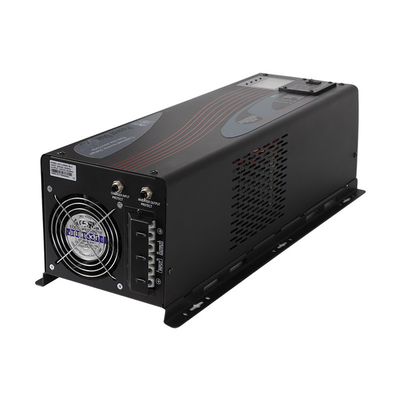

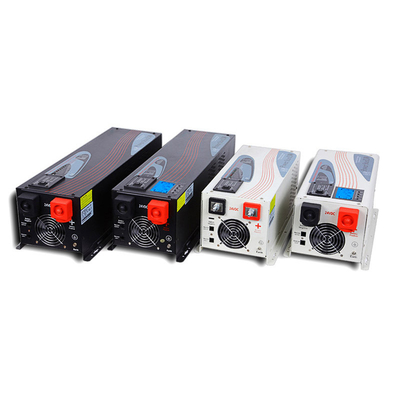

Pure Sine Wave Power Inverter 2000W Off grid DC to AC 24V/48V 120/240 Inverter
Product Description:
Accept generator’s energy output.
High power factor 0.9-1.0, low power consumption.
Automatically transfer between battery and line modes.
Microprocessor control guarantees high reliability.
Remote control function.
Product Application
Pure Sine Wave Inverter Charger 2000W. It widely applied in wind generator, Solar power system, house, vehicle, ship, and places where lack of city power, mobile electricity work and telecommunications device, launch Station, Emergency EPS.
Specification:
Model | OKINW2000 | |
AC Input normal power | 2000W | |
AC Input Voltage | 120VAC / 230VAC | |
AC Input Acceptable Voltage |
194-243VAC/164-243VAC(wide mode) |
|
AC Input Acceptable Voltage |
85V±4%/184(154 wide mode±4% ) |
|
AC Output Phase&waveform |
Pure Sine Wave(bypass mode sync to input) |
|
AC Output Voltage |
100/110/120/130VAC, 208/220/230/240VAC (bypass mode sync to input) |
|
AC Output Short Circuit Protection |
Yes, shutdown after 10ms |
|
DC Input Battery Voltage |
12V/24V/48V |
|
DC Input Max. Charging Current |
20A/35A/70A/90A |
|
DC Input Over charge Voltage |
15.7V for 12V,31.4V for 24V, 62.8V for 48V |
|
Indicators Protections |
low battery/ over charging /over temp/over load |
|
Efficiency Line Mode |
>95% |
|
Storage temperature |
0°C-+ 40°C |
|
(LxWxH) Dimension(mm) |
480×225×190mm |
|
Net Weight (KG) |
19kg |
FAQ:
Q1.How is your product quality?
A: QC regularly check the quality . We have been working with large solar inverters company. Our products were damaged less than
3% over the past 3 years. Regarded as a high quality inverter supplier.
Q2.When the product have problem, how to solve it?
A:We have a professional after-sales team, in case of any problems, first contact us to help you solve,we have a 24 months warranty.We will track product usage until you are satisfied.
Q3.Can you accept OEM, ODM service?
A:Yes, we accept OEM,ODM service.
