24V 240V 10000 Watt Pure Sine Wave Inverter 48V 120V With AC Charger

I'm Online Chat Now

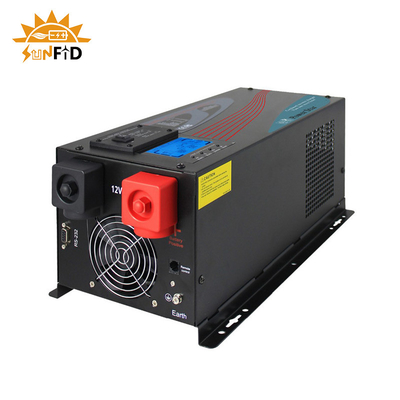

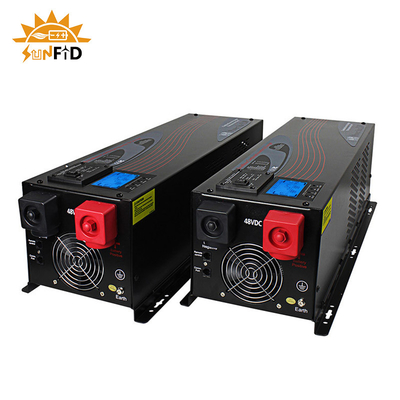

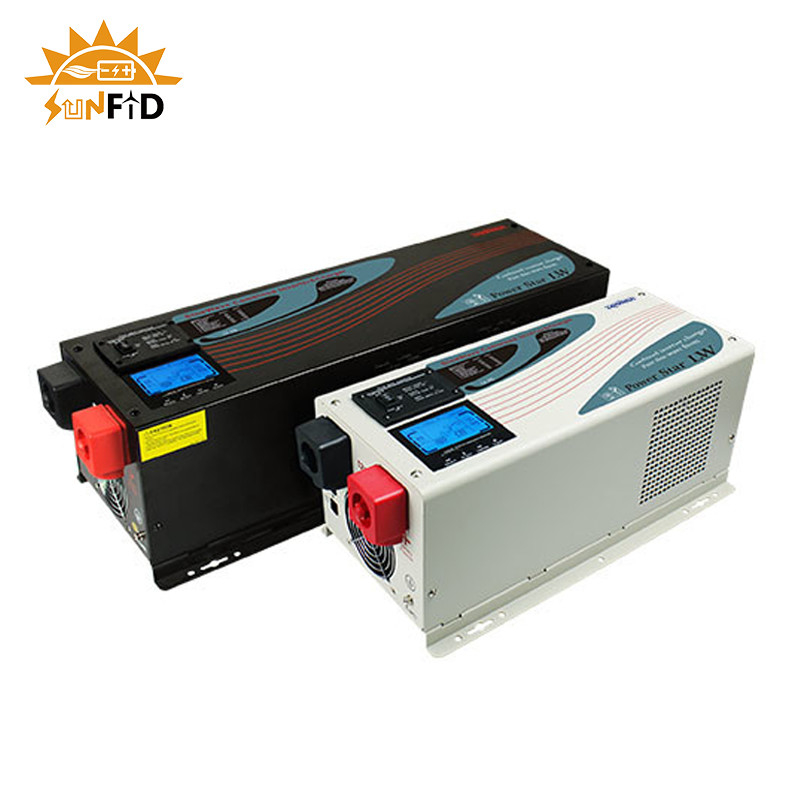

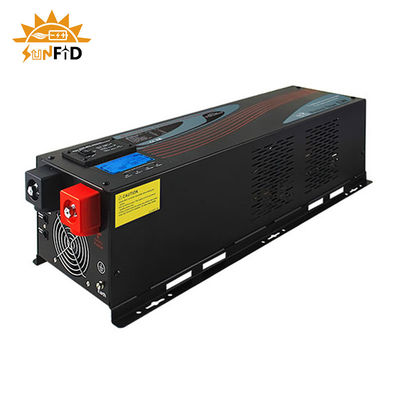

24V 240V 10000 Watt Pure Sine Wave Inverter 48V 120V With AC Charger

24V 240V 10000 Watt Pure Sine Wave Inverter 48V 120V With AC Charger
24V 240V 10000 Watt Pure Sine Wave Inverter 48V 120V With AC Charger 24V 240V 10000 Watt Pure Sine Wave Inverter 48V 120V With AC Charger 24V 240V 10000 Watt Pure Sine Wave Inverter 48V 120V With AC Charger 24V 240V 10000 Watt Pure Sine Wave Inverter 48V 120V With AC Charger

Large Image :  24V 240V 10000 Watt Pure Sine Wave Inverter 48V 120V With AC Charger

Product Details:
Place of Origin: China
Brand Name: SUNFiD
Certification: CE,FCC,MSDS,ROHS,UN38.3
Model Number: SFD-INW1000
Payment & Shipping Terms:
Minimum Order Quantity: 50pcs
Price: Negotiable Price
Packaging Details: Hard Paper Carton/ Color Box/ cutstomized
Delivery Time: 10-30 Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000pcs per month

24V 240V 10000 Watt Pure Sine Wave Inverter 48V 120V With AC Charger

Description
Product Name: 1000W Power Inverter Product Type: DC/AC Inverter
Power: 1000W Output Frequency: 50Hz/60Hz
Output Voltage: 110v/120v/220v Or 220/230/240v±10% AC Input Phase & Waveform: Single Phase & Pure Sine Wave
Output Type: Dual,Single
High Light:

240V 10000 watt pure sine wave inverter

,

10000 watt pure sine wave inverter 48V

,

24V 1000w pure sine wave inverter

Pure Sine Wave Power Inverter 1000Watt With AC Charger LCD Digital Display 24V/48V 120/240



Product Description:

LCD digital display show voltage, load and battery info in real time.
Peak power is three times of rated power.
Can work with inductive load such as air conditioner, motor and so on.
Pure sine wave, available for sensitive load.
5-step progressive charging, 7 battery type selector.
Fast and powerful charger with 35A and 70A.



Product Application

Pure Sine Wave Inverter Charger 1000W, LCD digital display, 3times peak power, low frequency type with transformer, UPS function. It widely applied in wind generator, Solar power system, house, vehicle, ship, and places where lack of city power, mobile electricity work and telecommunications device, launch Station, Emergency EPS.

Specification:

Model OKINW1000
AC Input normal power 1000W
AC Input Voltage 120VAC / 230VAC
AC Input Acceptable Voltage

194-243VAC/164-243VAC(wide mode)

AC Input Acceptable Voltage

85V±4%/184(154 wide mode±4% )

AC Output Phase&waveform

Pure Sine Wave(bypass mode sync to input)

AC Output Voltage

100/110/120/130VAC, 208/220/230/240VAC (bypass mode sync to input)

AC Output Short Circuit Protection

Yes, shutdown after 10ms

DC Input Battery Voltage

12V/24V/48V

DC Input Max. Charging Current

20A/35A/70A/90A

Efficiency Line Mode

>95%

Storage temperature

0°C-+ 40°C

(LxWxH) Dimension(mm)

480×225×190mm



FAQ:

1. Q: Do you have your own factory?
A:Yes,we are professional manufacturer. Our factory is located in Shenzhen,China



2. Q: What is a resistive load appliances?
A:Generally speaking, appliances like mobile phones, computers, LCD TVs, incandescents, electric fans, video broadcast, small printers, electric mahjong machines, rice cookers etc. All belong to resistive loads. Our modified sine wave inverters can drive them successfully.



3. Q:What is the inductive load appliances?
A:It refers to the application of electromagnetic induction's principle, produced by high-power electrical products, such as motor type, compressors, relays, fluorescent lamps, electric stove, refrigerator, air conditioner, energy saving lamps, pumps, etc. These products' power are far more than the rated power (about 3-7 times) when start. So only pure sine wave inverter is available to them.
