Product Details:
|
| Product Name: | 3KW Solar Power Inverter | Product Type: | DC/AC Inverter |
|---|---|---|---|
| Rated Power: | 3000W | Peak Power: | 6000W |
| Output Frequency: | 50Hz/60Hz | Output Voltage: | 110-120VAC/220-230VAC |
| Input Voltage: | 12V/24V/48V | ||
| High Light: | 48V 3000 watt pure sine wave inverter 12 volt,24V 3000 watt pure sine wave inverter 12 volt,DC To AC 24v pure sine wave inverter 3000w |
||

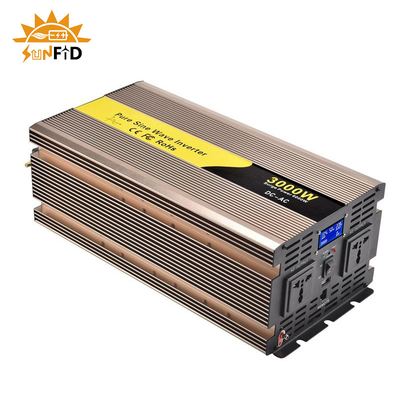

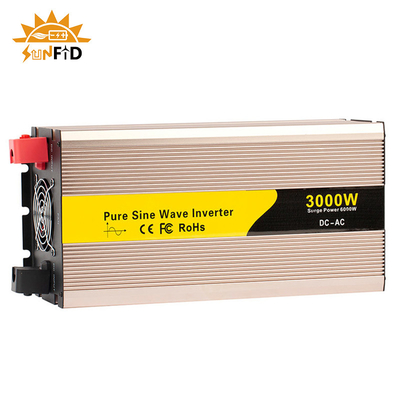

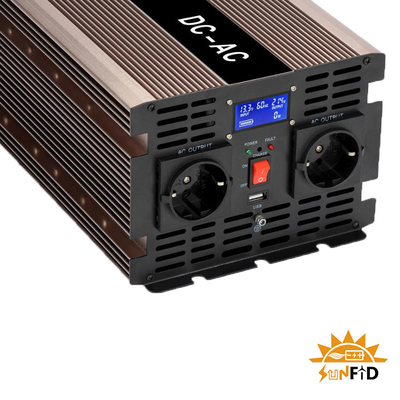

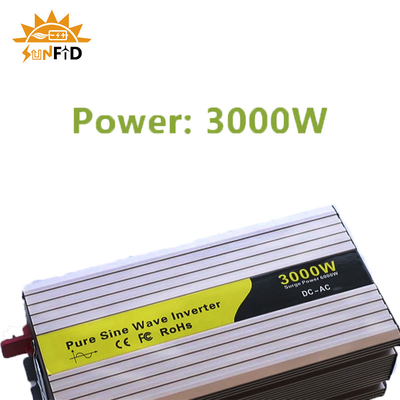

Pure Sine Wave Power Inverter 3000Watt 12-24-48VDC To AC 110V/220V Solar Power Inverter
Product Description:
Product Application
Widely for RVs, Boats, and power failure emergencies, Household Electric Appliance, AC outlets for multi-purpose emergency use on vacations, business trips, and camping. etc.
Specification:
| Model | OKIN3000 | |||
| Rated power | 3000W | |||
| Peak power | 6000W | |||
| Input voltage | DC12V | DC24V | DC48V | |
| Output voltage | 100VAC or 120VAC or 220VAC or 230VAC or 240VAC±5% | |||
| Unload current less than | 1.3A | 0.8A | 0.6A | |
| USB port | 5V 1A | |||
| Max.efficiency | 90% | |||
| Input voltage range | 10-15.5V | 20-31V | 40-61V | |
| Low voltage alarm | 10.5±0.5V | 21±0.5V | 42±1V | |
| Over voltage protection | 15.5±0.5V | 31±0.5V | 61±1V | |
|
Over voltage recover |
14.8V±0.5V |
29.5V±0.5V |
59V±1V |
|
| Protect function | Over voltage | LED Red light on, shut down | ||
| Over load | LED Red light on, shut down | |||
|
Over temperature |
Alarm at first, tempurature continuously rise. LED Red light on & shut down | |||
| Input reverse polarity | Fuse burn-out | |||
| (LxWxH) Dimension(mm) |
396x180x128mm |
|||
FAQ:
1. Q: Do you have your own factory?
A:Yes,we are professional manufacturer. Our factory is located in Shenzhen,China
2. Q: What is a resistive load appliances?
A:Generally speaking, appliances like mobile phones, computers, LCD TVs, incandescents, electric fans, video broadcast, small printers, electric mahjong machines, rice cookers etc. All belong to resistive loads. Our modified sine wave inverters can drive them successfully.
3. Q:What is the inductive load appliances?
A:It refers to the application of electromagnetic induction's principle, produced by high-power electrical products, such as motor type, compressors, relays, fluorescent lamps, electric stove, refrigerator, air conditioner, energy saving lamps, pumps, etc. These products' power are far more than the rated power (about 3-7 times) when start. So only pure sine wave inverter is available to them.
