Product Details:
|
| Product Name: | Pure Sine Wave Solar Power Inverter | Type: | DC/AC Inverters |
|---|---|---|---|
| Rated Power: | 1500W | Output Current: | According The Load |
| Output Type: | Single | Output Voltage: | 110VAC/220VAC |
| Input Voltage: | 12V/24V/48V | ||
| High Light: | 48V 1500w 12v pure sine wave inverter,1500w 12v pure sine wave inverter 24V,220V inverter 1500 watt pure sine wave |
||

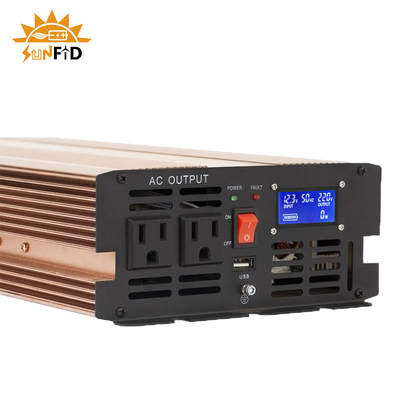

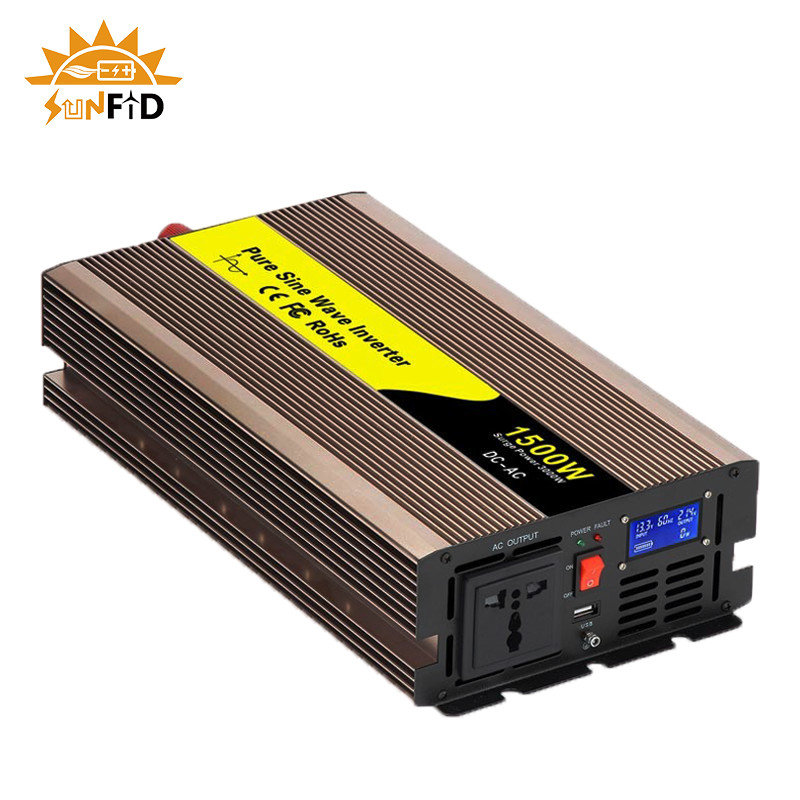

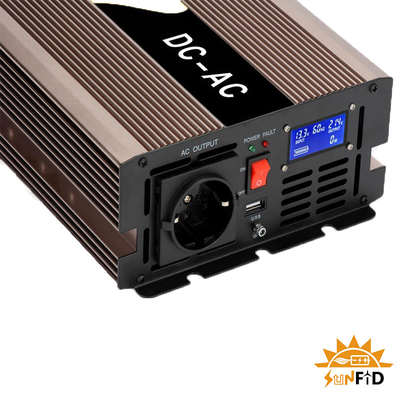

Pure Sine Wave Inverter 1500Watt 12V/24V/48V volt DC to AC 110V/220V
Product Description:
1. Reverse Connection Protection
2. Surge Power Protection
3. Over temperature Protection
4. Over Load Protection
5. Over Current Protectin
6. Over Voltage Protection
7. Short Circuit Protection
8. Low Voltage Protection
9. Special Remote Controller
Product Application
Not only used for common appliances such as the TV,computer,lights,fan ..
but also suitable for inductive loading such as air conditions,fridge,water pump and motor
Specification:
| Model | OKIN1500 | |||
| Rated power | 1500W | |||
| Peak power | 3000W | |||
| Input voltage | DC12V | DC24V | DC48V | |
| Output voltage | 100VAC or 110VAC or 120VAC or 220VAC or 230VAC or 240VAC±5% | |||
| Unload current less than | 1.1A | 0.7A | 0.5A | |
| Waveform distortion | THD<3%(Linear load) | |||
| USB port | 5V 1A | |||
| Max.efficiency | 90% | |||
| Input voltage range | 10-15.5V | 20-31V | 40-61V | |
| Low voltage alarm | 10.5±0.5V | 21±0.5V | 42±1V | |
| Over voltage protection | 15.5±0.5V | 31±0.5V | 61±1V | |
| Low voltage recover | 12.3±0.5V | 24±0.5V | 48±1V | |
| Protect function | Low voltage | Alarm at first, voltage continuously reduce. LED Red light on & shut down | ||
| Over voltage | LED Red light on, shut down | |||
| Over temperature | Alarm at first, tempurature continuously rise. LED Red light on & shut down | |||
| Short circuit | LED Red light on | |||
| Input reverse polarity | Fuse burn-out | |||
| (LxWxH) Dimension(mm) | 320*180*78mm | |||
FAQ:
1. Q: I need your price list of all your products, do you have a price list ?
A: We do not have a price list of all of our products. Because we have so many items,and it’s impossible to mark all of their price on a list.And the price are always changing because of the producing cost.If you want to check any price of our products, please feel free to contact us.We will send offer to you soon!
2. Q: I can find the product on your catalogue, can you make this product for me?
A: Our catalogue shows most of our products,but not all.So just let us know what product do you need,and how many do you want.If we do not have it,we can also design and make a new mould to produce it.For your reference,making a ordinary mould will take about 30 days.
