Product Details:
|
| Input Voltage: | 48V | Output Voltage: | 230V |
|---|---|---|---|
| Output Current: | 40A | Output Frequency: | 50/60HZ |
| Type: | DC/AC Inverters | Inverter Efficiency: | >95% |
| Output Voltage Waveform: | Pure Sine Wave | AC Charge Current: | 60A |
| PV Charge Curren: | 0-80A | Maximum PV Open Circuit Voltage: | 145V |
| Battery Type: | Lead Acid Or Lithium Battery | Size (L*W*D): | 426mm*322mm*124mm |
| Weight: | 12.5kgs | ||
| High Light: | 145VDC all in one solar charger inverter,3KW all in one solar charger inverter,220V all in one inverter charge controller |
||

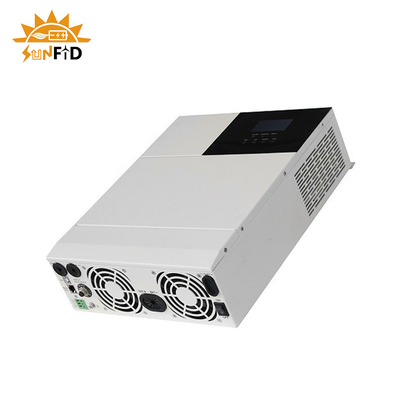

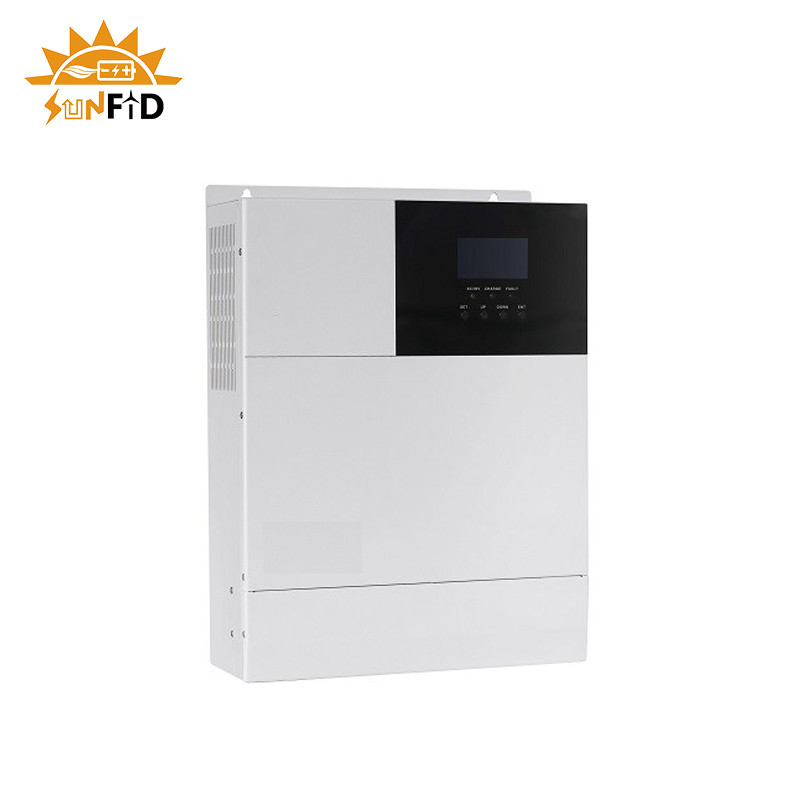

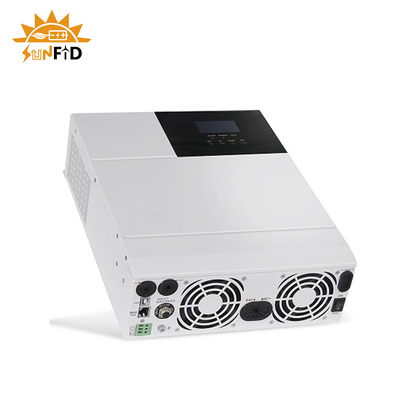

Product overview
HF series is a new all-in-one hybrid solar charge inverter, which integrates solar energy storage &means charging energy storage and AC sine wave output.Thanks to DSP control and advanced controlalgorithm, it has high response speed, high reliability and high industrial standard.
Performance characteristics:
*Full digital voltage and current double closed loop control, advanced SPWM technology, output of pure sine wave.
*Two output modes: mains bypass and inverter output; uninterrupted power supply. ŸAvailable in 4 charging modes: Only Solar, Mains Priority, Solar Priority and Mains & Solar hybrid charging.
*Advanced MPPT technology with an efficiency of 99.9%.
*With the charging requirement (voltage, current, mode) settings, and suitable for various types of energystorage batteries.
*ON/OFF rocker switch for AC output control.
*Power saving mode available to reduce no-load loss.
*Intelligent variable speed fan to efficiently dissipate heat and extend system life.
*Lithium battery activation design, allowing access of lead-acid battery and lithium battery. Ÿ360 ° all-round protection with a number of protection functions. Such as overload,short circuit and overcurrent.
*Supply of a variety of user-friendly communication modules, such as RS485(GPRS, WiFi, Bluetooth), USB etc., and suitable for computer,mobile phones, Internet monitoring as well as remote operations.
Specification:
Packing & Delivery:
