Product Details:
|
| Rated Capacity: | 215.04KWh DC | Rated Voltage: | 768V |
|---|---|---|---|
| Rated Frequency: | 50Hz/60Hz | Battery Type: | Lifepo4 Lithium Battery |
| AC Rated Power: | 100KW | AC Wiring Mode: | 3phase 4-wire/ 3phase 3-wire |
| AC Grid Voltage: | 320-460V | Fire Protection: | Type S Aerosol/HFC-propane/perfluorohexanone |
| High Light: | Solar Energy Battery Storage Systems,Commercial Battery Storage Systems,215Kwh Battery Storage Systems |
||

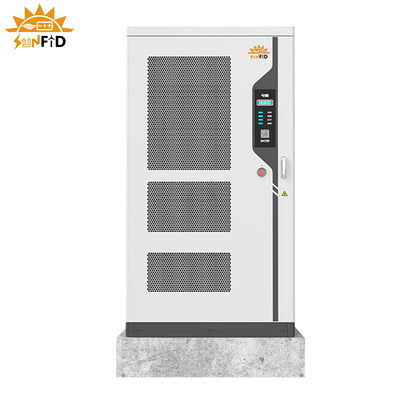

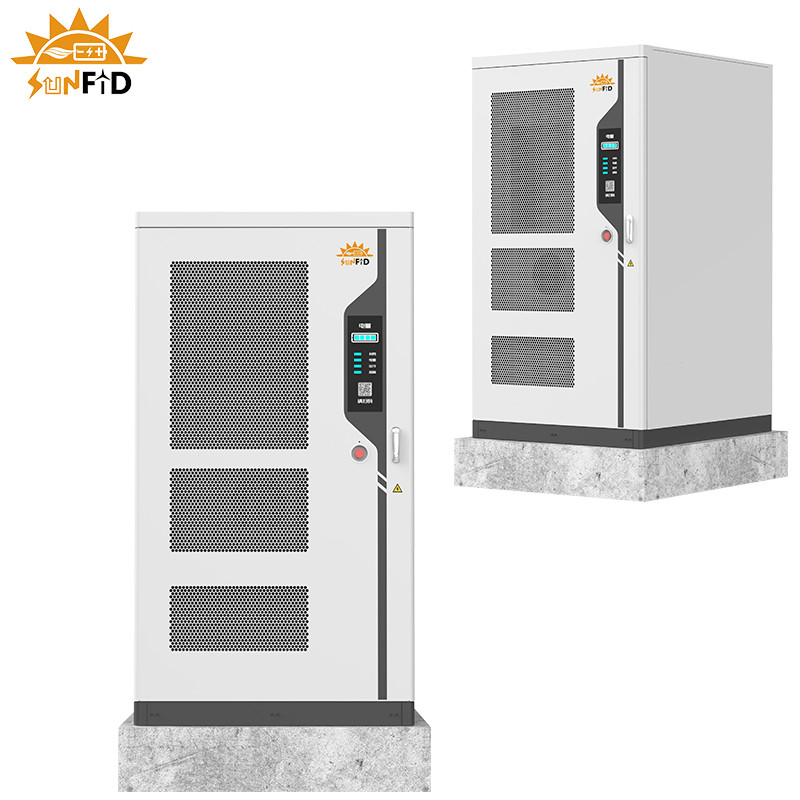

215Kwh Commercial Battery Storage Systems Solar Energy Storage Cabinet
The battery energy storage system (ESS) containers are based on a modular design. They can be configured to match the required power and capacity requirements of the client’s application.
215KWH ESS Description:
1. Based on an All-in-one design, highly integrating LFP battery, BMS, PCS, EMS, power distribution system, temperature control system, and fire protection system.
2. This ESS can provide peak shaving, grid frequency modulation, power capacity expansion, and standby power supply to reduce electricity costs.
3. It has Safe, Simple, Smart Features.
215KWH ESS Application Scenarios:
Industrial and commercial parks, gas stations, PV ESS EV charging stations, mining areas, airports, datacenter and so on.
Product Paramenters:
|
215KWH Energy Storage System |
||
|
DC Parameters |
Rated voltage |
768V |
|
Voltage Range |
672-864V |
|
|
Rated Capacity |
215.04KWH | |
|
System Configuration |
1P240S |
|
|
AC Parameters(Grid connected) |
Rated Power |
100W |
|
Wiring Mode |
3phase 4-wire /3 wire |
|
|
Rated Grid Voltage |
400V |
|
|
Grid Voltage Range |
320-460V |
|
|
Rated Current |
144A |
|
|
Rated Grid Frequency |
50/60HZ |
|
|
AC Parameters (Off grid) |
AC Off-grid Voltage |
400V |
|
AC Off-grid Frequency |
50/60HZ |
|
| System Parameters | Charge-discharge Rate | ≤0.5CP |
| Thermal Management Mode | Air Conditioning Cooling | |
| Fire Protection System | Type S aerosol/HFC-propane/perfluorohexanone | |
| Anticorrosive Level | C3 (C4/C5 Optional) | |
| Ingress Protection | IP54 | |
|
Dimension |
1400mm(L)*1200mm( W)*2200mm(H) |
|
|
Weight |
2300KG | |
| Certificate | GB/T36276, UL9540A, IC62619,UN38.3 | |
Product Details:

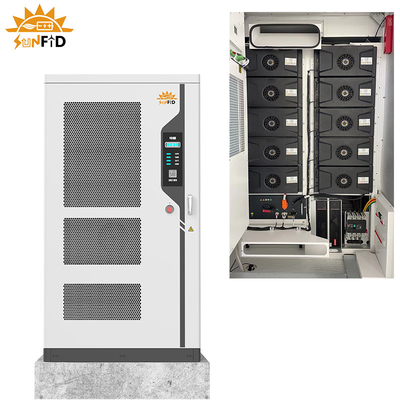

Battery Cell and Modules and Battery Cluster
The battery core adopts lithium iron phosphate battery-LFP, the capacity is 280Ah, the nominal voltage is 3.2V, the working voltage range is 2.5~3.65V,
