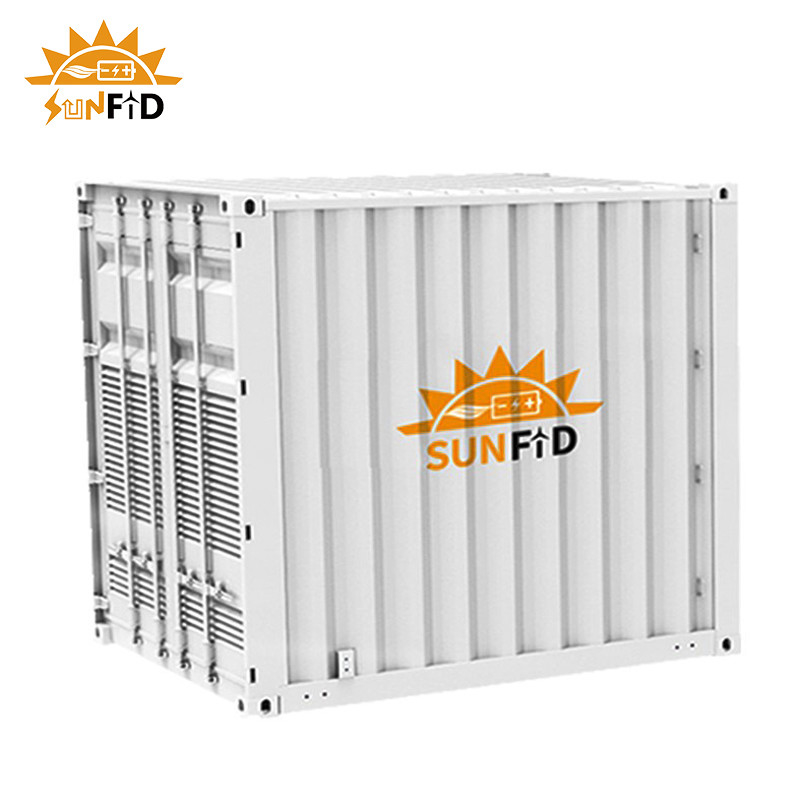

BESS Commercial Battery Storage System , 1MW 10Ft Container Energy Storage Battery

I'm Online Chat Now

BESS Commercial Battery Storage System , 1MW 10Ft Container Energy Storage Battery

BESS Commercial Battery Storage System , 1MW 10Ft Container Energy Storage Battery
BESS Commercial Battery Storage System , 1MW 10Ft Container Energy Storage Battery

Large Image :  BESS Commercial Battery Storage System , 1MW 10Ft Container Energy Storage Battery

Product Details:
Place of Origin: China
Brand Name: SUNFiD
Certification: CE,FCC,MSDS,ROHS,UN38.3
Model Number: SFD-CES-1KKD380A
Payment & Shipping Terms:
Minimum Order Quantity: 50pcs
Packaging Details: Customized Contianers
Delivery Time: 10-30 Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2containers per month

BESS Commercial Battery Storage System , 1MW 10Ft Container Energy Storage Battery

Description
Item: 1.29MW Energy Storage Container 10Feet Material: LFP Battery & Metal
Rated Power: 1290KW Voltage: 672~864V
Size: 10Feet(2991*2896*2438mm) Application: Uninterruptible Power Supply
High Light:

1MW Container Commercial Battery Storage System

,

BESS Container Energy Storage Battery

,

10Ft Container Energy Storage Battery

1MW 10Ft Container Energy Storage Battery BESS Commercial Battery Storage System

  • 1MW Energy Storage System is highly integrated with lithium battery, battery management system, PCS, grounding system, power distribution system, temperature control system and fire protection system.
  • The AC voltage is 400VAC, which can provide peak and valley filling, grid frequency adjustment, power expansion and backup.
  • Power supply and other functional services to help customers reduce electricity costs to the greatest extent. Recommended for industrial and commercial users, optical storage and charging support, super fast charging station support and other scenarios

BESS Container BatteryStorage Energy System Features

  • Standard 10feet container design, compact design, suitable for small user scenarios
  • 280Ah PACK+PACK level targeted fire + fan speed regulation
  • DC 1000V, 20 years of normal use
  • Main control cabinet, integrating DC confluence, power distribution, communication and control

1MW Outdoor Energy Storage System Parameters:

Item Name Container Energy Storage Battery1290
Cell Type LFP-3.2V-280Ah
Rated Capacity (KWh) 1290.24
Battery Voltage Range (V) 672-864
System Parameters
BMS 3 Grade
Size(mm) 2991*2896*2438 (10 Feet)
Weight(KG) 14T
IP Grade IP54
Operation Temperature Range -30°C ~ +50°C
Aux. Power Parameters 14KW-380V/50HZ
Fire Protection Aerosol S/ Heptafluoropropane / Perfluorohexanone
Installation Mode Outdoor Installation
System Communication Protocol Modbus TCP
