Product Details:
|
| Model Number: | OK-CS-ES48100 | Battery Type: | LiFePO4 |
|---|---|---|---|
| Nominal Voltage: | 384v / 192V / 96V | Capacity: | 148kwh |
| Cycle Life: | 3000 Times | System Configuration: | AC380V |
| Application: | Solar Power Storage System | ||
| High Light: | CE Commercial Solar Battery Storage Systems 192V,CE 192V Commercial Solar Battery Storage Systems 384V,CE commercial solar battery storage 96V |
||

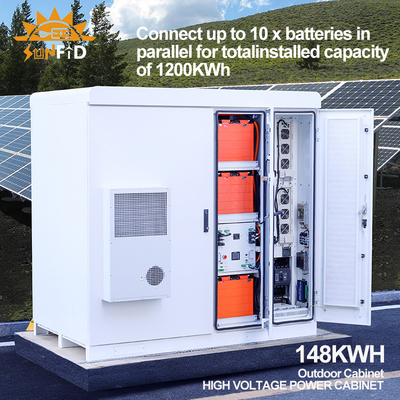

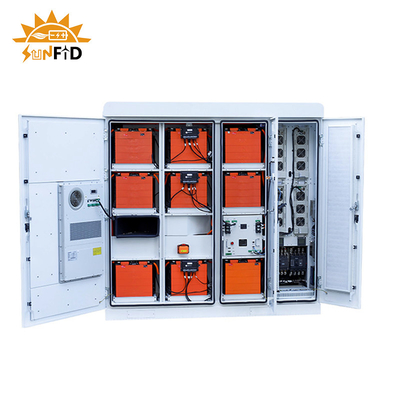

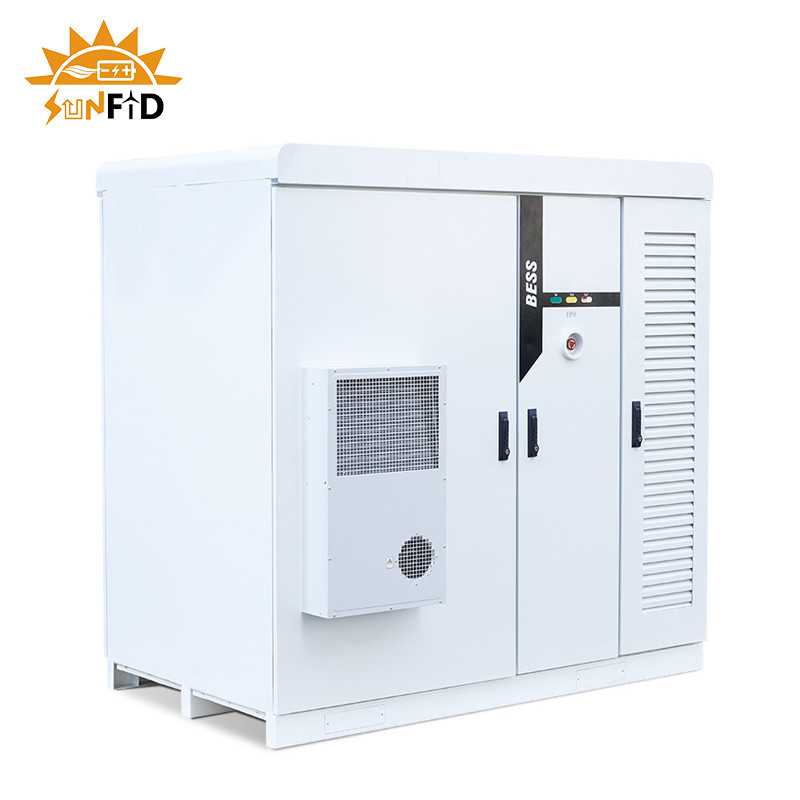

Commercial Solar Battery Storage Systems 148KWH 384V 192V 96V high voltage electric lithium battery solar system
Description of the solar energy storage battery:
1. 148KWH high voltage energy storage power supply
2. 60KW/100KW off grid inverter off grid power storage
3. The shipment could be solar battery storage container
Quick Details:
Place of Origin: China Brand Name: OEM
Model Number: OK-CS-ES48100 Battery Type:LiFePO4
Cell Type: LFP-200Ah Nominal Voltage: 384V / 192V / 96V
Warranty: 5YEARS Weight: 2300kg
Capacity: 148kwh Cycle life: 3000 Times
Application: Solar Energy Storage Systems & Uninterruptible Power Supplies
Specification of lithium battery energy storage:
| Battery Capacity(BOL) | 147.84kWh |
| Use scenarios | On-grid/Pure off-grid/On and off-grid |
| AC grid connection parameters | |
| Grid Type | 3L+PE |
| Rated charge/discharge power | 60KW |
| Rated grid voltage | 1P210S(21 Modules) |
| System Configuration | AC380V |
| Rated grid voltage | 50Hz/60Hz |
| Frequency range | ±3Hz |
| Rated current | 95A |
| Power Factor | 1(Ahead)~1(Lag) |
| Output Harmonics | ≤3% |
| Dimension (W*H*D) | 1861.5*1267*1835mm |
| Weight | 2300kg |
| IP Protection Rating | IP55 |
| Seismic Intensity Rating | 8(IEC60980) |
| Anti-corrosion grade | C4(optional C5) |
| Operating temperature【1】 | -20℃～50℃ |
| Working altitude【2】 | ＜2000m |
| Cycle life | 5 years or more than 2000 times |
| Fire Fighting System | Automatic fire extinguishing |
| Communication protocols | Modbus TCP/IP |
| Cooling method | Battery section: air conditioning / power section: forced air cooling |
