Product Details:
|
| Product Name: | 5KWH Powerwall LifePO4 Battery | Battery Capacity: | 51.2V100Ah |
|---|---|---|---|
| Charging Voltage: | 57.6V | Max. Continuous Charging Current: | ≤100A |
| Voltage At End Of Discharge: | 40V | Application: | Small Home Solar System |
| High Light: | Powerwall Lithium Battery 51.2V100Ah,Powerwall Lithium Battery 5KWH,Wall Mounted Powerwall Lithium Battery |
||

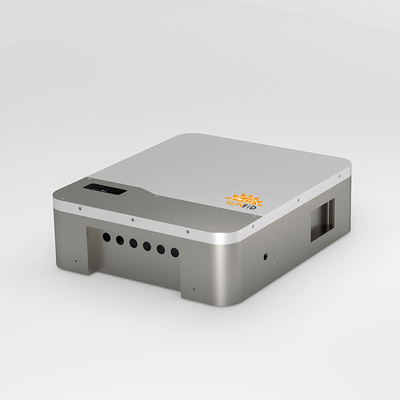

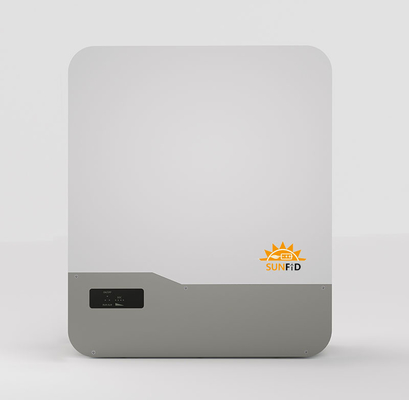

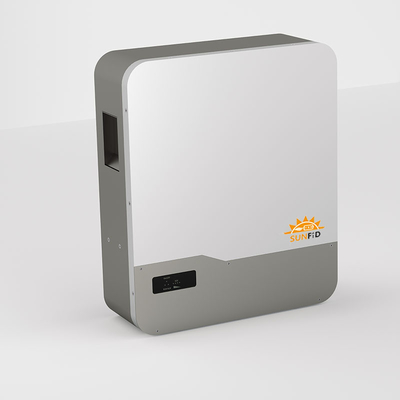

Powerwall Lithium Battery 51.2V100Ah 5KWH Wall Mounted Battery Lifepo4 Battery Solar Energy
Powerwall Lithium Battery 51.2V100Ah Wall Mounted Battery Lifepo4 Battery Solar Energy
Solar Energy Storage Battery Description:
1. Our wall mounted battery is 51.2Va100Ah, 5KWH. It support to be connected in parallel, max. 8 units to 40KWH.

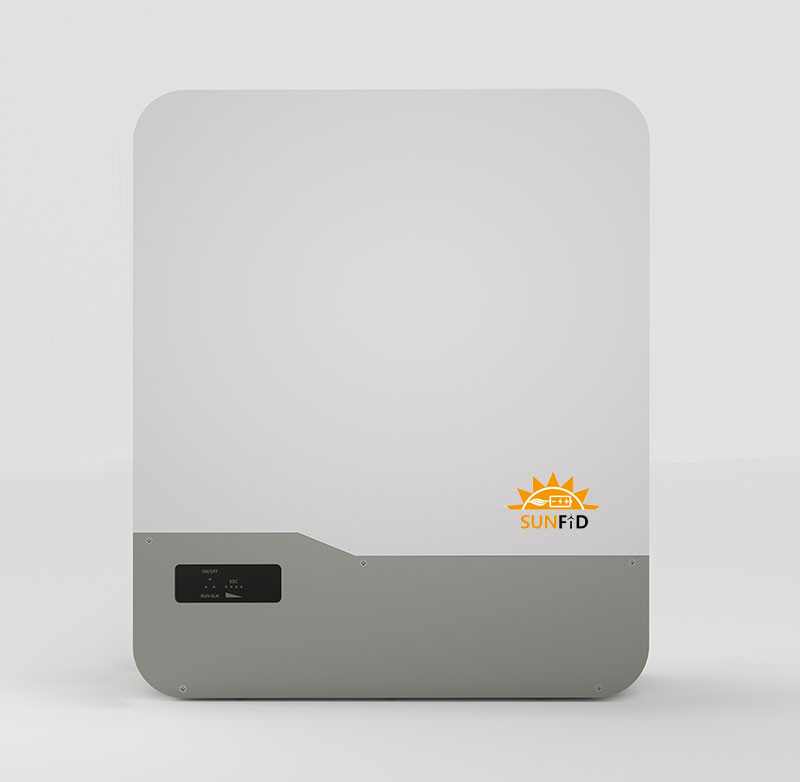

2. THe LED in the front of the lithium battery module is for Run Status, ALM and POwer lever indicator
3. Solar lithium battery have RS232, RS485 /CAN interface
4. When the solar lithium battery module are cascaded, the one with the communication address of 0001 is called the master battery pack, and others are called the slave battery
Lithium ion Phosphate Battery Application:
Lithium battery system are widely used in residential energy storage systems, such as solar energy storage system adn UPS. The Power wall LiFePO4 battery pack adopts the international advanced lithum iron phosphate battery application techlonogy and BMS control technology.
Solar Lithium Battery Parameters
|
No. |
Item | Parameter | Remark | |
|
1 |
Nominal Voltage |
51.2V |
Single battery 3.2V | |
|
2 |
Rated Capacity |
Typical |
100Ah |
Standard discharge(0.2C) after Standard charge(0.2C) |
|
Minimum |
98Ah |
|||
|
3 |
Charging Voltage |
57.6V |
||
|
4 |
Charging Mode |
C.C/C.V. |
Constant Curren / Constant Voltage |
|
|
5 |
Voltage at end ofDischarge |
40V |
Discharge Cut-off Voltage |
|
|
6 |
Rated Charge Current |
≤20A |
Charging Current 20A |
|
|
7 |
Maximum Continuou Charge Current |
≤100A |
Not more then 1 hours |
|
|
8 |
Internal Impedance |
＜100mΩ | ||
|
9 |
Rated Discharge Current |
≤50A |
Discharging Current 50A |
|
|
10 |
Maximum Continuous Discharge Current |
≤100A |
Not more then 1 hours |
|
|
11 |
Overcharge Voltage |
3.65±0.05V | Single series voltage | |
|
12 |
Over Discharge Cut Off Voltage |
2.5±0.01V |
Single series voltage |
|
|
13 |
Over Current |
Discharge overcurrent value:≧150A |
|
|
14 |
Short Circuit |
Detection condition |
Exterior short circuit |
|
Release condition
|
Cut short circuit |
||
|
15 |
Operating Consumption Current |
≤40mA (Max) |
|
|
16 |
Equalizing opening differential pressure |
30mV |
|
|
17 |
Bleed Start Point |
3.45V |
|
|
18 |
Operation Temperature Range |
Charge: 0~55℃ |
60±25%R.H. Bare Cell |
| Discharge: -20~55℃ | |||
|
19 |
Storage Temperature Range |
Less than 1 year: -20~25℃
|
60±25%R.H. at the shipment state |
|
less than 3 months: -20~40℃ |
|||
|
Less than 7 day : -20~65℃ |
|||
| 20 | Cells | 48173125-100A | |
|
21 |
Connection Type |
16S1P |
|
|
22 |
Shipping voltage |
52.8V-57.6V |
FAQ
Q :Are you a manufacturer of trader?
A: We are a manufacturer of solar energy system kits,including solar panels, solar inverters, and solar energy battery.
Q: How long do you make sample?
A: 2-3days.
Q: How do you assure good quality products?
A: Quality is priority,100% 24 hours aging quality test before packing to assure reliable quality.
Q: Is it possible to OEM customize the battery pack and the packaging with our logos?
A: Yes, OEM/customizing is warmly welcome for bulk order. Just tell us your idea!
Q: What is your payment?
A: TT,PAYPAL,WESTERN UNION,
