Product Details:
|
| Type: | Electric | Function: | On Board Charger |
|---|---|---|---|
| Input Voltage And Current: | 110v/220v | Output Voltage And Current: | 12-90v/20-60A |

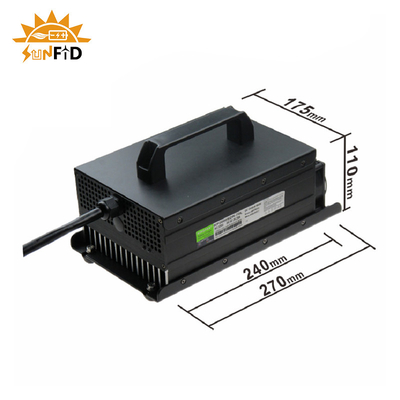

| Output Power: | 1800W | Size: | 270*175*110mm |
| High Light: | 29.4V Charge Lead Acid Battery With Lithium Charger,24V charge lead acid battery with lithium charger,50a 24v lithium ion battery charger |
||

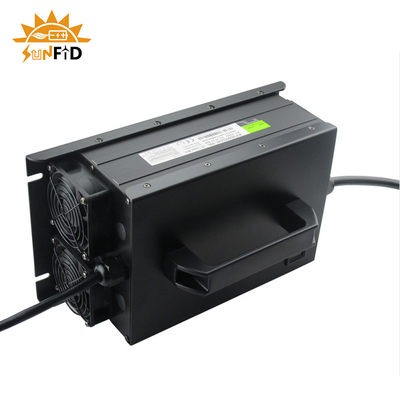

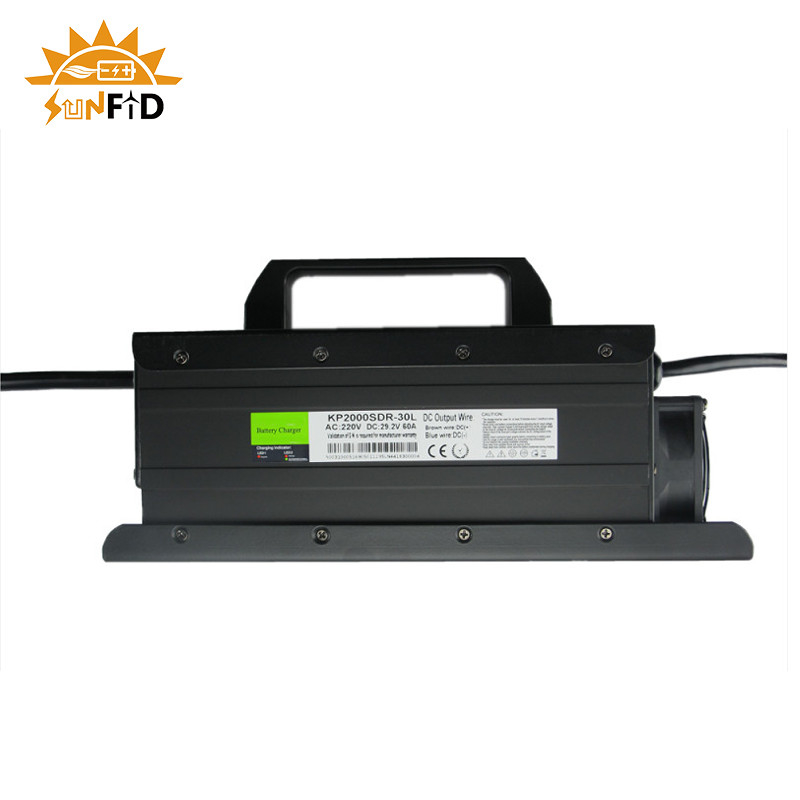

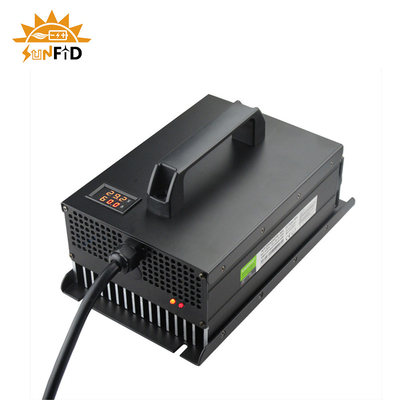

Lithium Battery Charger 1800W on board industrial 29.4V 24V 50A lifepo4 lithium ion forklift battery charger
Specifications:
| Input plug | Customized | Output connector | Customized | |||
| Color | Blackor customized | IP rate | IP54 | |||
| 380Size | 270*175*110mm | Net weight | 8 KGS | |||
| Battery type | 12V | 24V | 36V | 48V | 60V | 72V |
|
Lead acid Lithium |
60A | 50A | 40A | 30A | 25A | 20A |
| Product name | on board charger |
| Item NO. | OK-CH-1800 |
| Charger type | Li-FePO4 charger , Li-ion charger and lead acid charger |
| Input voltage | 110V or 220V |
| Color | Silver / customized |
| Max Power | 1800W |
| Control mode | Intelligent independent digital control chip |
| Customize charging way | Yes. (Pre-charging, automaticly shut off, over charging protection etc) |
| Efficiency | 85-88% |
| Warranty | 2 years |
| Case | Aluminum |
| Application | Electric motorcycles, sweeper, goft car, e-scooter. AGV, forklift |
