Product Details:
|
Surface Finishing: | HASL Lead Free | Board Size: | 17*53*1mm |
---|---|---|---|
Over Current Protection: | Yes | Over Discharge Protection: | Yes |
Short-circuit Protection: | Yes | Type: | Lithium Battery BMS |
High Light: | 18650 Lithium Battery BMS,Lithium Battery BMS 3s,12v 10amp 18650 3s bms |

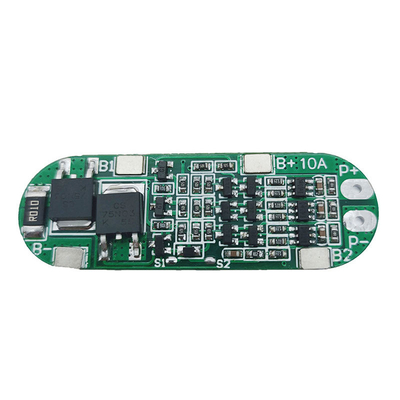

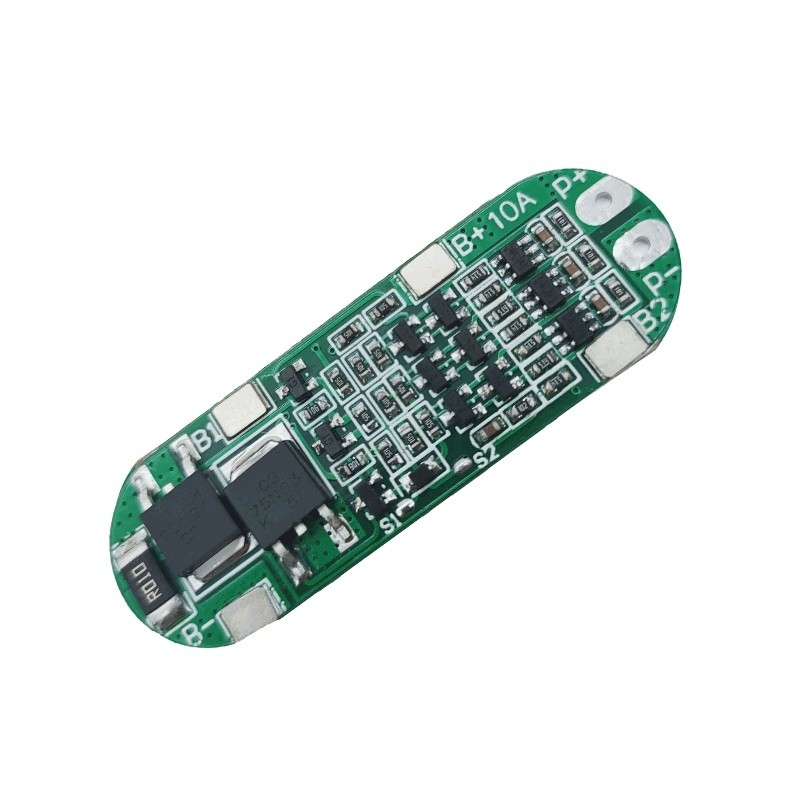

Lithium Battery BMS Lithium Battery Pylontech 18650 Charge Discharge Bms 3s Module 12v 10amp
Overview
Quick Details
Model Number: OK3SL10A01BMS
Place of Origin: Guangdong, China
Brand Name: OKTANMAX
Base Material: FR-4
Copper Thickness: 1oz
Board Thickness: 1mm
Min. Hole Size: 0.2mm
Min. Line Width: 0.1mm
Min. Line Spacing: 0.1mm
Surface Finishing: HASL Lead Free
Board Size: 17*53*1mm
Over Current Protection: Yes
Over Discharge Protection: Yes
Short-circuit Protection: Yes
Application: Consumer Electronics
Type: Lithium Battery BMS
Certificate: ROHS/ISO9001
Sample/OEM/ODM: Avalable
Product Name: Printed Circuit Board
Usage: OEM Electronics
Supply Ability: 30000 Piece/Pieces per Month
Packaging & Delivery
Port: shenzhen
Specification
Product Name | 3S 11.1V Lifeo4 BMS |
Scope of Use | 3S |

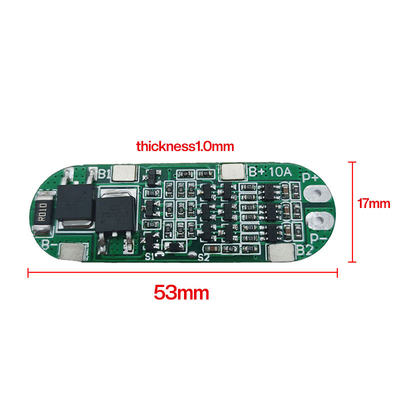

Size | 17x53x1MM |
Overcharging Detection Votage | 4.25V |
Overdischarging Detection Votage | 2.3V |
Certificate | RoHS/ISO9001 |
Continuous Working Current | 10A |
Peak Current | 20A |
FAQ
Q: How do I know what material or type my battery is?
A: Please look your battery body, if the normal voltage of your battery shows 3.2V, the battery is LiFePo4. If the normal voltage of your battery shows 3.6V or 3.7V, the battery is Li-ion or Li-polymer battery.
Q: Is this BMS suit for my battery?
A: First, please confirm that how many series you cell is in your battery pack. The BMS you buy must be same series as your battery pack.
Then please tell me how many Amps the working current needed. I will choose the best suitable one for you.
Q: What Amps should I choose for the BMS?
A: It depends on the motor power and controller current limit for electric vehicles. Such as less 250W choose 15A, less than 500 W choose 20 A, less than 800W choose 30A. If more than 1000W, please discuss with me. Protection current cannot be less than controller current limit.
Q: What is the Common port and Separate port? what is the difference?
A: We take 10S 36V 20A BMS for example:

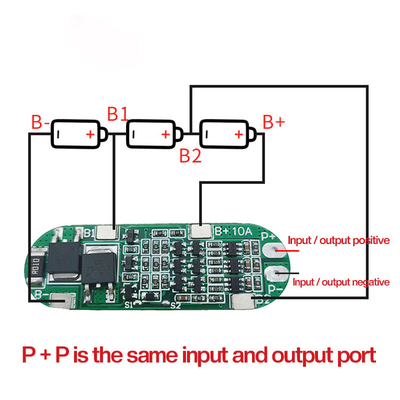

Common port 20A means your charge cathode and discharge cathode are connected in the same point end (our P-), charge cathode and discharge cathode are used in the common connection port, so the charge current and discharge current are same as 20A.
Separate port is separately connected by charge cathode (our C-) and discharge cathode (our P-), so the charge current and discharge current are different, discharge current is 20A, charge current is 10A.
Q: The relationship between battery capacity and BMS current?
A: There is no direct relationship between battery capacity and BMS current, big capacity doesn't mean big current, but rely on continue current, that is to say if your engine is powerful, you should choose high current of BMS, it is not relied on battery capacity.
Q: How should I choose the right charger?
A: LiFePo4 battery charger voltage = number of battery strings X 3.2V,
Li-ion battery charger voltage = number of battery strings X 4.2V.
Product Description
