Product Details:
|
| Base Material: | FR-4 | Copper Thickness: | 1oz~4oz |
|---|---|---|---|
| Board Thickness: | 1.6mm | Product Name: | 4s 10a Lifepo4 Bms |
| Usage: | Lithium Battery Packs,LiFePO4 Etc | Application: | Digital Equipment, Power Bank,Power Tool,Electrice Vehicle |
| High Light: | Rechargeable bms battery lithium,bms battery lithium 3.2v,4s lithium iron phosphate battery bms |
||

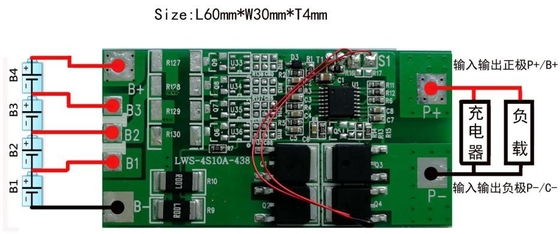

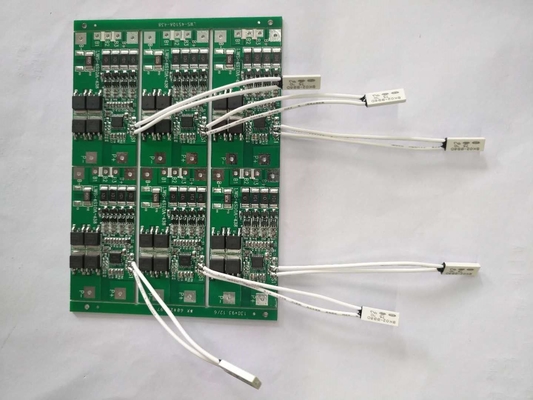

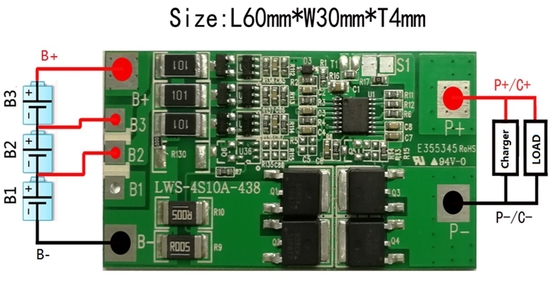

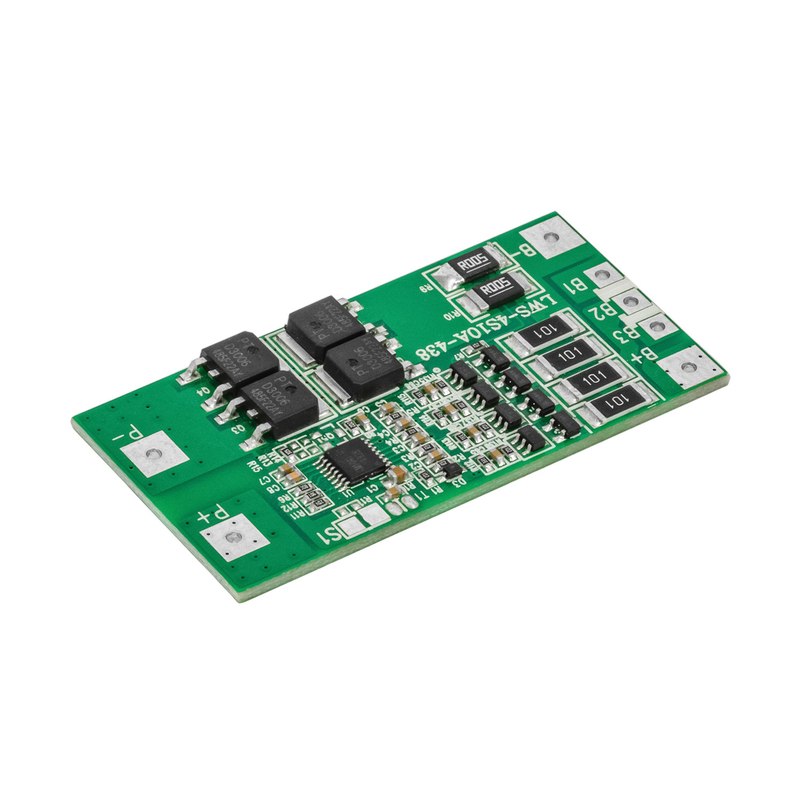

Lithium Battery BMS rechargeable balance bms3.2v lifepo4 4s 10a 12.8v battery protection circuit board
Overview
Quick Details
Model Number: OK4S10ABMS
Place of Origin: Guangdong, China
Brand Name: OKTANMAX
Base Material: FR-4
Copper Thickness: 1oz~4oz
Board Thickness: 1.6mm
Min. Hole Size: 0.25mm
Min. Line Width: 0.1mm/4mi
Min. Line Spacing: 0.003"
Surface Finishing: HASL Lead Free
Product name: 4s 10a lifepo4 bms
Type: lifepo4 battery BMS
Certificate: ISO9001/ROHS
Usage: Lithium Battery Packs,LiFePO4 etc
Application: Digital Equipment, Power Bank,Power tool,Electrice Vehicle
Solder mask: Green. Red. Blue. White. Black.Yellow
Number of layer: double or Multilayer
Material: FR4 /aluminum/ceramic CEM1, CEM3 Rogers Etc
Sample: avalable
Delivery time: 7-15 days after payment for small order
Supply Ability: 30000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details:
Inner packing:Vaccum packing/Plastic bag.
Outer packing:Standard carton packing or packing per customer's requirements.
Port: ShenZhen
| PCM Specifications For 12.8V(4S)Lifepo4 Battery Packs | ||||
| Modle: OK4S10ABMS | ||||
| No. | Test item | Criterion | ||
| 1 | Voltage | Charging voltage | DC:14.4V CC/CV | |
| Balance voltage for single cell | 3.6±0.025V | |||
| 2 | Current | Balance current for single cell | 36±5mA | |
| Current consumption | ≤50μA | |||
| Maximal continuous charging current | 10A | |||
| Maximal continuous Discharging current | 10A | |||
| 3 | Over charge Protection | Over charge detection voltage for single cell | 3.65±0.025V | |
| Over charge detection delay time | 500mS—1500mS | |||
| Over charge release voltage for single cell | 3.48±0.05V | |||
| 4 | Over discharge protection | Over discharge detection voltage for single cell | 2.32±0.08V | |
| Over discharge detection delay time | 500ms—1500ms | |||
| Over discharge release voltage for single cell | 2.58±0.1V | |||
| 5 | Over current protection | Over current detection voltage | 0.1±0.025V | |
| Over current detection current | 30±10A | |||
| Detection delay time | 50ms—200ms | |||
| Release condition | cut load and recharge | |||
| 6 | Short protection | Detection condition | Exterior short circui | |
| Detection delay time | 200-500us | |||
| Release condition | cut load and recharge | |||
| 7 | Resistance | Protection circuitry(MOSFET) | ≤50mΩ | |
| 8 | Temperature | Operating Temperature Range | -20~+70℃ | |
| Storage Temperature Range | -40~+125℃ | |||
About your products,just tell us the relative voltage/ cells/ current A or equipment etc,we will help to recommend the most suitable products for you.
1.True lithum battery pack BMS factory
2.Supply OEM/ODM and custom service
3.High quality with smart balance function
4.Wholesale price
5.Environment
6.Fast delivery
About the battery BMS
Function: Detect and protect the battery from over-charge ,over-dicharge, over-current short-circuit temperature detecting protection and auotmatically voltage balance function . Build with high end electronic components (High End IC and MOSFET ) ,simple structure design will let it have more stable quality working performance , Flexible application ( it can be used for less series battery by leaving some connection pins at empty status ),full set of protection measures let it works well without any infulence from external unexpected accidents.

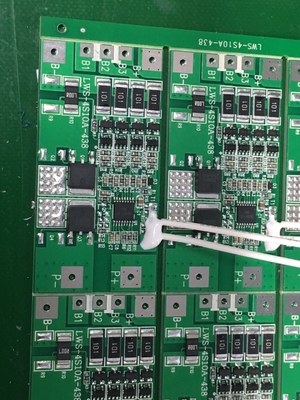

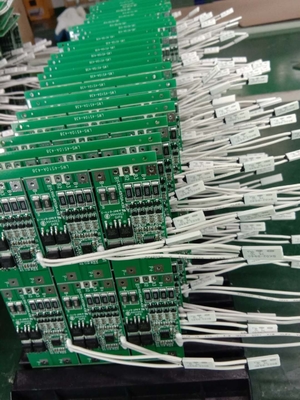

Production workshop
*Complete products contract PCB assembly and manufacturing services
*Circuir boards 2 to 30 layers PCB layout,fabrication, PCB assembly and box build
*Active and passive components source is directly from original manufacturer
*Enclosure cabinet case plastic injection molding,mental stamping,manufacture and assembly
*High-precision 0201 size components SMT technology and lead-free
*IC pre-program
*Hight-precision E-Testing
FAQ
Q: How do I judge what material my battery is ?
A: Please take a look at the battery body.if the normal voltage of your battery shows as 3.2V,the battery will be
LiFePo4.If the normal voltage of your battery shows as 3.6V or 3.7V, the battery will be Li-ion or Li-polymer battery. you can also ask battery manufacturer the material of battery.
Q: Can I use this protection circuit board for my battery?
A: Can use this protection circuit board, or not? There are 2 questions:How much cells in series is your battery
pack? The protection circuit board you need to buy must be same cells in series as your battery pack.What material is your battery? Only the LiFePo4 battery has different electric parameter from other battery, so if you need buy the protection circuit board for LiFePo4 battery , Please let us know firstly.
Q: Do we need cell balance or not?
A: The function of balance : Since battery is made of many pcs of cells in parallel and in series, the cells can't be
the same as no two people in the world is the same , so can only put in group with similar performance is not
consistent , which will lead to each cell voltage is not consistent as well after the completion of the charging if
without balance fun
Q: Do you have Minimum Order Requirement (MOQ)?
A: No, We don’t have MOQ, Different customer have different requirement ,We can provide various capacity and size is per your requirements,Also ODM / OEM is welcome.
