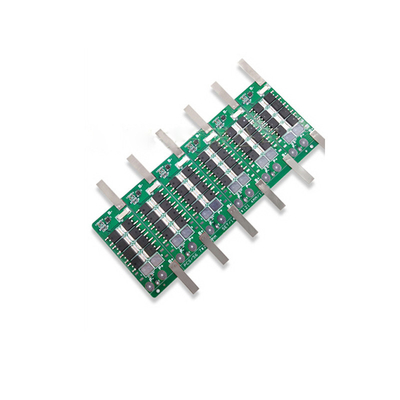

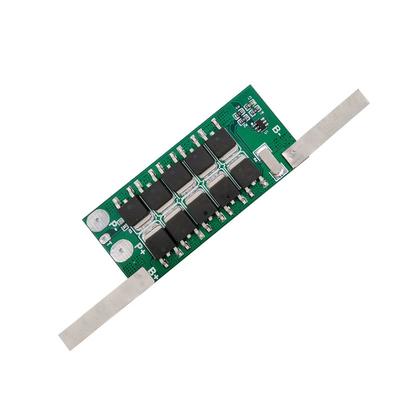

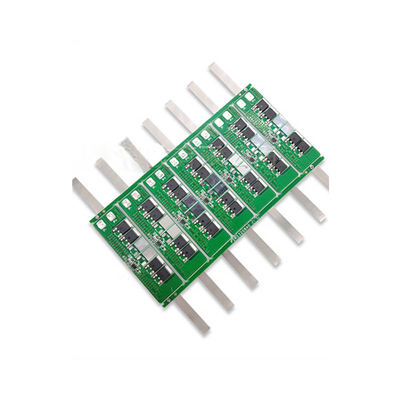

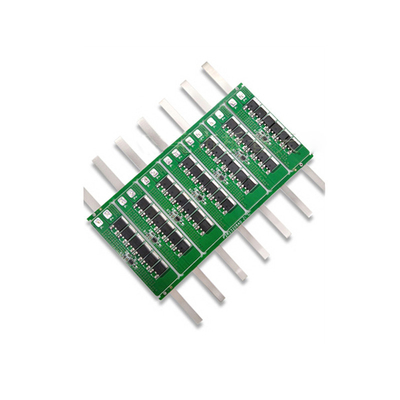

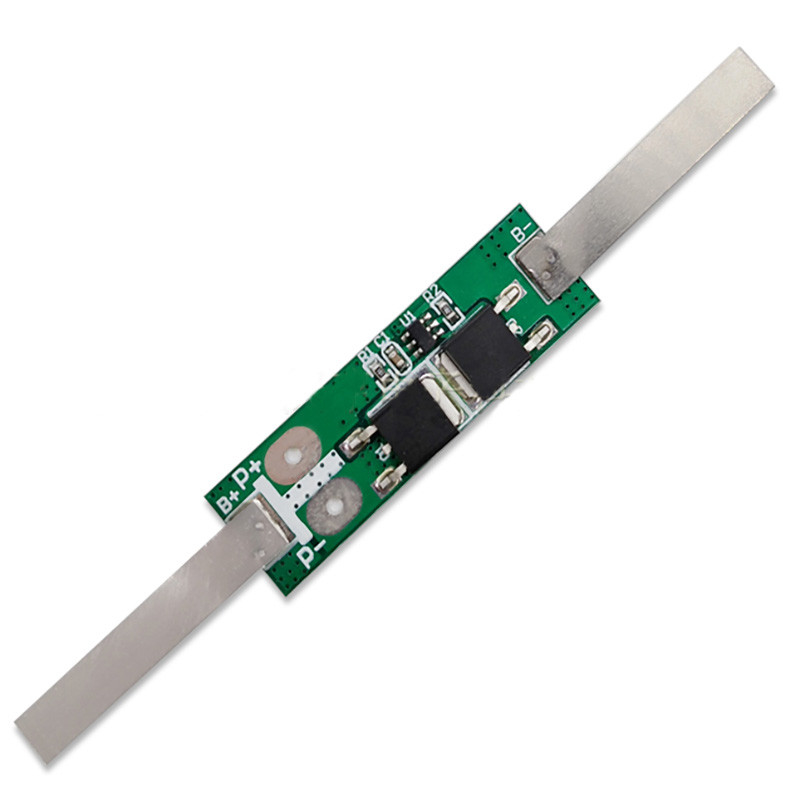

32700 32650 Smart BMS Lithium Battery 3.2V PCBA 1S Lifepo4

Lithium Battery BMS Factory Sale 32700 32650 3.2V PCBA 1S Lifepo4 Bms Solar Energy Storage System Battery with Smart Bms

Overview
Quick Details
Model Number:  OK1S5-10ABMS
Type:  bms pcba
Place of Origin:  Guangdong, China
Brand Name:  OKTANMAX
Supplier Type:  BMS
Copper Thickness:  0.1mm, 1oz
Min. Hole Size:  2mm
Service:  OEM Services Provided
Base Material:  FR-4
Surface Finishing:  HASL Lead Free
Supply Ability:  30000 pcs per Month
Packaging & Delivery
Port:  shenzhen

It is an intelligent protection board scheme specially designed for 28 series battery packs of electric bicycles and motorcycles. It is suitable for lithium batteries with different
chemical properties, such as lithium ion, lithium polymer, lithium iron phosphate, etc.The protection board has strong load
carrying capacity and the maximum ontinuous discharge current can reach 150A.
● 3-28 cell series protection
● Various protection functions for charging and discharging
● Hardware discharge over - current, short - circuit protection function processing
● Reserve discharge control switch and discharge temperature protection position
● Very low static consumption current

Protection function description,
Overcharge protection: When the battery is under the charging state, the voltage keeps going up. When the protection board detectsthat the voltage of any cell is higher than the overcharge protection value, the protection board will start timing immediately.When the time reaches the overcharge protection delay, the protection board will turn off the charging MOS tube, at that time, itcannot be charged.

Overcharge protection recovery: After the overvoltage protection appears on the protection board, the battery voltage will goingdown under the static or discharge state of the battery. When the protection board detects that each voltage is lower than therecovery voltage of the overcharge protection, the protection board will output a signal and turn on the charging MOS tube to charge.

Over-discharge protection: When the battery is under the discharge state, the voltage keeps going down. When the protection board detects that the voltage of any cell is lower than the overcharge protection value, the protection board will start timing immediately. When the time reaches the over discharge protection delay, the output signal of the protection board will turn off the discharge MOS tube, the load lock circuit will work, but, it cannot discharge at this time.

Over discharge protection recovery: After the over discharge protection appears on the protection board, the battery voltage will going up under the static or discharge state of the battery. When the protection board detects that each voltage is higher than the recovery voltage of the over discharge protection. At this time, disconnect the load or charge, the protection board will output a signal and turn on the charging MOS tube to charge.

Overcurrent protection: When the battery is under the static or discharge state, the current suddenly increases. When the
protection board detects that the current reaches the overcurrent protection value, the protection board will start timing at that time. When the current duration in the circuit reaches the overcurrent protection delay time, the output signal of the protection board will turn off the discharge MOS tube, and the load lock circuit will work. At this time, the discharge cannot be conducted.

Overcurrent protection recovery: After the discharge overcurrent protection appears on the protection board, the discharge MOS tube is turned off, and the current in the loop becomes 0. At this time, the load is disconnected or charged, the output signal of the protection board will turn on the discharge MOS tube to discharge.

FAQ
Q1: What kind motors you can provide?
A1: Our main products are BMS,PCB,PCM,brushless dc motor, brushless dc gear motor, brushed dc motors, Servo Motor, dc gear motor, micro dc motor, ac gear motor, planetary gear motor and drivers.

Q2: What is MOQ?
A2: MOQ is 1pcs.

Q3: Are you motor manufacturer?
A3: Yes, we are manufacturer, we develop and produce the motors and drivers by our own factory in GuangDong. We can offer One-stop service and accept OEM & ODM orders.

Q4: Are you motors reversible?
A4: Yes, nearly all dc and ac motor are reversible motor. We have technical people who can teach how to get the function by
different wire connection.

Q5: How about your delivery time?
A5: Usually, customized motor around 10-25days. standard motors within 3 days, please contact for checking.

Q6: What is the warranty?
A6: All of our products provide 12 months warranty from the date of cargo shipment.

Q7: What is the payment term?
A7: We accept by T/T, Western Union, Paypal, Ali Pay...you can pay in USD,Euro,CNY,HKD etc.
