Product Details:
|
| Product Name: | Solar Power Pumping Inverter | Output Power:: | 5500W |
|---|---|---|---|
| Max.Output Current: | 14.5A | AC Output Voltage: | 380Vac\3PH |
| Application: | Solar System, Solar Pumping | Display: | LCD+LED Display |
| High Light: | 380Vac Solar Pump Inverter,MPPT Solar Pump Inverter,5KW Pure Sine Wave Power Inverter |
||

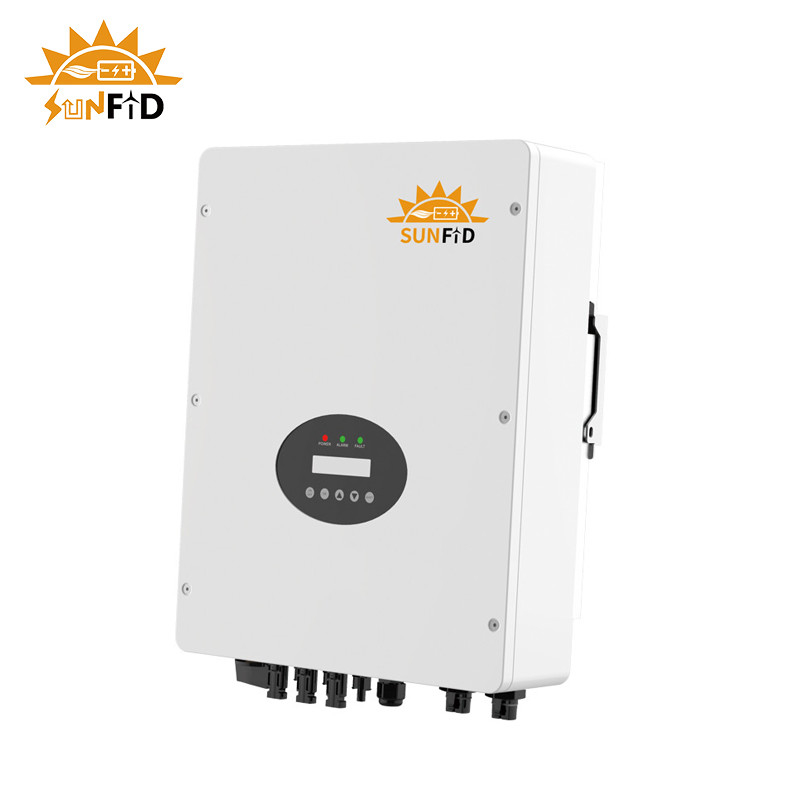

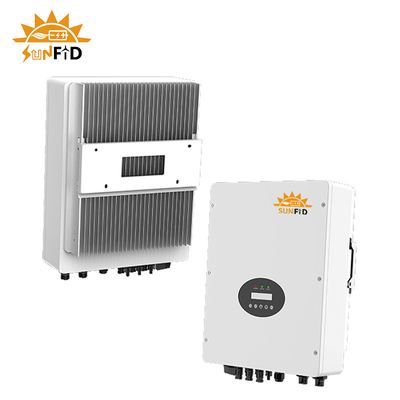

5KW Solar Pump Inverter DC Inputs with MPPT for Solar Power System Agricultural Systems
Solar Pump Inverter Characters
1. Easy configuration with solar panels by MC4 terminals, plug and play.
2. Fully automatic intelligent operation, safe and stable, to prevent drainage and overflow.
3. Protection class IP65, waterproof and dust-proof, suitable for harsh environments.
4. Interface visualization, LCD screen and LED status indicator display.
5. Maximum efficiency up to 97%, MPPT efficiency up to 99%.
6. Supports GPRS-RS485 (optional) monitoring.
7. In-line design, AC aviation anti-stay plug, installation is fast and convenient.
Solar Energy System Pumping InverterParameters:
| Model | SFD-PI5.5K |
| Input(DC side) | |
| Max DC Voltage(Vdc) | 900Vdc |
| Start-up Voltage (Vdc) | 250Vdc |
| Max Input Current (A) | 12.5A |
| MPPT Operating Range(Vdc) | 450Vdc-750Vdc |
| Number of Inputs | 2 |
| Output(AC side) | |
| Rated Output Power(W) | 5500W |
| Max Output Current (A) | 14.5A |
| AC Output Voltage(Vac) | 380Vac3PH |
| Output frequency (Hz) | 0～50/60Hz |
| Other Parameters | |
| Noise typical[dB(A)] | <45dB(A) |
| Cooling Concept | Natural cooling |
| Operating Temperature(℃) | -25℃~+60℃ |
| Protect Level | IP65 |
| Communication | GPRSRS485 |
| Dimension(W*H*D mm) | 410*346*150mm |
| Weight (Kg)REF | 12Kg |
