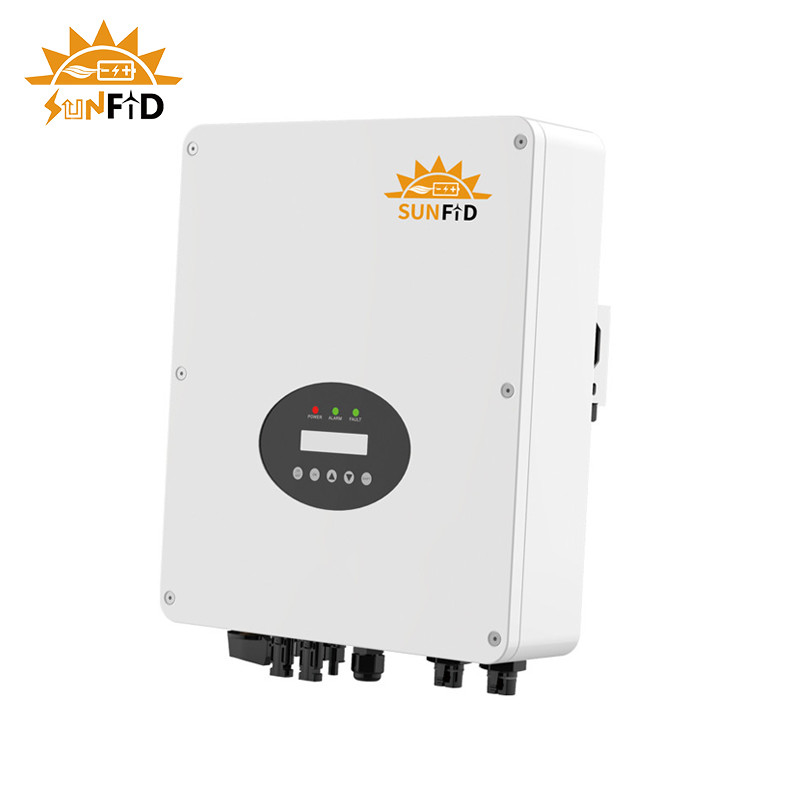

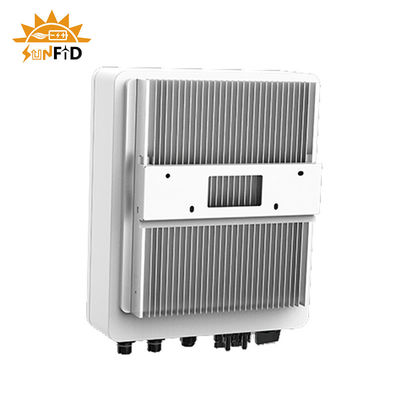

PV Agricultural Systems 3KW Solar Pump Inverter With MPPT 2 DC Inputs

I'm Online Chat Now

PV Agricultural Systems 3KW Solar Pump Inverter With MPPT 2 DC Inputs

PV Agricultural Systems 3KW Solar Pump Inverter With MPPT 2 DC Inputs
PV Agricultural Systems 3KW Solar Pump Inverter With MPPT 2 DC Inputs PV Agricultural Systems 3KW Solar Pump Inverter With MPPT 2 DC Inputs

Large Image :  PV Agricultural Systems 3KW Solar Pump Inverter With MPPT 2 DC Inputs

Product Details:
Place of Origin: China
Brand Name: SUNFiD
Certification: CE,FCC
Model Number: SFD-PI3K
Payment & Shipping Terms:
Minimum Order Quantity: 50pcs
Price: Negotiable Price
Packaging Details: Carton
Delivery Time: 10-30 Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10000pcs

PV Agricultural Systems 3KW Solar Pump Inverter With MPPT 2 DC Inputs

Description
Product Name: Pure Sine Wave Solar Power Pumping Inverter Output Power:: 3000W
Max.Output Current: 8A AC Output Voltage: 380Vac\3PH
Application: Solar System, Home Power System, Solar Pumping Efficiency: 95%
High Light:

PV Agricultural Systems Solar Pump Inverter

,

3KW Solar Pump Inverter

,

MPPT Pure Sine Wave Power Inverter

3KW Solar Pump Inverter with MPPT 2 DC Inputs for Solar Power System PV Agricultural Systems



Solar Pump Inverter Characters

1. Easy configuration with solar panels by MC4 terminals, plug and play.
2. Fully automatic intelligent operation, safe and stable, to prevent drainage and overflow.
3. Protection class IP65, waterproof and dust-proof, suitable for harsh environments.
4. Interface visualization, LCD screen and LED status indicator display.
5. Maximum efficiency up to 97%, MPPT efficiency up to 99%.
6. Supports GPRS-RS485 (optional) monitoring.PV Agricultural Systems 3KW Solar Pump Inverter With MPPT 2 DC Inputs 0
7. In-line design, AC aviation anti-stay plug, installation is fast and convenient.



Solar Energy System Pumping InverterParameters:

Model SFD-PI3K
Input(DC side)
Max DC Voltage(Vdc) 900Vdc
Start-up Voltage (Vdc) 250Vdc
Max Input Current (A) 12.5A
MPPT Operating Range(Vdc) 450Vdc-750Vdc
Number of Inputs 2
Output(AC side)
Rated Output Power(W) 3000W
Max Output Current (A) 8A
AC Output Voltage(Vac) 380Vac3PH
Output frequency (Hz) 0~50/60Hz
Other Parameters
Noise typical[dB(A)] <45dB(A)
Cooling Concept Natural cooling
Operating Temperature(℃) -25℃~+60℃
Protect Level IP65
Communication GPRSIRS485
Dimension(W*H*D mm) 410*346*160mm
Weight (Kg)REF 12Kg
