Product Details:
|
| Iteｍ Name: | PERC Monocrystalline Solar Panel | Solar Cell Size: | 144 Cell (6×24) 10BB |
|---|---|---|---|
| Max. Power: | 550W | Application 1: | 10KW 10MW Solar Energy Station |
| Max. Static Load: | 5400P | Open-Circuit Voltage: | 37.09-37.29V |
| Solar Glass: | 3.2mm High Transmission | IP Grade: | IP68 Rated |
| High Light: | Monofacial Solar Panel 550W,Half Cell Solar Panel 550W,Monofacial Customized Solar Panels |
||

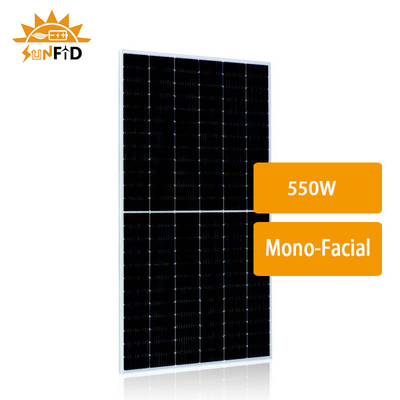

Residential Energy Storage System 550W PERC Half cell Mono-Crystalline Monofacial High Efficiency Solar Module
Solar Panel 550W 540W Description
The front adopts a high-density battery arrangement, which makes it more beautiful in appearance. Maximum system voltage:1500VDC
Each part of the PV module is fixed to avoid collision and friction between the Aluminium frames.
Modules Per box: 31pcs. Modules per container: 620pcs/40HQ,205pcs /20GP
550W 545W Mono Solar Panel Application:
Suitable for off grid system, on grid system & hybrid system. Such as: 10KW 5KW home solar power system. Compatible with on-grid solar inverter and off grid solar inverter and solar system battery
Mono Solar Panel System Configuration:
| ELECTRICAL SPECIFICATION (STC) | |
| Max-power | 550 |
| Power Tolerance | 0~+6W |
| Voltage at Pmax (Vmp) | 41.3 |
| Current at Pmax (Imp) | 13.32 |
| Open-Circuit Voltage(Voc) | 49.62 |
| Short-Circuit Current (lsc) | 14.03 |
| Module Efficiency(%) | 21.29 |
| No. of Bypass Diodes(pcs.) | 3 |
| Max. Series Fuse(A) | 25A |
| Operating Temperature | - 45~+85 ℃ |
| Max Static Load | 5400P |
| Max-System Voltage(VDC) | 1500 VDC(IEC) |
| Fire Rating | Class C |
| STC: Irradiancec 1000W/m2, Cell Temperature 25 ℃,Air Mass 1.5 | |
| MECHANICAL SPECIFICATION | |
| Solar cells | Mono Crystalline 182×91 mm |
| 144 Cell (6×24) — 10BB | |
| Module Dimension(mm) | 2278×1134×35 |
| Weight | 28.5 kg |
| Front Glass | 3.2mm High Transmission.LowlronTempered Glass |
| Construction Encapsulation: EVA | EVA |
| Back Sheet | White |
| Junction Box | IP68 Rated |
| Connector | MC4/MC4 equivalent |
| Calble | Φ=4mm2, L=300±5mm |
FAQ:
Q: Could we import whoe solar energy system kits?
A: Yes. We are a manufacturer of solar panel kits and solar power system kits, such as energy storage battery, solar inverters and solar panels. Suitable for solar power generator systems
Q: Are solar panel really worth it?
A: We can receive numerous benefits: lower electric bills, lower carbon footprints, and potentially higher home values.
Q: Is it possible to OEM customize the solar panels and the packaging with our logos?
A: Yes, OEM/customizing is warmly welcome for bulk orders. Just tell us your idea!
