Product Details:
|
| Model Number: | OKMTR01 | Nominal Voltage: | 6Volts |
|---|---|---|---|
| Nominal Capacity: | 6Ah | Energe: | 38.4Wh |
| Cycle Life: | 2000 Cycles | Charging Current: | 1.2A |
| High Light: | 6V Motorcycle Lithium Battery,Motorcycle Lithium Battery 6Ah,Lifepo4 talentcell rechargeable |
||

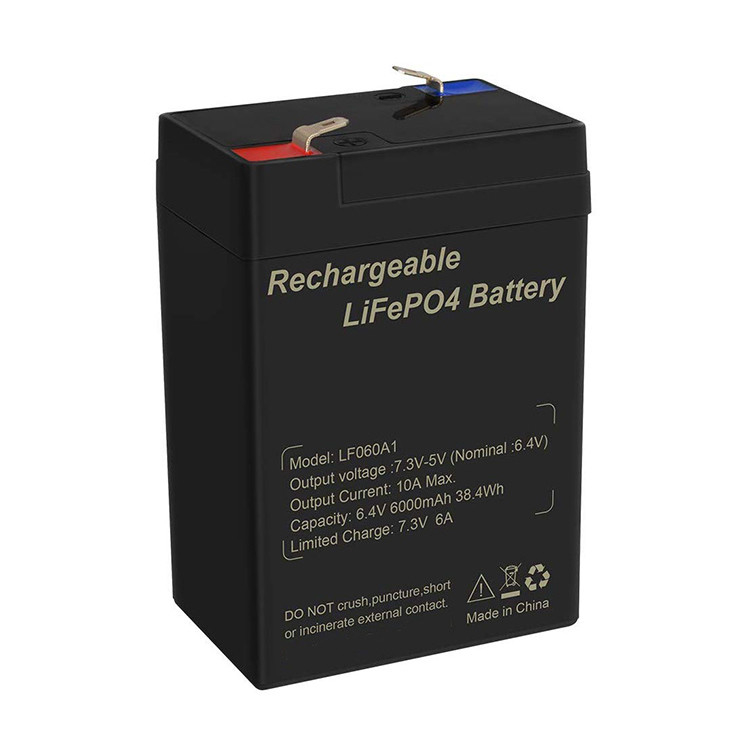

Motorcycle Lithium Battery TalentCell Lifepo4 Battery Manufacturing Solar System Lithium Ion Battery Lifepo4 6v
Overview
Quick Details
Warranty: 3years
Application: Power Tools, UPS,Solar&Wind Power System,E-Bike,E-rickshaw
Battery Size: 32700
Brand Name: OKTANMAX
Certification: CE/IEC/RoHS/UN38.3/FCC
Model Number: OKMTR01
Place of Origin: Guangdong, China
Weight: 0.4kg
Nominal Voltage: 6Volts
Nominal Capacity: 6Ah
Energe: 38.4Wh
Cycle life: 2000 Cycles
Charging Current: 1.2A
Water Dust Resistance: IP55
Cell&Format: IFR32700 2S1P
Casing: Plastic
Discharge Cut-off Voltage: 5.0v
Terminal: F2
Supply Ability
10000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Safety industrial package.
Standard export package per pieces .
To be negotiated.(Pallet-Container)
Port: Shenzhen or Hongkong
Specification
| Electrical Characteristics |
Nominal Voltage | 6V |
| Nominal Capacity | 6Ah@0.2C | |
| Energy | 38.4Wh | |
| Internal Resistance | ≤80mΩ | |
| Cycle Life | 2000 Cycles @ 0.2C Charging/Discharging ,Until 70% Capacity | |
| Self Discharge | ≤3.5% per month at 25℃ | |
| Standard Charging | Charging Voltage | 7.3~7.5V |
| Charging Mode | At 0℃~45℃ temperature, charged to 14.6V at a constant current of 0.2C, and then,changed continuously with constant voltage of 14.6V until the current was not more than 0.02C | |
| Charging Current | 1.2A | |
| Max.Charging Current | 3A | |
| Standard Discharging | Discharging Current | 1.2A |
| Max. Continuous Current | 10A | |
| Max.Pulse Current | 20A(<3S) | |
| Discharging Cut-off Voltage | 5.0 | |
| Operating Condition | Charge Temperature | 0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity |
| Discharge Temperature | -20℃ to 60℃(-4℉ to 140℉) @60±25% Relative Humidity | |
| Storage Temperature | 0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity | |
| Water Dust Resistance | IP55 | |
| Structure | Cell & Format | IFR32700 ,2S1P |
| Casing | Plastic | |

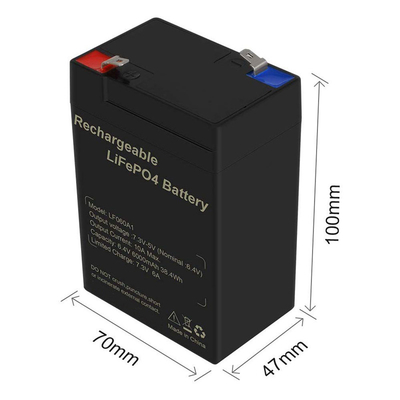

| Dimension(L*W*H*TH) | 70*47*102*105 | |
| Weight | Approx.0.4Kg | |
| Terminal | F2 |
Product Advantage
◆ Using the technology of lithium iron phosphate cell, superior safety, thousands of cycles, 100%DOD, under normal conditions.
◆ Built-in automatic protection for over-charge, over discharge, over current and over temperature.
◆ Free of maintenance .
◆ Internal cell balancing.
◆ Lighter weight: About 40% ~50% of the weight of a comparable lead acid battery.
◆ Can be charged using most standard lead-acid charges (set).
◆ Wider temperature range:-20℃~60℃.
◆ Support for Series application expansion (up to 51.2V) and two in parallels.
FAQ
Q1. Can I have a sample order?
A. Yes, we welcome sample order to test and check quality.
Q2. What about the lead time?
A. Sample needs 3 days, mass production time needs 5-7 weeks, it depends on order quantity.
Q3. Do you have any MOQ limit?
A. Yes, we have MOQ for mass production, it depends on the different part numbers. 1~10pcs sample order is available. Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A. It usually takes 5-7 days to arrive. Airline and sea shipping is also optional.
Q5. How to proceed with an order?
A. Firstly let us know your requirements or application. Secondly, We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places a deposit for formal order. Fourthly We arrange the production.
Q6. Is it OK to print my logo on the product?
A. Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7.Which certificates do you have?
A:We have CE/FCC/ROHS/UN38.3/MSDS ...etc.
Q8.How about warranty?
A:3 year warranty.
