Product Details:
|
| Model: | 48V 105Ah 200Ah | Nominal Voltage: | 51.2V |
|---|---|---|---|
| Nominal Capacity: | 72AH/105Ah | Energy: | 3840Wh/5376Wh |
| Max. Cont. Discharge: | 100A | Dimensions: | 258mm*311mm*335mm（Can Be Customised) |
| High Light: | koeok Lifepo4 Golf Cart Lithium Battery Pack,koeok Golf Cart Lithium Battery Pack 48V,koeok 100AH 48v lithium battery pack for golf cart |
||

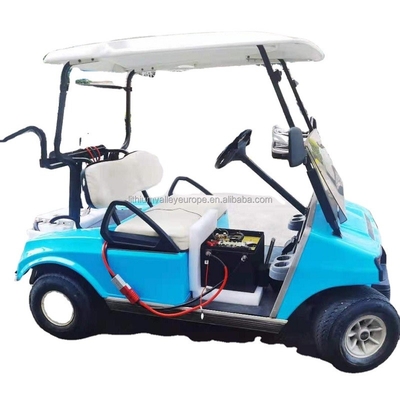

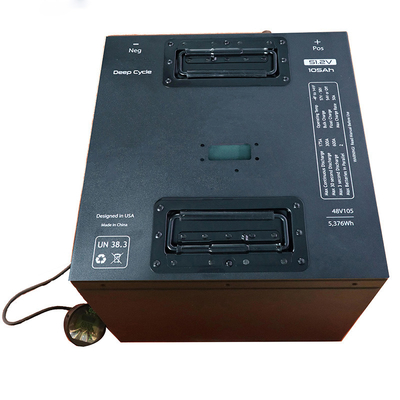

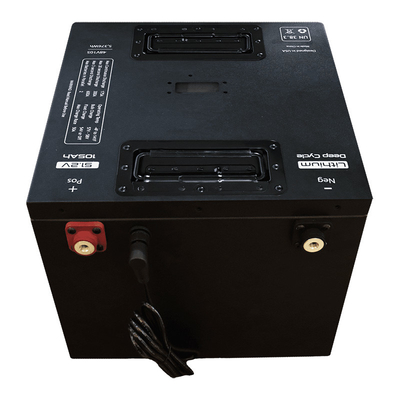

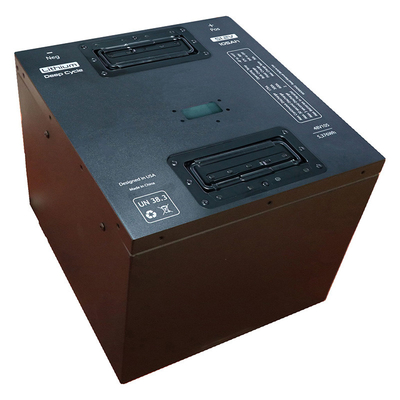

Golf Cart Lithium Battery Pack LiFEPO4 48V 100AH 105AH 200AH lithium ion batteries with Communication
ELECTRICAL SPECIFICATION
Nominal Voltage :51.2V Nominal Capacity:72AH/105Ah Energy:3840Wh/5376Wh
Resistance:≤50mΩ Efficiency:99% Self Discharge:＜3% per month
DISCHARGE SPECIFICATIONS
Max. Cont. Discharge:100A Peak Discharge Current:200A Recommend Cut-off voltage:42V
CHARGE SPECIFICATION
Recommended Charge Current:20-40A Max. Charge Current:100A Recommended Charge Voltage:58.4V
Charge Current (-20 to -10 ºC):≤0.05 C
MECHANICAL SPECIFICATIONS
Dimensions(L*W*H):258mm*311mm*335mm(Can be customised) Weight:32KG/42KG
Case Material:Metal Enclosure Protection:IP42
TEMPERATURE SPECIFICATION CHARGE SPECIFICATION
Discharge Temperature:-20ºC to 60 ºC Charge Temperature:0 ºC to 55 ºC
Storage Temperature:-20ºC to 40 ºC BMS High Temperature:75 ºC
Specification:
| Model | LV48100 | ||||
| Nominal voltage | 51.2V | ||||
| Rated capacity | 100AH | ||||
| Battery impedance | ≤50mQ | ||||
| Shipment voltage | 48-58V | ||||
| Limited charging voltage | 58.4V | ||||
| Maximum Charging Current | Ambienttemperature | Relativehumidity | Chargingcurrent | Limitedchargingvoltage | Cut-offcurrent of CV |
| 0°℃～15°C | 65±20% | Max.0.2C | Max. 58.4V | 0.005C | |
| 15°C～45°C | 65±20% | Max.0.5C | Max. 58.4V | 0.005C | |
| Recommendation ChargingCurrent | 0.5C 50A | ||||
| Recommendation DischargingCurrent | 0.5C 50A | ||||
| Maximum Discharging Current | 1C 100A | ||||
| Discharge cut-off voltage | 40v | ||||
| Battery weight (Approx.) | 45.5kg | ||||
| Working temperature range | Charge:0℃C～45°℃ | ||||
| Discharge:-20°C～60°C | |||||
| Communication protocols | CAN,RS485,TCP/IP | ||||

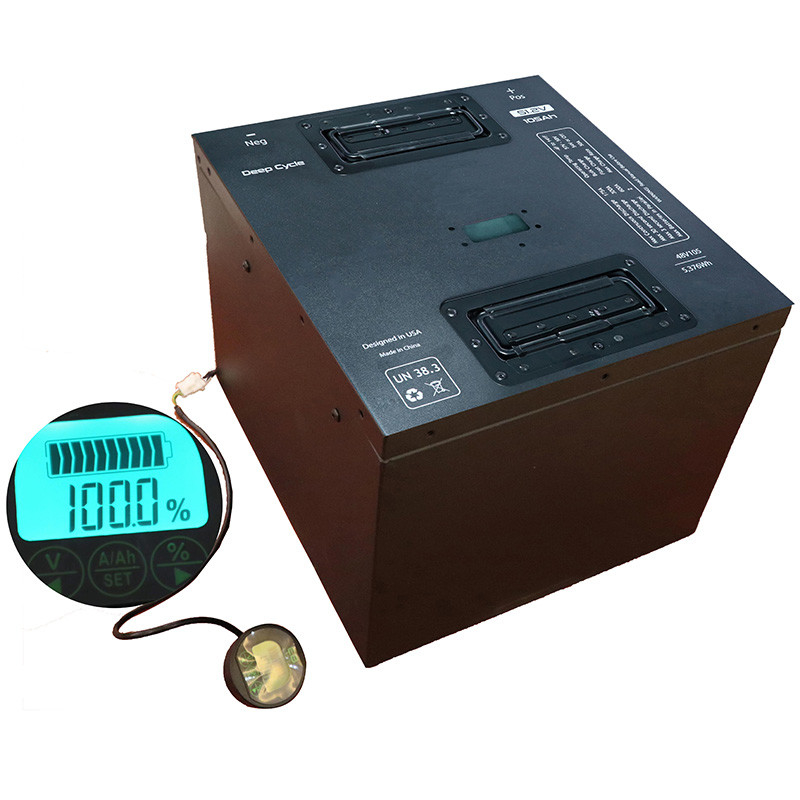

3 Display Ways
