Product Details:
|
Battery Name: | 72V 45AH Camping Vans Battery | Nominal Capacity: | 45Ah |
---|---|---|---|
Discharge Cut-off Voltage: | 55V | Weight: | 19.5kg |
Size: | 160*210*300mm | Protection: | Built-in Smart BMS |
OEM/ODM: | Acceptable | ||
High Light: | 45AH campervan lithium battery,72V campervan lithium battery,Golf Cart batteries for camper van |

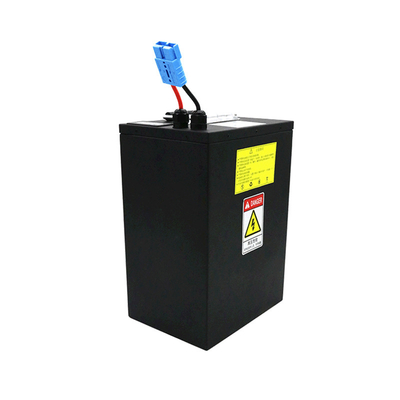

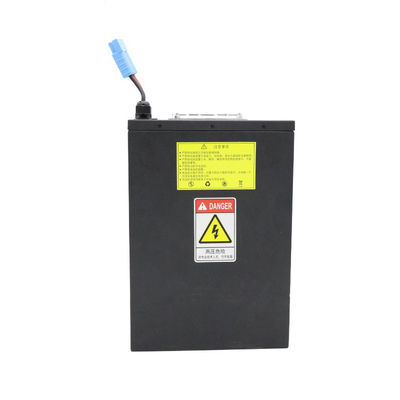

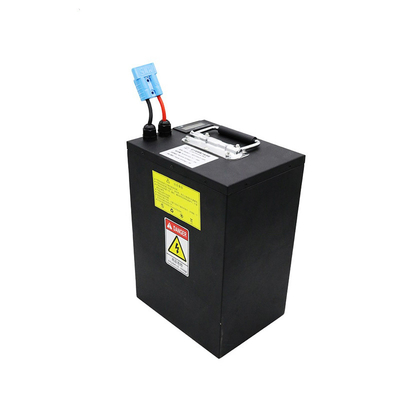

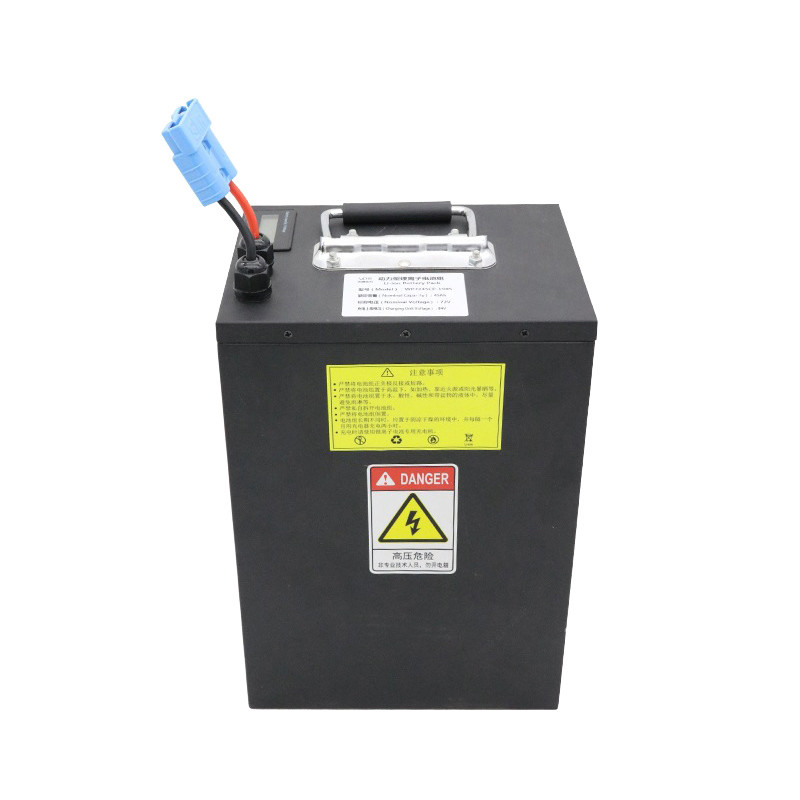

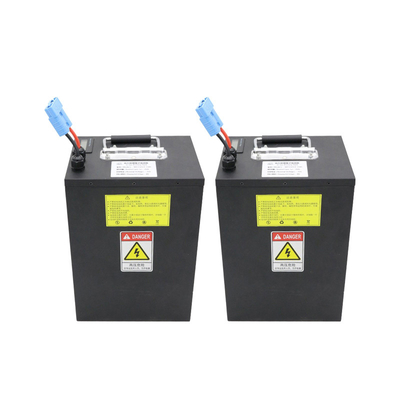

Campervan Lithium Battery 72V 45AH Portable Power Supply For Auto RV Campingvans Golf Cart
Product Advantages Description
Same size with lead acid battery ,easy to replace old battery, lifepo4 battery for golf cart ,RV ,solver system.Excellent large
current discharge performance especially in startup and climbing
Lithium Battery assembling instructions:
1. Lithium battery must be used with a protection board.
2. Battery cell series : voltage increase, capacity does not change.
3. Battery cell parallel: voltage does not change, capacity increase.
4. The protection board corresponding to the battery cell or battery pack: 3.7V-single use 3.7V protection board, 7.4V --string
Parameters:
Type | 72V 45Ah |
Nominal voltage | 72V |
Nominal Capacity | 45Ah |
Dimension | 160*210*300mm |
Max.discharge current | 1.0C |
Charge current | Standard Charging: 0.5C |
Rapid charge: 1.0C | |
Standard Charging method | 0.5C CC(constant current)charge to 84V, |
then CV(constant voltage 84V)charge till | |
charge current decline to ≤0.01C | |
Discharge cut-off voltage | 55V |
Operating temperature | Charging:0℃~45℃ |
Discharging:-10℃~60℃ | |
Storage temperature | -10℃~45℃ |
Weight | 19.5kg |
Certification | CE, ROHS, IEC, KC, UL, UN38.3, MSDS, BIS |
Application | Wireless Microphone, Smart electronics, Beauty Instrument, Wireless Camera and so |
FAQ:
Q1: Is this product safe?
A1: Passed the overcharge, over discharge, over temperature, short circuit, acupuncture and other safety tests,no fire, no explosion at any circumstance.
Q2: How to confirm the high quality of the product you sent me?
A2: Our batteries are all grade A, No matter how many you order, we will test each product before sending out.
Q3: The battery is so heavy, will it damaged easily on the road?
Q3: This is also a matter of great concerm to us. After long-term improvement and verification, our packaging is now very safe and reliable. When you open the package, you will definitely feel our sincerity.
