Product Details:
|
| Battery Name: | 24V 200AH LiFePO4 Battery | Nominal Capacity: | 200Ah |
|---|---|---|---|
| Energy Power: | 4800Wh | Battery Cell: | LifePO4 Cell |

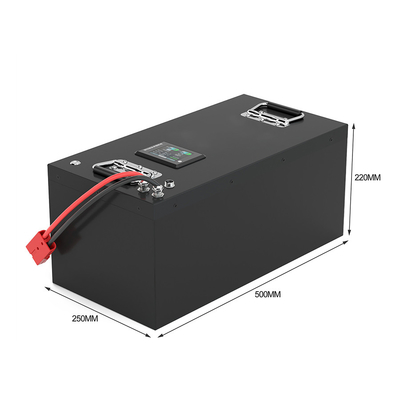

| Size: | 500mm*250mm*220 Or Customized | Apllication: | RV/Golf Cart/Yacht/Marine/Backup/Solar Storage |
| Protection: | Built-in Smart BMS | ||
| High Light: | 200AH lithium power supply for campervan,24V lithium power supply for campervan,4800Wh lithium ion battery for camper van |
||

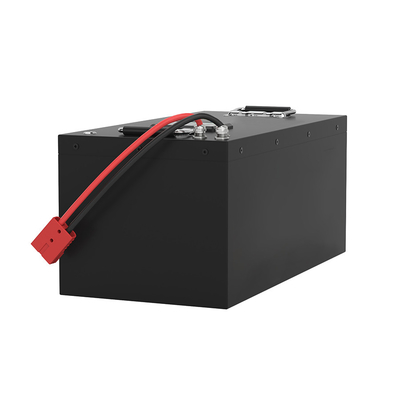

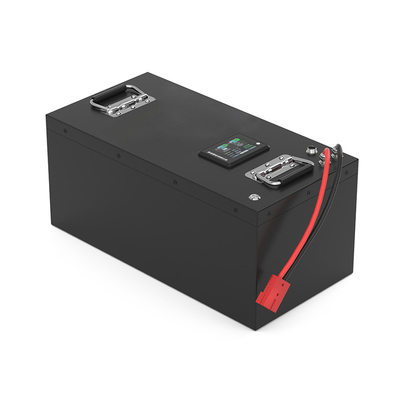

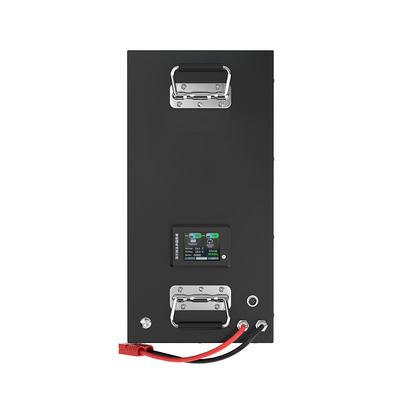

Campervan Lithium Battery 24V 200AH Battery Supply For Outdoor Camping RV/Van Home Backup Emergency
Product Advantages Description
1. The built-in BMS system can perfectly protect the internal structure of the battery.
2. WATERPROOF, Injection molding makes the housing and coverhermetically closed,prevent the battery from rain drops.
We can provide diversified lithium battery customization services! Please provide size and capacity!
1. Customized battery size and shell material.
2. Customized BMS charging and discharging current.
3. Customized connect plug and socket, connector wire.
Parameters:
| Norminal Battery Energy | 4800wh |
| Norminal Capacity | 200Ah |
| Norminal Voltage | 24V |
| Internal Resistance | ≤22mΩ |
| Cycle Life | >6000 |
| Months Self Discharge | <3% |
| Charge Data | |
| DC Normal Charge Voltage | 54.75±1Vdc |
| Charge Mode | 0.2C to 54.75V, then 54.75V,charge current to 0.02C (CC/CV) |
| Recommended Charger Current | ≤50A |
| Allowed Max. Charge Current | 50Adc |
| Charge Cut-off Voltage | 54.75±1Vdc |
| Discharge Data | |
| Continuous Discharge Current | 50A |
| Allowed Max. discharge current | 100A (option:100Adc) |
| Rang of DC discharge voltage | 37.5V-54.75Vdc |
| Working Condition | |
| Charge Temperature | 0℃ to 45℃ (32℉ to 113℉) @60±25% Relative Humidity |
| Discharge Temperature | -20℃ to 60℃ (-4℉ to 140℉) @60±25% Relative Humidity |
| Storage Temperature | 0℃ to 40℃ (32℉ to 104℉) @60±25% Relative Humidity |
| Enclosure Protection Level | IP20 |
| Mechanical Data | |
| Cell & Method | 48V100Ah, Prismatic |
| Shell material | Iron |
FAQ:
Q1:Can I have samples to test? And what is lead time for sample order?
A1:Yes,we can supply samples,the lead-time for samples is 7-10 days.and buyer pay for sample cost and shipping cost.
Q2: Is this product safe?
A2: Passed the overcharge, over discharge, over temperature, short circuit, acupuncture and other safety tests,no fire, no explosion at any circumstance.
Q3: what can you buy from us?
A3 LiFePO4 Battery Pack,Lithium Ion Battery,Replacement SLA Battery,Motorcycle Starting Battery,Energy Storage Battery
Q4: How to confirm the high quality of the product you sent me?
A4: Our batteries are all grade A, No matter how many you order, we will test each product before sending out.
