Product Details:
|
| Material: | Plastic | Battery Type: | Lifepo4 Lithium Battery |
|---|---|---|---|
| Voltage: | 12.8V | Capacity: | 200Ah |
| Cycle Life: | 2000 | Energy: | 2560Wh |
| Output Voltage Range: | 10V~14V | ||
| High Light: | 200A lithium ion battery ups,lithium ion battery ups Lifepo4,12V ion ups |
||

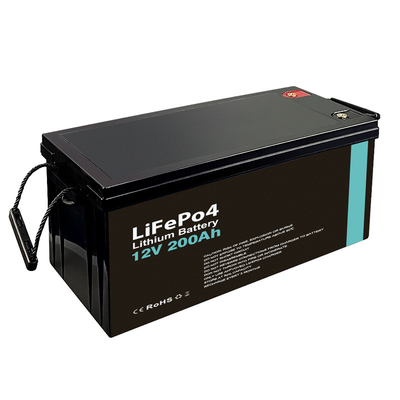

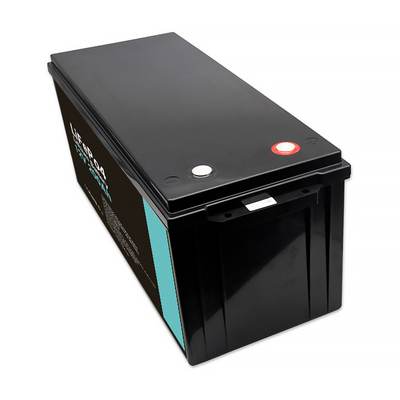

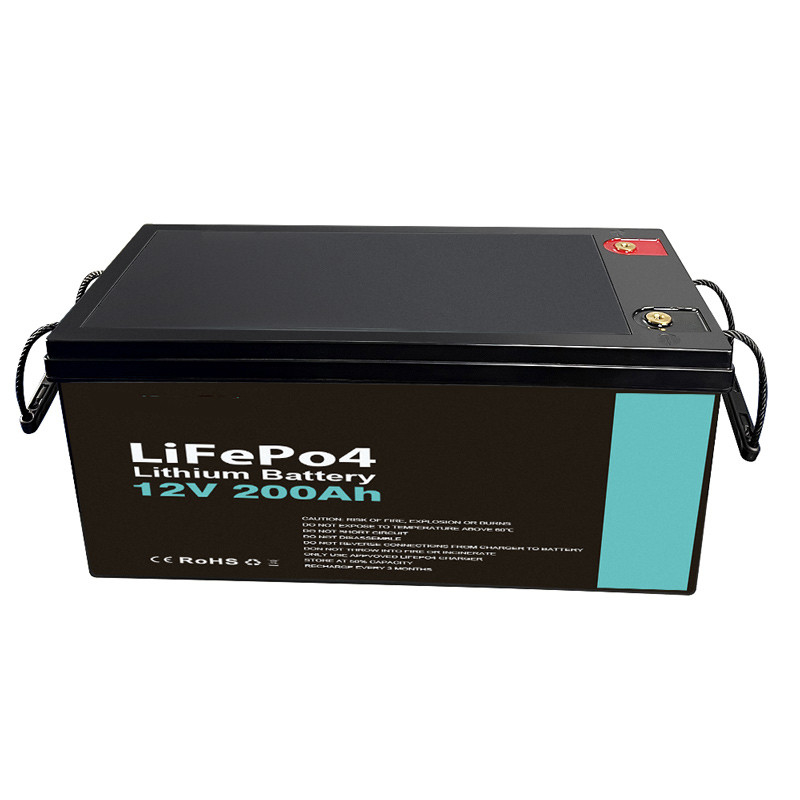

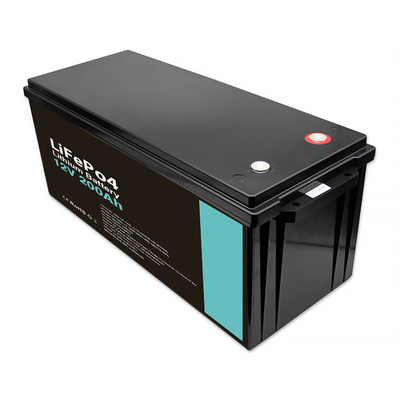

UPS Lithium Battery 12V 200A Lifepo4 Battery For UPS System/CCTV Monitor/Camping
Product Description:
1. Safety: safest Li-Ion battery, CE ROSH approved, built in PCM/PCB, none fire or explosive
2. Clean and Green energy, no toxic material contained
3. Powerful: Battery can discharge in 15C~20C
4. Long life cycle, 80% capacity remain after 500 times deep cycle.
5. No memory effect,highly efficient charge anytime, no reduction of capacity
6. Operation temperature: -20~70°C
Application:
Lithium iron phosphate battery module which designed for UPS, solar system, portable devices, energy storage and medical cart applications.
Parameters:
| Model | LFP-12200 |
| Rated Voltage | 12.8V |
| Rated Capacity (0.2C, @25°C) | 200AH |
| Rated Energy | 2560Wh |
| Operating | |
| Output Voltage Range | 10V~14V |
| Charging Voltage | 13.8V~14.2V |
| Cut-off Voltage | 10V |
| Max. Charging Current | 100A |
| Recommended Charging Current | <100 A |
| Max. Discharging Current | 100A |
| Efficiency | >99% |
| Physical | |
| Dimention L*W*H (mm) | 485*170*240 |
| Weight (kg) | 20.3 |
| Terminal Type | M8 |
| Case Material | ABS |
FAQ:
Q1: What are there included for a battery or pack, may I buy charger from you?
A1: Battery case, BMS, battery pack, can buy customzied connector, charger.
Q2: How long frequency does recharge the battery?
A2: Usually per 2 months to recharge the battery pack , to charge full the battery depends on the charger current you use. 20A charger can charge full for 12V 100Ah battery in 5 hours, fast charger 50A in 2 hours.
