Product Details:
|
| Product: | 48V100Ah 5U Telecom Battery | Battery Type: | LifePO4 Battery |
|---|---|---|---|
| Input Voltage: | 51-54V | Capacity: | 100Ah |
| Dimension: | 440*410*89mm | Communication: | Option Of CANBUS OR RS485, SMbus |
| Application: | Apply To Old And New Battery System | ||
| High Light: | CE 51-54V 100Ah telecommunication battery,CE 100Ah telecommunication battery 51-54V,CE 51-54V telecommunication battery 100Ah |
||

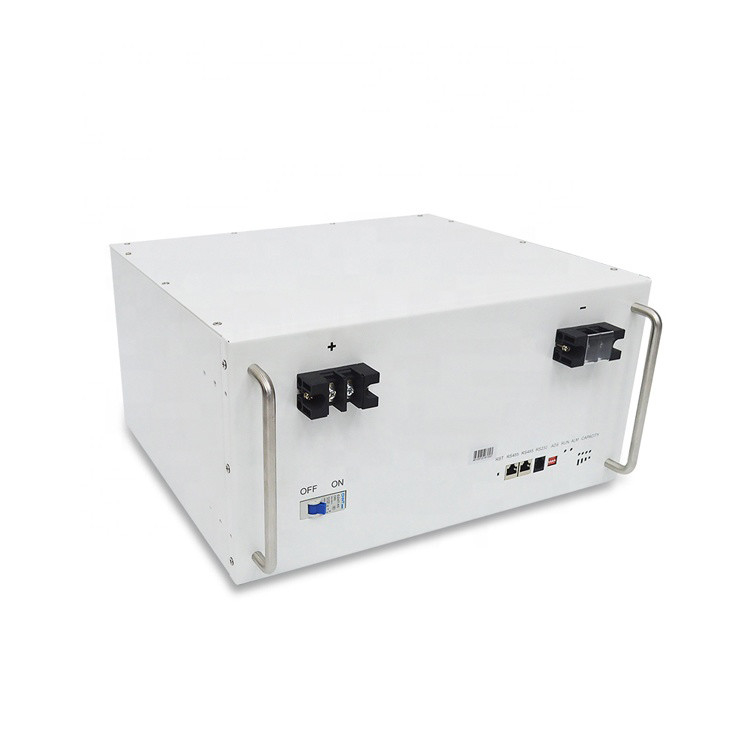

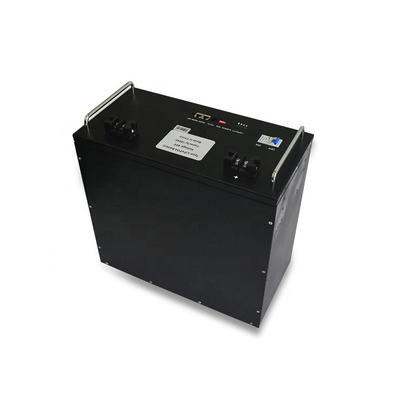

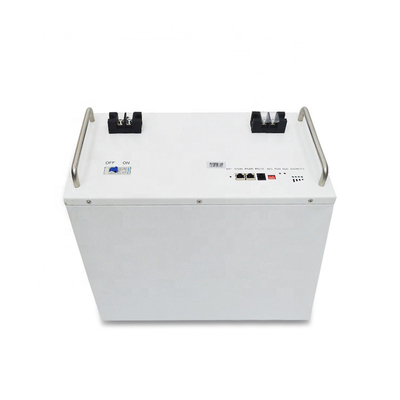

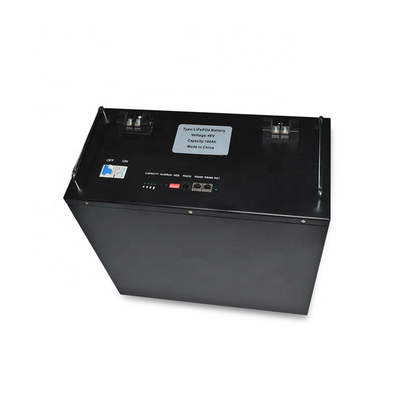

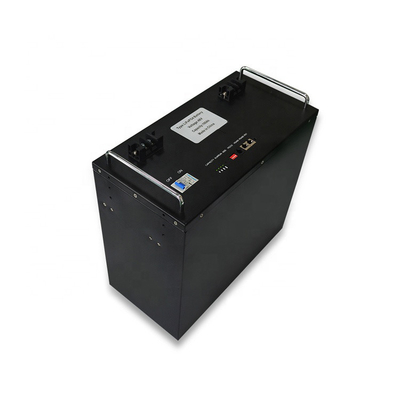

Telecom Lithium Battery 48V 100Ah 5U 5G Base Station Energy Storage Smart UPS Battery
Product Description:
1. It is high integrated with less installation space.
2. Long life cycle, >3000 times at 80% .
3. It without heavy metals and environment friendly.
4. Maintenance free,there is no memory effect.
5. Internal BMS with full ,battery has high voltage with higher reliability
Application:
1. Energy Storage: Solar-Wind Power System
2. Back-up System and UPS
3. Other Applications: Security and Electronics / Mobile POS, Mining Lihgt / Torch / LED Light / Emergency Light
Parameters:
| Items | 48100-5U |
| Cell Technology | Lifepo4 |
| Capacity (kWh) | 5120 |
| Voltage (Vdc) | 48 |
| Capacity (AH) | 100 |
| Charge Voltage (Vdc) | 58.4 |
| Battery System Charge Current (Standard) | 10A |
| Charge Current (Normal) | 20A |
| Charge Current (Max.) | 50A |
| Discharge lower-Voltage (Vdc) | 46V |
| Discharge Current (Standard) | 20A |
| Discharge Current (Normal) | 100A |
| Discharge Current (Max.) | 250A |
| Efficiency | 98% |
| Depth of Discharge | 100% |
| Dimension (L*W*H, mm) | 440*480*220 |
| Communication | Option of CANBUS OR RS485, SMbus |
| Weight | 65.5KG |
| Operation Cycle Life | Over 4000 times |
| Operation Temperature | 0-50℃ |
| Storage Temperature | minus 20 -- 60 ℃ |
FAQ:
1. How can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment;
2. What can you buy from us?
Lithium Battery,Motorcycle Starting Battery,Inverter,BMS,Solar Panel
3. Why you should choose to cooperate with us?
Rich experience in power solution for large business project.
Long history in research&production in Lithium Battery, Lifepo4 battery and portable power station.
Extreme Test condition to control quality.
