Product Details:
|
Model Number: | OKLFP20A | Size: | 7*161*227mm |
---|---|---|---|
Cycle Life: | 3000 Times | Weight: | 495g |
The Charging Ratio: | 1C | The Discharge Rate: | 3C |
High Light: | 20Ah Lifepo4 Battery Cell,Lifepo4 Battery Cell 25Ah,3.2V Lifepo4 Pouch Cell |

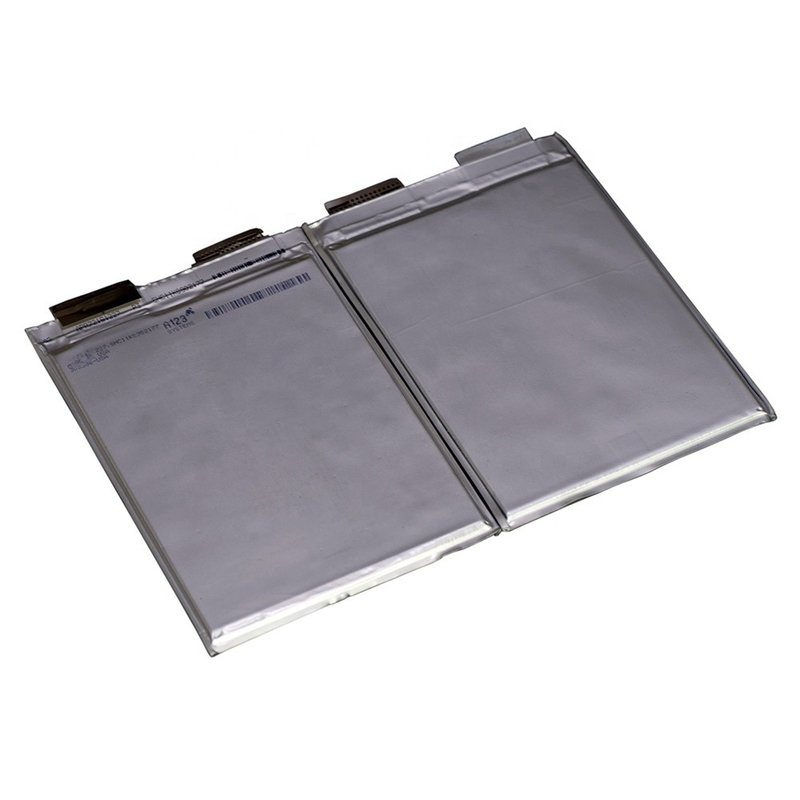

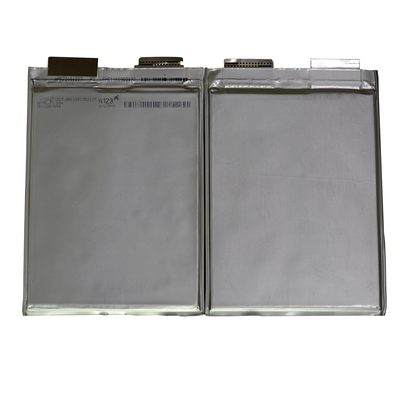

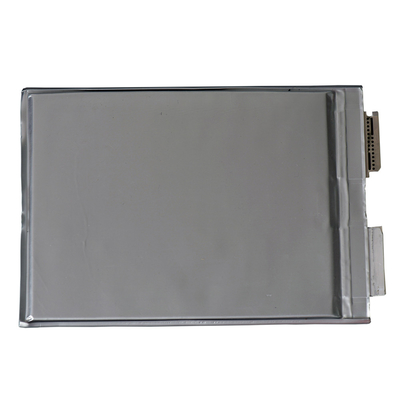

Lifepo4 Battery Cell Factory 3.2V 20Ah 25Ah Lifepo4 Pouch Cell Rechargeable Battery
Overview
Quick Details
Warranty: 3years, 2 years
Anode Material: LFP
Chargeable: Yes
Application: Toys, Power Tools, Home Appliances, Consumer Electronics, BOATS, Golf Carts, Electric Bicycles/Scooters, Electric Folklifts, electric vehicles, Electric Wheelchairs, Electric Power Systems, Solar Energy Storage Systems, Uninterruptible Power Supplies
Battery Size: lifepo4
Brand Name: OKTANMAX
Certification: CE
Model Number: OKLFP20A
Place of Origin: Guangdong, China
Weight: 495g
The charging ratio: 1C
The discharge rate: 3C
Size: 7*161*227mm
Cycle life: 3000 times
Use: solar system/storage/ev/rv/boat
Payment: T/T paypal
Type: lifepo4 lithium battery cell
Product name: 3.2V 20Ah 25Ah Lifepo4 Pouch Cell Rechargeable Battery
Capacity: 25AH OR more
Supply Ability: 10000 Piece/Pieces per Day Factory 3.2V 20Ah 25Ah Lifepo4 Pouch Cell Rechargeable Battery
Packaging & Delivery
Packaging Details: Standard export package, box case with pearl cotton inside to protect battery
Port: Shenzhen/HK
Solar System 3.2v 20ah Lifepo4 battery cellFactory 3.2V 20Ah Lifepo4 pouch cell rechargeable battery
Attention!!
KOEOK Factory Offer you:
1:ORIGINAL FACTORY DIRECT LOWEST PRICE.
2:NICE QUALITY. PASS CERTIFICATION
3:WITHOUT MOQ. SMALL SAMPLE ORDER WELCOME.
4:QUICK SHIPPING WITHIN 7 DAYS.
5:ONLINE PAYMENT
6:FACTORY 1 YEAR WARRANTY, SUPPORT 7 DAYS REFUND.
7:AFTER SALES SERVICES 24 HOURS.
Product Description
High quality lithium polymer Lifepo4 cell 3.2V 20Ah,with high quality,high cycle life,high energy desity,can be widely used for electric vehicles
Nominal Voltage | 3.2V |
Nominal Capacity | 19.6Ah |
Standard Charge Current | 0.2C-0.5C |
Max. Charge Current | 5C |
Continuous Discharge current | 30C |
Peak Discharge Current | 60C |
Charge Cut-off Voltage | 3.9V |
Discharge Cut-off Voltage | 2.0V |
Inner Resistance (Impedance) |
≤2mΩ |
Weight | 495g |
Dimensions |
Length:227 mm Width:161 mm Thickness: 7.0 mm |
Operating Temperature |
Charging: 0°C ~ 45°C Discharging: -20°C ~ 60°C (The cell surface temperature cannot exceed 70°C) |
Storage Temperature/Humidity |
Temperature: -10°C ~ +35°C Humidity:65%±20%RH (optimal store temperature of 23 ± 5°C for long term storage) |
Cycle Life | ≥2000 times (100% DOD till 80% of initial capacity at 0.2C rate, IEC Standard) |
Feature:
1.Long life, large capacity and good shock resistance
2.Low self-discharge and good discharge performance at low temperature
3.Strong charging acceptance and quick-charging capability
4.Strong over-discharge resistance and charge retention
5.Maintenance-free and no acid or water for maintenance in usage
6.Excellent large current discharge performance, and have obvious advantages in startup and climbing
7. High temperature performance
8. Environmental friendly
9. Lighter weight smaller size
Applications:
· Passenger and commercial plug-in hybrid electric vehicles (PHEVs)
· Passenger and commercial battery electric vehicles (BEVs)
· Mild and micro hybrid vehicles
· Long-Duration (LD) grid energy storage systems

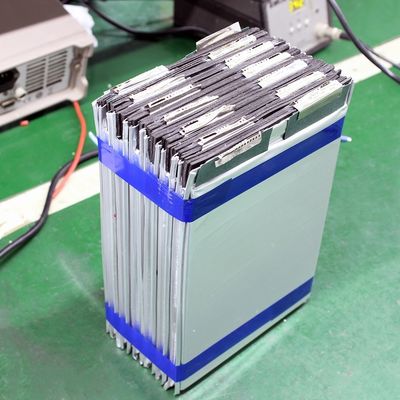

Lithium Battery Packs made by OKLFP20A 20Ah cells are applicable for the following transportations;
Application
1) Electric vehicles and charging stations, tourist coaches, yachts, wind and solar energy storage power, traffic signals
2) Solar hybrid street lighting, UPS power supply, home storage
3) Coal, disaster relief emergency, weather radar, electricity, smart grid, communication base stations
4) Hospitals, finance, telecommunications , system critical backup power systems
