Product Details:
|
| Features: | Deep Cycle 2000 Times | Color: | Black Grey Or Custom |
|---|---|---|---|
| Charge Current: | 1C | Capacity: | 100Ah,Real Capacity |
| Oem/odm: | Available | Battery Name: | LiFePO4 12v 200ah Battery,24v 120ah Battery |
| High Light: | 3.6Kwh Solar Generator Lithium Battery,2.4Kwh Solar Generator Lithium Battery,Removable Lithium Iron Phosphate Battery |
||

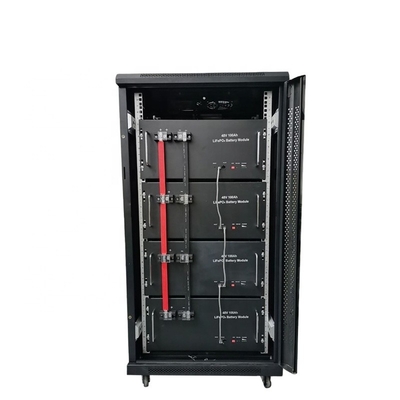

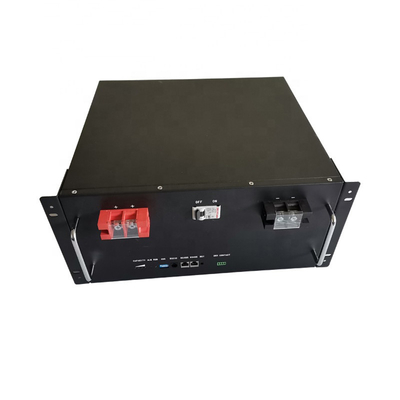

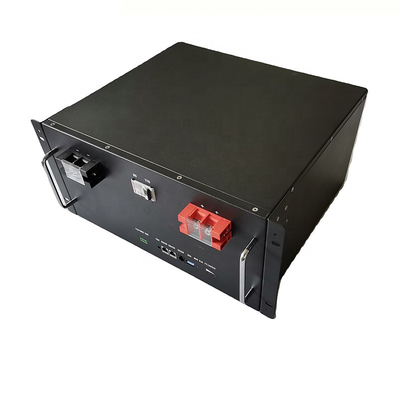

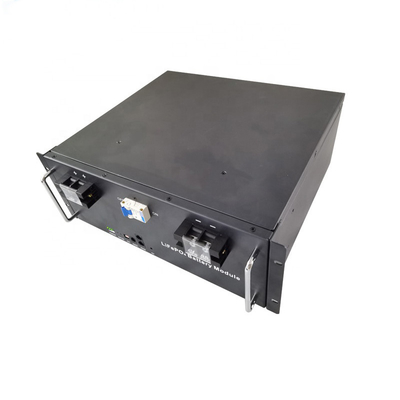

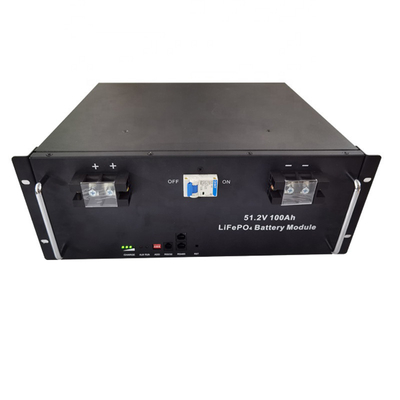

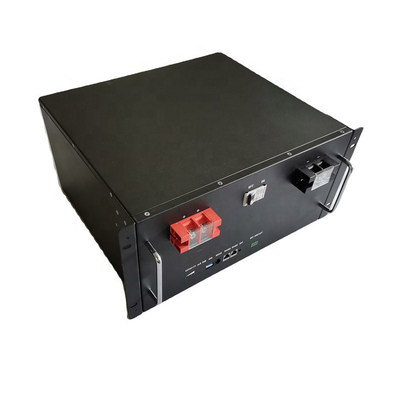

Solar Generator Lithium Battery Rechargeable 2.4Kwh 3.6Kwh 5Kwh 7Kwh 10Kwh Removable Lithium Iron Phosphate Battery
Overview
Quick Details
Place of Origin: China
Brand Name: OKTANMAX
Model Number: OK5120
Voltage: 51.2V
Capacity: Customised
Dimension: Customised
OEM/ODM: Warmly Welcomed
Cycle life: 3000 Times
Warranty: 3years
Application: Toys, Power Tools, Home Appliances, Consumer Electronics, BOATS, Golf Carts, SUBMARINES, Electric Bicycles/Scooters, Electric Folklifts, electric vehicles, Electric Wheelchairs, Electric Power Systems, Solar Energy Storage Systems, Uninterruptible Power Supplies
Battery Size: LFP51.2-100
Certification: CE-ROHS-MSDS-UN38.3/IEC
| Function Parameter | |
| Norminal Battery Energy | 5120wh |
| Norminal Capacity | 100Ah |
| Norminal Voltage | 48V |
| Internal Resistance | ≤22mΩ |
| Cycle Life | >6000 |
| Months Self Discharge | <3% |
| Charge Data | |
| DC Normal Charge Voltage | 54.75±1Vdc |
| Charge Mode | 0.2C to 54.75V, then 54.75V,charge current to 0.02C (CC/CV) |
| Recommended Charger Current | ≤50A |
| Allowed Max. Charge Current | 50Adc |
| Charge Cut-off Voltage | 54.75±1Vdc |
| Discharge Data | |
| Continuous Discharge Current | 50A |
| Allowed Max. discharge current | 100A (option:200Adc) |
| Rang of DC discharge voltage | 37.5V-54.75Vdc |
| Working Condition | |
| Charge Temperature | 0℃ to 45℃ (32℉ to 113℉) @60±25% Relative Humidity |
| Discharge Temperature | -20℃ to 60℃ (-4℉ to 140℉) @60±25% Relative Humidity |
| Storage Temperature | 0℃ to 40℃ (32℉ to 104℉) @60±25% Relative Humidity |
| Enclosure Protection Level | IP20 |
| Mechanical Data | |
| Cell & Method | 3.2V100Ah, Prismatic |
| Shell material | Iron |
| Dimensions | Customizable |
| Weight (lbs./kg.) | / |
Feature
1. Under normal conditions, using lithium iron phosphate battery technology, with excellent safety, thousands of cycles, 100% DOD.
2. Built-in automatic protection function to prevent overcharging, overdischarging, overcurrent and overheating.
3. Maintenance free.
4. Internal battery balance.
5. Light weight: about 40%~50% of the weight of lead-acid batteries.
6. Can be charged using most standard lead acid charge (set).
7. Wide temperature range: -20 ° C ~ 60 ° C.
8. Support for series application extensions (up to 512V)
