5KWH Lithium Iron Phosphate Generator 10KWH 20KWH 48V 150Ah Solar Energy System

I'm Online Chat Now

5KWH Lithium Iron Phosphate Generator 10KWH 20KWH 48V 150Ah Solar Energy System

5KWH Lithium Iron Phosphate Generator 10KWH 20KWH 48V 150Ah Solar Energy System
5KWH Lithium Iron Phosphate Generator 10KWH 20KWH 48V 150Ah Solar Energy System 5KWH Lithium Iron Phosphate Generator 10KWH 20KWH 48V 150Ah Solar Energy System 5KWH Lithium Iron Phosphate Generator 10KWH 20KWH 48V 150Ah Solar Energy System 5KWH Lithium Iron Phosphate Generator 10KWH 20KWH 48V 150Ah Solar Energy System

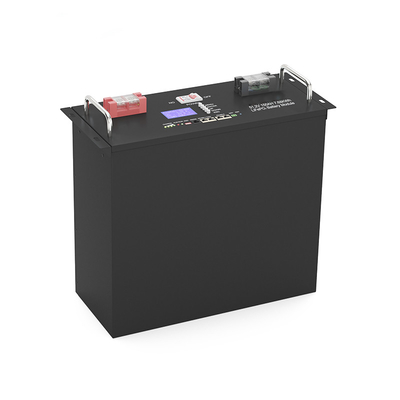

Large Image :  5KWH Lithium Iron Phosphate Generator 10KWH 20KWH 48V 150Ah Solar Energy System

Product Details:
Place of Origin: China
Brand Name: SUNFiD
Certification: CE,FCC,MSDS,ROHS,UN38.3
Model Number: OK7200
Payment & Shipping Terms:
Minimum Order Quantity: 50pcs
Packaging Details: Hard Paper Carton with Foam or Wooden case
Delivery Time: 10-30 Days
Payment Terms: L/C, T/T
Supply Ability: 1000pcs per month

5KWH Lithium Iron Phosphate Generator 10KWH 20KWH 48V 150Ah Solar Energy System

Description
Size: Customized Warranty: 3 Years
Application: UPS,Energy Storage,AGV,Solar Nominal Capacity: Customized
Weight: 50kg Capacity: 100Ah,Real Capacity
High Light:

10KWH lithium iron phosphate generator

,

CE lithium iron phosphate generator 10KWH

,

CE lithium iron phosphate generators 10KWH

Solar Generator Lithium Battery Pack 5KWH 10KWH 20KWH 48V 150Ah Solar Energy System Battery



Overview


Quick Details
Place of Origin:  Guangdong, China
Brand Name:  OKTANMAX
Model Number:  OK7200
Voltage:  48V
Capacity:  Customised
Dimension:  Customised
OEM/ODM:  Warmly Welcomed
Cycle life:  3500 Times+
Warranty:  3years
Application:  Toys





attery Specifications

Model No OK2400 OK5000 OK7200 OK9600 OK12000
Voltage 48 V 48 V 48 V 48 V 48 V
Capacity 50Ah 100Ah 150Ah 200Ah 250Ah
Energy 2.4KWH 5.12KWH 7.68KWH 10.24KWH 12.80KWH
Operation voltage 35.25-54.75 Vdc 37.6-58.4Vdc 37.6-58.4Vdc 37.6-58.4Vdc 37.6-58.4Vdc
Max.charging voltage 54.75Vdc 58.4 Vdc 58.4 Vdc 58.4 Vdc 58.4 Vdc
Max.charging and discharging current 50A 100A 100A 100A 100A
Max Power 2400W 5120W 7680W 10240W 12800W
Life time(25°C) 10 years
Life cycles(80% DOD, 25°C) 6000 Cycles
Storage time / temperature 5 months @ 25°C; 3 months @ 35°C; 1 month @ 45°C
Operation temperature -20°C to 60°C @60+/-25% Relative Humidity
Storage temperature 0°C to 45°C @60+/-25% Relative Humidity
Lithium Battery Standard UL1642, IEC62619, UN38.3, ROHS,CE-EMC
Enclosure protection rating IP65
Dimensions(L×W×H)mm 482*410*89 482*400*177 482*430*222 482*500*280 482*500*280
Weight 24KG 43KG 65KG 82KG 100KG

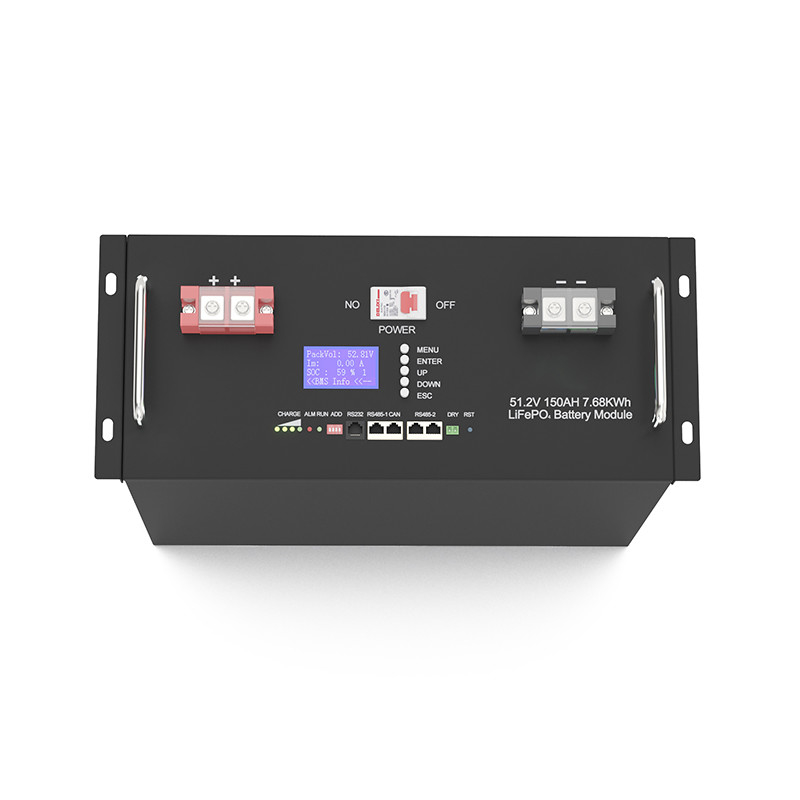

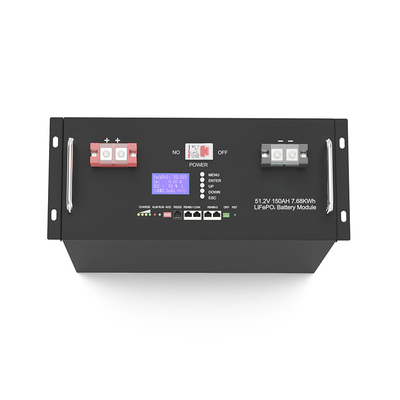

Monitor Digital Display
Battery is with digital display which allow users to monitor voltage of each serial of cells, battery’s rated voltage and
capacity, temperatures and BMS parameters etc.



Support max. 4 parallels
If without master control, it support max. 4 parallels for highest 20.48Kwh battery system; If with standard master controls, it can be paralleled and serialed with more batteries.





5KWH Lithium Iron Phosphate Generator 10KWH 20KWH 48V 150Ah Solar Energy System 0

5KWH Lithium Iron Phosphate Generator 10KWH 20KWH 48V 150Ah Solar Energy System 1
