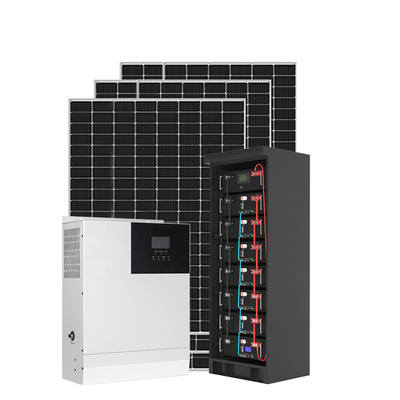

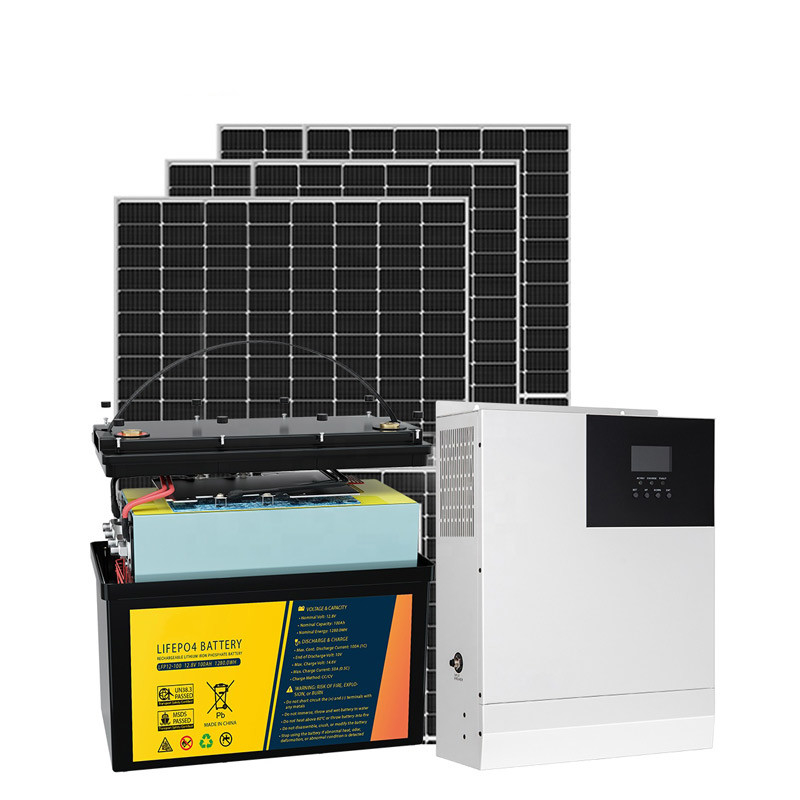

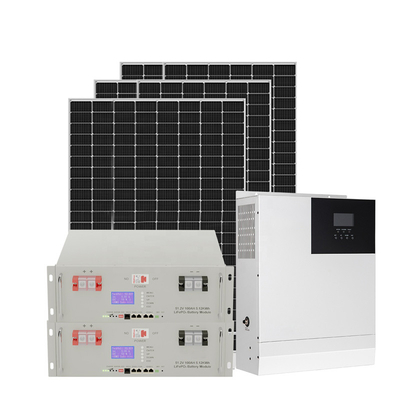

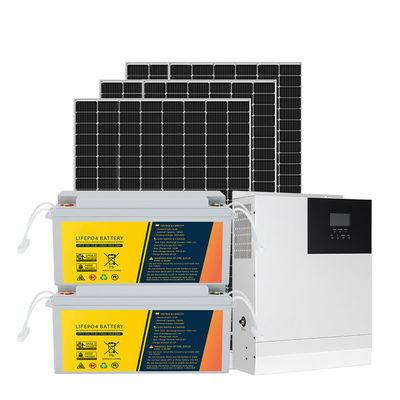

6KW 5KW Off Grid Solar Power System Photovoltaic Solar Power System With Battery

I'm Online Chat Now

6KW 5KW Off Grid Solar Power System Photovoltaic Solar Power System With Battery

6KW 5KW Off Grid Solar Power System Photovoltaic Solar Power System With Battery
6KW 5KW Off Grid Solar Power System Photovoltaic Solar Power System With Battery 6KW 5KW Off Grid Solar Power System Photovoltaic Solar Power System With Battery 6KW 5KW Off Grid Solar Power System Photovoltaic Solar Power System With Battery 6KW 5KW Off Grid Solar Power System Photovoltaic Solar Power System With Battery

Large Image :  6KW 5KW Off Grid Solar Power System Photovoltaic Solar Power System With Battery

Product Details:
Place of Origin: China
Brand Name: SUNFiD
Certification: CE,FCC,MSDS,ROHS,UN38.3
Model Number: OKSPS50
Payment & Shipping Terms:
Minimum Order Quantity: 50pcs
Price: Negotiable Price
Packaging Details: Hard Paper Carton with Foam From Top and Button
Delivery Time: 10-30 Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000pcs per month

6KW 5KW Off Grid Solar Power System Photovoltaic Solar Power System With Battery

Description
Name: 5KW 6KW Off-grid Solar Power System Power: 5KW 6KW
Controller Type: MPPT Load Power (W): 5KW 6KW Or Customized
Output Voltage (V): 110-250V(Adjustable) Mounting Type: Roof Mounting, Ground Mounting
High Light:

5KW Off Grid Solar Power System

,

6KW Off Grid Solar Power System

,

110v photovoltaic solar power system

Off Grid Solar Power System 5KW 6KW High Efficiency Photovoltaic Solar Power System With Battery


Product Description:

1. Solar Off-Grid System with High conversion efficiency, high-transmission rate,

2. Energy saving, environmental protection,

3. With advanced technology, strict quality control system,

4. Easy installation, safe operation, safe transportation



Installation & Application:



1. Half Cut Cells Monocrystalline Solar Panels 400W*12pcs or 15pcs
     - High efficiency A Grade monocrystal half cut cells

     - Anti-reflection tempered glass



2. 5KW /6KW off grid inverter with built-in MPPT

    - Wide Input 90V-280V

    - PV Input 450V-500V



3. Support LiFePo4/Lead-Acid Battery

    - Communicate with RS485/RS232/CAN

    - Work with 48V server rack lifepo4 batteries 2.4Kwh to 20Kwh



4. Accessories:  PV Cable, AC Cable, DC Switches, AC Breaker



5. PV Combiner Box:

     - Rated Voltage:60VDC/1000VDC,

     - Rated Current: 55A, 70A



Parameters:



Off-Grid Solar System
Components 5KW-HY 6KW-HY
AC Voltage 220 - 240V, 120V/240V 220 - 240V
Solar Panel 12 Pieces 15 Pieces
Off-Grid Inverter 5KW 6KW
Powerwall Battery 48V 10Kwh 48V 10Kwh
DC Combiner Box 1 Piece 1 Piece
PV Cable 4MM2 100 Meter 100 Meter
Brackets 1 Set 1 Set
MC4 Connector 20 Pieces 20Pieces
Installation Tool 1 Set 1 Set



FAQ:

Q1: How much power solar energy systems can you provide?

A1: Home solar energy systems 3-100KW, and we also provide higher wattage commercial and industrial solar power systems.

Q2: Can you offer On Grid and Off Grid solar power systems?
A2: Yes, we produce On Grid solar power systems, Off Grid solar power systems and also provide Hybrid solar power systems.

Q3: Who is your service customer?
A3: Individual client for house solar systems; distributor; importer and solar energy system installer.
