Product Details:
|
| Model Number: | OKLFP60A | Cycles: | More Than 3000 Times |
|---|---|---|---|
| Material: | Li-polymer | OEM/ODM: | Accepted |
| Model: | 3.2V60AH | Certification: | CE/UN38.3/MSDS |
| High Light: | 60Ah lithium iron phosphate prismatic cells,lithium iron phosphate prismatic cells 3.7V,12V lithium iron phosphate 3.2 v |
||

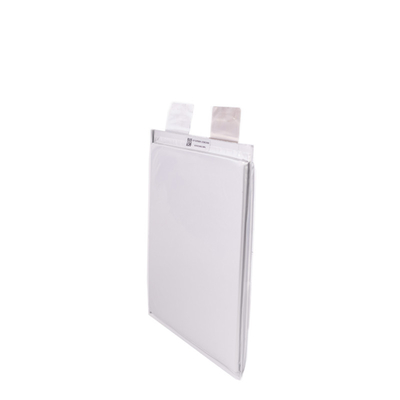

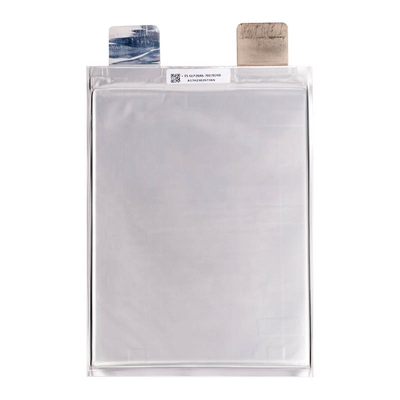

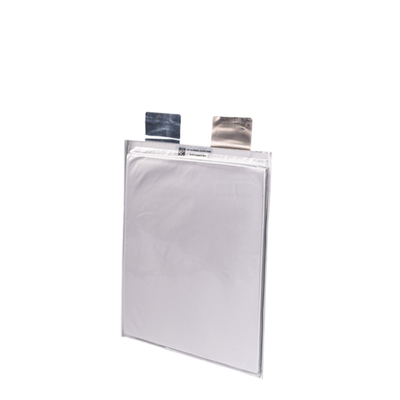

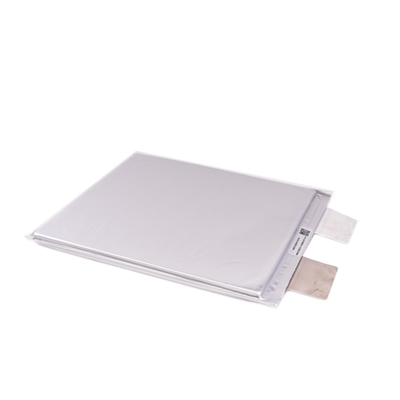

Lifepo4 Battery Cell 3.2V 60Ah Prismatic Rechargeable 3.7V 12V 32V 48V 100Ah 105Ah 120Ah 200Ah
Overview
Quick Details
Place of Origin: Guangdong, China
Brand Name: OKTANMAX
Model Number: OKLFP60A
Cycles: More than 3000 times
Material: Li-polymer
Warranty: 3 Years
OEM/ODM: Accepted
Package: box/wooden case
Model: 3.2V60AH
Standard Charge: 0.5C(30A)
Standard Discharge: 1C(60A)
Application: Solar energy
Certification: CE/UN38.3/MSDS
Supply Ability: 30000 Pack/Packs per Month
Packaging & Delivery
Packaging Details: 3.2V LiFePo4 Prismatic Rechargeable Lithium Iron Phosphate Batteries Cell 3.7V 12V 32V 48V 100Ah 105Ah 120Ah 200Ah
Package: box/wooden case
Port: Shenzhen
| Item | Condition/ Note | Specification |
| Nominal Voltage | Average | 3.2V |
| Capacity |
Std. charge/discharge |
Nominal 62.0Ah (Cnom) Minimum 60.0Ah (Cmin) |
|
Standard Charge |
Constant current Constant voltage End current(Cut off) |
0.2C(12000mA) 3.6V 0.01C(600mA) |
|
Standard Discharge |
Constant current End voltage(Cut off) |
0.3C(18A) 2.0V |
| Max. Charge Current | 0.5C(30A) | |
| Max. Discharge Current | ≤30sec | 1.0C(60A) |
| Operating Temperature |
Charge Discharge |
0 ~ 45℃ -20 ~ 55℃ |
| Storage Temperature |
3 month 1 year |
-10 ~ 45℃ 0 ~ 25℃ |
| Storage Humidity | 25-85﹪RH | |
| Weight | Approx. | Max. 1.5kg |
| Internal impedance | AC internal resistance in semi electric state | ≤1.6mΩ |
| Dimension |
Thickness Width Length |
max. 13mm(50%SOC) max. 190mm max. 316mm |
LiFePO4 Battery Cell 3.2V 10Ah 20Ah 25AH 30AH 40AH 50AH 60AH
* High quality LiFePO4 battery
* Accept customized products and provide whole energy system solution
* Factory based production offers good price choice
Application :Solar Energy Storage / UPS / Golf Cart / Boat / Lighting / Electric Devices
FAQ
Q: Are you trading company or manufacturer?
A: We are original factory.
Q: Can I have samples to test? And what is lead time for sample order?
A: Yes,we can supply samples,the leadtime for samples is 3-5 days.and buyer pay for sample cost and shipping cost.
Q: Do you provide after-sales serive?
A: Yes,the warranty is 12 months, if any quality problems on our side in this period, we can send new one as replacement.
Q: Do you accept OEM/ODM?
A: Yes,it is avaliable.
Q:Are you battery real capacity?
A: All of our battery cells with Grade A,100% new and real capacity.
Q: What kind of certificates do you have?
A: We can provide CE,ROHS,FCC,IEC62133,MSDS,UN38.3 if your order quantity is big.
Q:Do you have MOQ ?
A:No limited. Small order also welcome.More quantity has better price, we will check the best price for you.
Q: What is your term of payment?
A: We adopt T/T,Paypal,Alibaba payment way and so on.
