Product Details:
|
| Model Number: | OK1265130 | Type: | Lifepo4 Battery |
|---|---|---|---|
| Size: | 12*65*130mm | Capacity: | 10Ah |
| Nominal Voltage: | 3.2V | Cycle Life: | 1000Times |
| High Light: | 10000mAh lithium ferro phosphate cell,lithium ferro phosphate cell 3.2v,10Ah lithium phosphate cell |
||

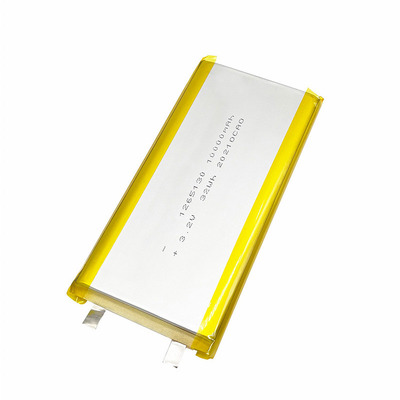

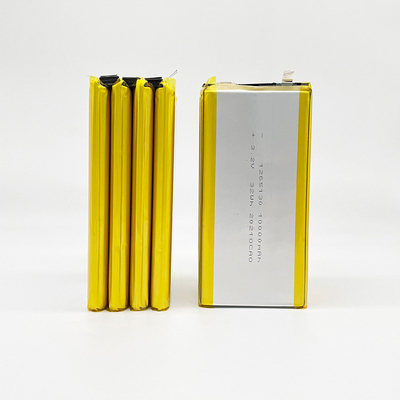

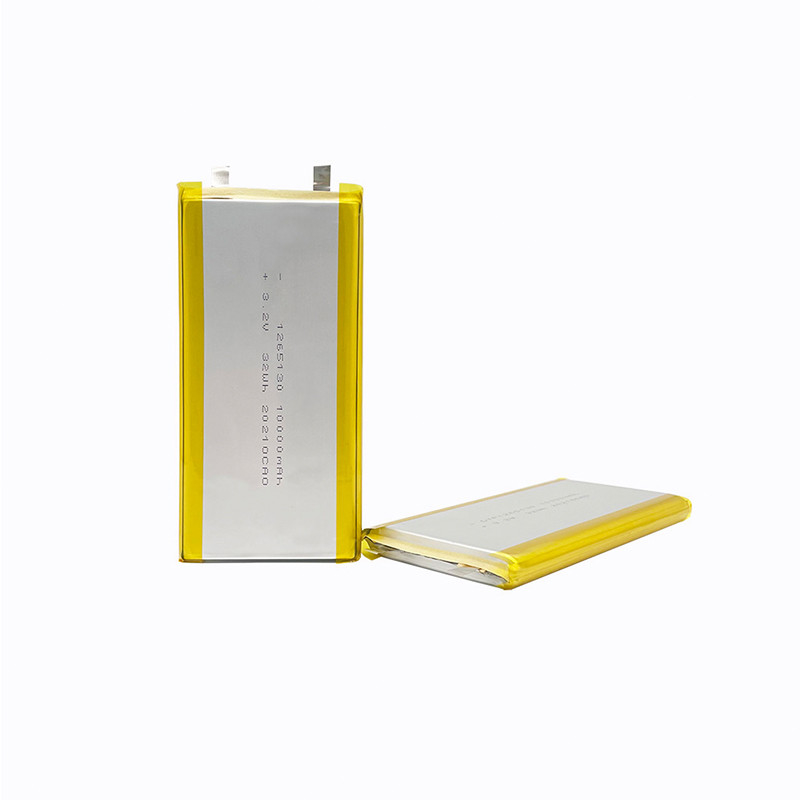

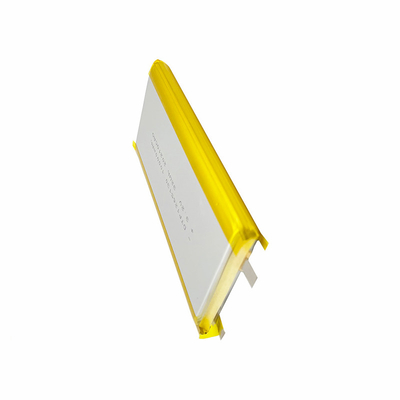

Lifepo4 Battery Cell High capacity lithium iron phosphate battery 3.2v 10000mAh Lifepo4 battery 10Ah 3.2v Lipo battery
Overview
Quick Details
Place of Origin: Guangdong, China
Brand Name: OKTANMAX
Model Number: OK1365130
Type: lifepo4 battery
Size: 12*65*130mm
Battery type: Lifepo4 Battery Cell
Capacity: 10ah
Certification: CE/ROSH/KC/MSDS/UN38.3, KC/CB/CE/ROHS
Nominal Voltage: 3.2v
Cycle life: 1000Times
Warranty: 1 Yers, 3months-1year
Color: silver
Features: Safety
Application: Power Tools, Home Appliances, Golf Carts, SUBMARINES, Electric Bicycles/Scooters, Electric Folklifts, electric vehicles, Electric Wheelchairs, Electric Power Systems, Solar Energy Storage Systems, Uninterruptible Power Supplies
Battery Size: 1265130
Weight: 200g
The charging ratio: 0.2c-0.5c
The discharge rate: 0.5c-1c
Packaging & Delivery
Selling Units: Single item
Single package size: 36X22X12 cm
Single gross weight: 5.000 kg
Package Type: carton box
High capacity lithium iron phosphate battery 3.2v 10000mAh Lifepo4 battery 10Ah 3.2v Lipo batteryy
Product Description
1.Product Parameter
| Items | Parameter | |
| Battery model | 1265130 | |
| Nominal voltage | 3.2V | |
| Minimum capacity | 10000mAh /10Ah | |
| Charging voltage | 3.65V | |
| Discharging cut-off voltage | 2.5V | |
| Standard charging | 0.2C /3.65V | |
| Max charging | 1.0C /3.65V | |
| Standard discharging | 0.2C/2.5V | |
| Max discharging | continuous discharge | 1.0C/2.5V |
| non-continuous discharge | 2.0C/2.5V | |
| Shipment voltage | ≥3.65V | |
| Battery pack impedance | ≤80mΩ | |
| Operating temperature | Charging: 0°C ~ 45°C | |
| Discharging: -20°C ~60°C | ||
|
Storage (At 50% SOC and specified temp, recoverable capacity in % vs time ) |
-10℃~25℃ | (12 months ≥85% ) |
| -10℃ ~45℃ | (6 months ≥85% ) | |
| -10℃~55℃ | (1 month ≥90% ) | |
| 20±5℃ is the recommended storage temperature | ||
| Visual Inspection |
There should not be any remarkable scratches, cracks, bolts, cauterization, deformations, swelling, leakage and so on the surface of the cell. |
|
| Reference standard | GB/T 18287-2013,IEC/EN61960 | |
The parameters of lithium polymer battery listed above are factory parameters of lithium battery. We can design
and develop products according to your specific needs.Therefore, if the current parameters do not meet your needs,
please send the specific requirements to the customer manager, and we will design lithium polymer batteries more suitable for your products.
Product advantage:
1. High energy density lithium polymer battery.
2. Long life cycle of charging & discharging, more than 500 cycles.
3. Enhanced safety with Japan IC & MOS protectors.
4. Thinner design & lighter weight with aluminum-plastic composite.
5. OEM & ODM services for special size of lithium polymer battery.
6. Easy to assemble with mounted connectors (Molex, Tyco and so on).
7. Rigorous testing to ensure the quality of all lithium polymer batteries.
8. Most inportant: competitive price.
9. Dual IC chips, that can anti-shortcircuit, anti-overcharger, anti-overcurrent, anti-overload.
Application:
· Provide power to electronic items such as laptops, tablets, GPS and on-board mobile navigation systems.
· Help run digital equipment such as cell phones, cameras and other products.
· Deliver reliable power to various types of portable and mobile devices.
· Charge wearable products such as smart watches and exercise bands.
