Product Details:
|
| Terminal: | Copper | Color: | Black, White |
|---|---|---|---|
| Warranty: | 1-3years | Design Life: | 10 Years |
| Material: | ABS | Voltage: | 12.8V |
| Capacity: | 200Ah | ||
| High Light: | Deep Cycle Lifepo4 SLA Replacement,200Ah Lifepo4 SLA Replacement,12.8V lithium ion deep cycle battery |
||

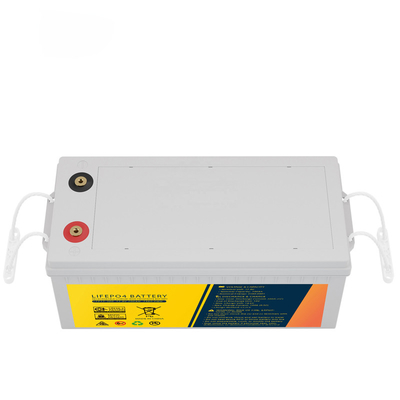

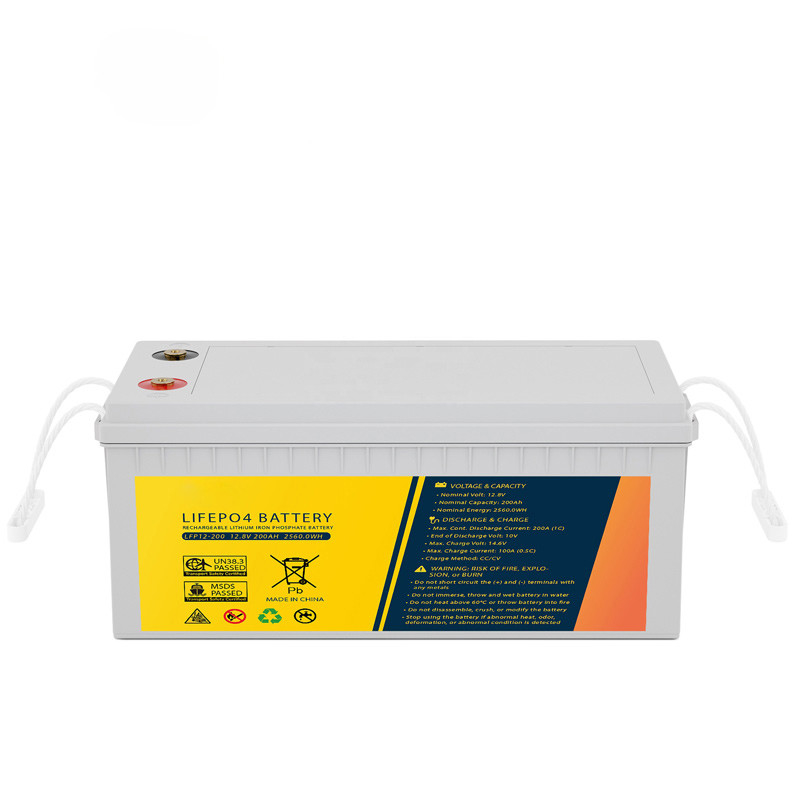

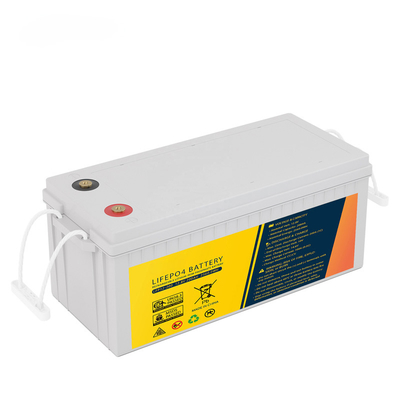

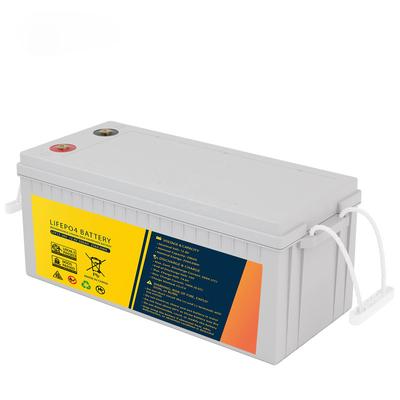

LifePO4 SLA Replacement 12.8V200Ah Deep cycle high performance Battery For RV/Boat
Description:
Built-in Battery Management System (BMS) protects the cells against excessively high or low voltages,
high currents, short circuits, and excessive heat or cold.
Batter cell: we use the new grade A LifePO4 battery Prismatic cells, the life expectancy of our lifePO4 battery is capable of cycle 2000 times at 80%, 4000 times 100% . Adopt advance laser spot welding technology, safe and reliable
Application:
1. Recreational Vehicles:4WDs, Motorised Golf carts, Mobility Scooters
2. Marine: Boats, Cruisers, Kayaks,Trimarans, Fishing Vessels
3. Commercial: Tourist boats, Mobile classrooms,Scooter, Trailer
| Function Parameter | |
| Norminal Capacity | 200Ah |
| Norminal Voltage | 12.8V (Customized 24V 36V 48V) |
| Internal Resistance | ≤22mΩ |
| Energy | 2560wh |
| Months Self Discharge | <3% |
| Charge Voltage | 14.6V±0.2V |
| Dimension | 522*244*240mm Or Customized |
| Allowed Max. Charge Current | 50Adc |
| 14.6V | |
| Discharge Data | |
| Continuous Discharge Current | 100A |
| Allowed Max. discharge current | 100A (option:100Adc) |
| Charge Temperature | 0℃ to 45℃ (32℉ to 113℉) @60±25% Relative Humidity |
| Discharge Temperature | -20℃ to 60℃ (-4℉ to 140℉) @60±25% Relative Humidity |
| Storage Temperature | 0℃ to 40℃ (32℉ to 104℉) @60±25% Relative Humidity |
Note: whenever connecting lithium batteries in parallel and/or series, always use the very same batteries of the same
manufacturer, preferably from the same batch, and connect them as recommended.
