Product Details:
|
| Item Name: | 450W Frameless Solar Panel Monocrystalline | Solar Cell Size: | 182mmx91mm |
|---|---|---|---|
| Solar Module Dimension: | 1898×1133×5mm | Max. Power: | 450W |
| Connector: | MC 4 Compatible Connector | Application: | BSS EBSS Home Energy Storage System |
| High Light: | 450W Frameless Solar Panel Monocrystalline,Frameless 450W Monocrystalline Solar Panel,Bifacial Solar Panel Monocrystalline |
||

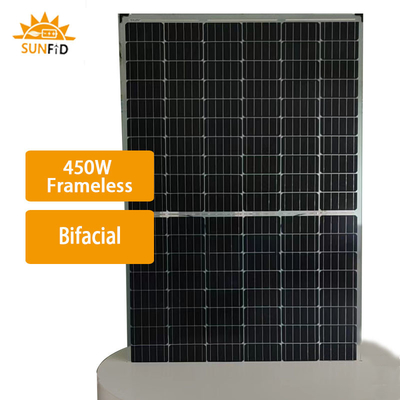

Residential Energy Storage System 450W Frameless Monocrystalline Solar Panel Bifacial 10BB

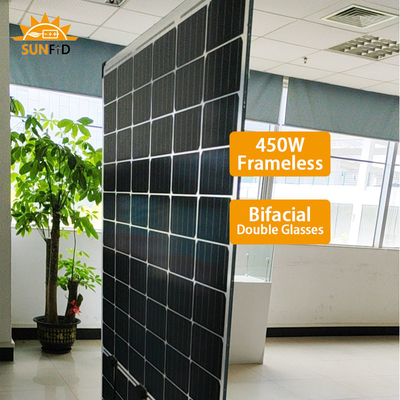

Residential Energy Storage System 450W Frameless Monocrystalline Solar Panel Bifacial Double Glasses
450W Frameless Solar Panel Product Description
1. An 12-month product warranty and 25-years power warranty and lifetime warm-hearted service for you
2. 10BB is combined with 182mm cell technology, which has more reliable performance, effectively reduces the power loss caused by shadow occlusion, and achieves higher power output.
3. It is suitable for various complex environment areas such as high temperature, high humidity and large temperature difference
4. The 182*91mm cells are cut into 6*20 pieces, giving the modules higher performance. Double-sided power generation is more suitable for the installation of large-scale ground power stations and industrial and commercial cement roof systems.
450W Bifacial Solar Panels Application:
1. Suitable for multiple scenarios. Compatible with on-grid and off-grid inverters, powering the house or for outdoor use.
2. SOLAR TRANSPORTATION
3. solar water heating, solar heating, solar ventilation
Mono Solar Panel Configuration:
| ELECTRICAL SPECIFICATION (STC) | ||
| Max-power | 400 | |
| Power Tolerance | 0~+6W | |
| Voltage at Pmax (Vmp) | 30.8 | |
| Current at Pmax (Imp) | 12.99 | |
| Open-Circuit Voltage(Voc) | 37.94 | |
| Short-Circuit Current (lsc) | 13.8 | |
| Module Efficiency(%) | 20.48 | |
| No. of Bypass Diodes(pcs.) | 3 | |
| Max. Series Fuse(A) | 25A | |
| Operating Temperature | - 45~+85 ℃ | |
| Max Static Load | 5400P | |
| Max-System Voltage(VDC) | 1500 VDC(IEC) | |
| Fire Rating | Class C | |
|
STC: Irradiancec 1000W/m2, Cell Temperature 25 ℃,Air Mass 1.5 |
||
| MECHANICAL SPECIFICATION | ||
| Solar cells | Mono Crystalline 182×91 mm | |
| 120 Cell (6×20) — 10BB | ||
| Module Dimension(mm) | 1898×1133×5 | |
| Front Glass | 26kg | |
| Construction Encapsulation: EVA | 2.0mm High Transmission.LowlronTempered Glass |
|
FAQ:
Q: Are you a manufacturer of trader?
A: We are a manufacturer of solar system kits, such as energy storage battery, solar inverters and solar panels.
Q: Can i use an AGM type battery for these 440W Solar Panels?
A: Yes. You can set the battery type to AGM according to the instructions. The battery types compatible with are as follows
SLA(lead-acid battery), GEL Battery, AGM Battery, Lithium-ion Battery, Ternary Lithium Battery
Q: How to assure good quality products?
A: 100% EL test before and after lamination, and finishedproducts EL test, providing higher quality assurance
Q: Is it possible to OEM customize the solar panels and the packaging with our logos?
A: Yes, OEM/customizing is warmly welcome for bulk orders. Just tell us your idea!
