Product Details:
|
| Solar Cell: | PERC Half Cell Mono-crystalline | Solar Cell Size: | 182mmx91mm 108Cell |
|---|---|---|---|
| Solar Glass: | 2.0mm High Transmission | Application: | Aolar System For Home |
| Max. Static Load: | 5400P | Open-Circuit Voltage: | 37.09-37.29V |
| Highlight: | Residential Energy Storage System 405W,Residential Energy Storage System 415W,PERC Half Cell Solar Storage System |
||

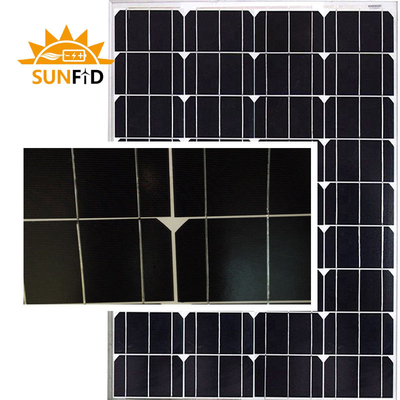

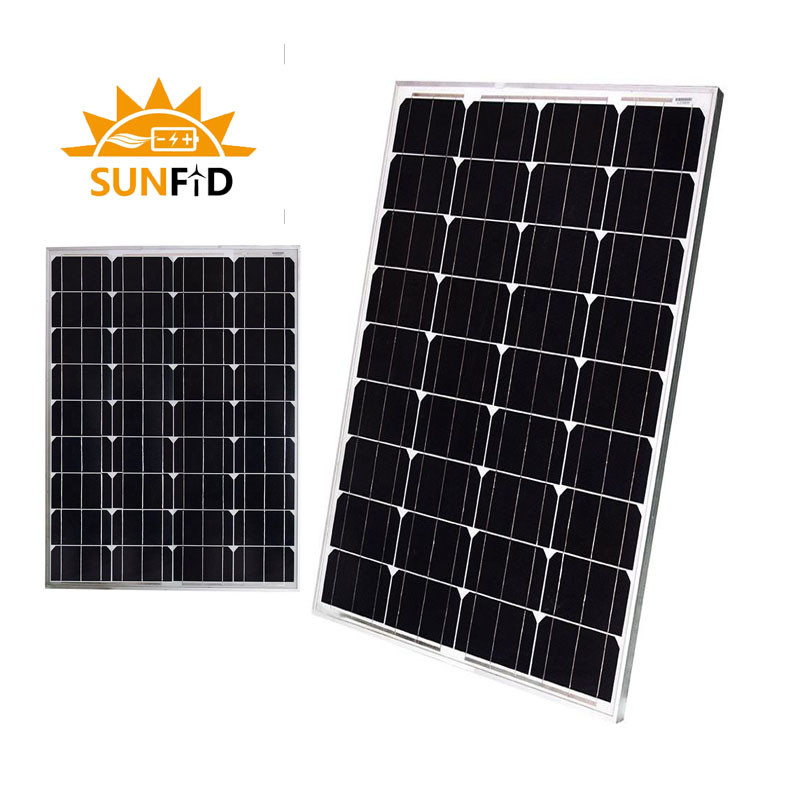

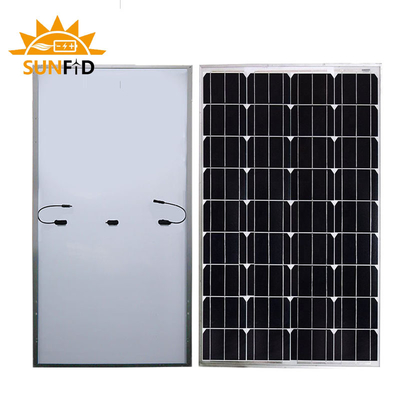

Residential Energy Storage System 405W 415W Monocrystalline Solar Panel PERC Half Cell Solar Storage System
Solar Panel 405W 415W 410W Description
1. An 12-month product warranty
2. 25-years performance warrant + 0.55%Annual Degradation for Perc Mono-Module.
3. Corrosion-resistant aluminum material can withstand the changing outdoor environment and prolong its service life.
4. The front adopts a high-density battery arrangement, which makes it more beautiful in appearance. Maximum system voltage:1500VDC
405W 410W PV Panels Application:
Suitable for multiple scenarios such as: off grid system, home solar power system. Compatible with on-grid solar inverter and off grid solar inverter , powering the house or for outdoor use.
Mono Solar Panel System Configuration:
| ELECTRICAL SPECIFICATION (STC) | ||||||
| Max-power | 405 | 410 | 415 | |||
| Power Tolerance | 0~+6W | |||||
| Voltage at Pmax (Vmp) | 30.93 | 31.04 | 31.2 | |||
| Current at Pmax (Imp) | 13.10 | 13.21 | 13.3 | |||
| Open-Circuit Voltage(Voc) | 37.09 | 37.19 | 37.29 | |||
| Short-Circuit Current (lsc) | 13.98 | 14.07 | 14.16 | |||
| Module Efficiency(%) | 20.70 | 20.9 | 21.2 | |||
| No. of Bypass Diodes(pcs.) | 3 | |||||
| Max. Series Fuse(A) | 25A | |||||
| Operating Temperature | - 45~+85 ℃ | |||||
| Max Static Load | 5400P | |||||
| Max-System Voltage(VDC) | 1500 VDC(IEC) | |||||
| Fire Rating | Class C | |||||
| STC: Irradiancec 1000W/m2, Cell Temperature 25 ℃,Air Mass 1.5 | ||||||
| MECHANICAL SPECIFICATION | ||||||
| Solar cells | Mono Crystalline 182×91 mm | |||||
| 108 Cell (6×18) — 10BB | ||||||
| Module Dimension(mm) | 1722×1134×35 | |||||
| Weight | 22.0 kg | |||||
| Front Glass | 2.0mm High Transmission.LowlronTempered Glass | |||||
| Construction Encapsulation: EVA | EVA /POE | |||||
| Back Glass | White | |||||
| Junction Box | IP68 Rated | |||||
| Connector | MC4/MC4 equivalent | |||||
| Calble | Φ=4mm2, L=300±5mm | |||||
FAQ:
Q: Could we import whoe solar energy system kits?
A: Yes. We are a manufacturer of solar system kits, such as energy storage battery, solar inverters and solar panels. Suitable for solar power generator systems
Q: How do you assure good quality products?
A: All of our solar panels 100% EL test before and after lamination, and finished products EL test, providing higher quality assurance.
Q: Is it possible to OEM customize the solar panels and the packaging with our logos?
A: Yes, OEM/customizing is warmly welcome for bulk orders. Just tell us your idea!
